that offers warmth in winter and coolness in summer, thus saving energy and paying off our money.
Energy saving
& Economy
We cannot intervene in the insulation afterwards.
To avoid unpleasant surprises, we should seek the advice of
of experts on insulators.
The choice of insulation materials is considered particularly critical.
An important factor in the selection of the most suitable material is
ο Thermal conductivity coefficient "λ", which characterizes each product, and which as long as
smaller it is the better thermal insulation properties it has.
The cost of insulation materials of a building statistically it is 2% of the total cost of theConstruction. In the construction phase insulation is cheap, while when the house is finished it becomes more expensive and difficult.
Expanded polystyrene (EPS) insulation has the best price-performance ratio.
The new Community Directive 2002/91 EC Energy Performance Directive (EPD) of the European Parliament and the Council of 16.12.2002 requires mandatory Energy Performance Certification of all buildings in all procedures (construction, sale, rental) in old and new buildings. Each building will therefore obtain its own Energy Performance Certificate.
The new EN 13163:2015 standard, in contrast to the old ELOT 450, protects the consumer from poor quality Expanded Polystyrene (EPS) products, known until now as "Styrofoam", in which there was no distinction as far as its specifications were concerned, it was simply referred to in Kgr/m3. According to the old classification (ELOT 450 standard), it was divided into 5 basic categories with the only criterion being density: 15 / 20 / 25 / 25 / 30 / 35 Kgr/m3, without any reference to the thermal insulation properties of each category.
The new EN 13163:2015 standard classifies and categorizes Expanded Polystyrene (EPS) according to the material's performance in terms of strength (such as compression, bending, tensile), technical characteristics (such as thermal conductivity coefficient λ) and tolerances depending on use (such as dimensions, flatness), defining 16 basic categories. Each producer checks compliance with the value limits set by the standard.
Any Product now has its own Id., based on the techniques of Properties, marking as well as a feature Color, for easy Recognition by the customer.

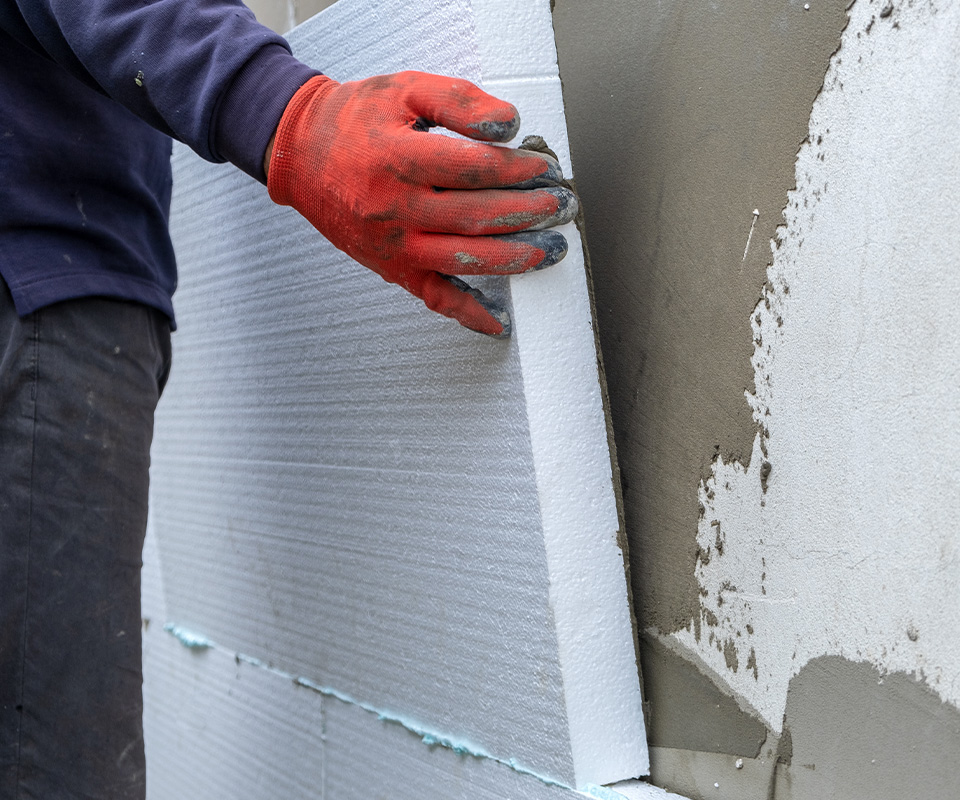

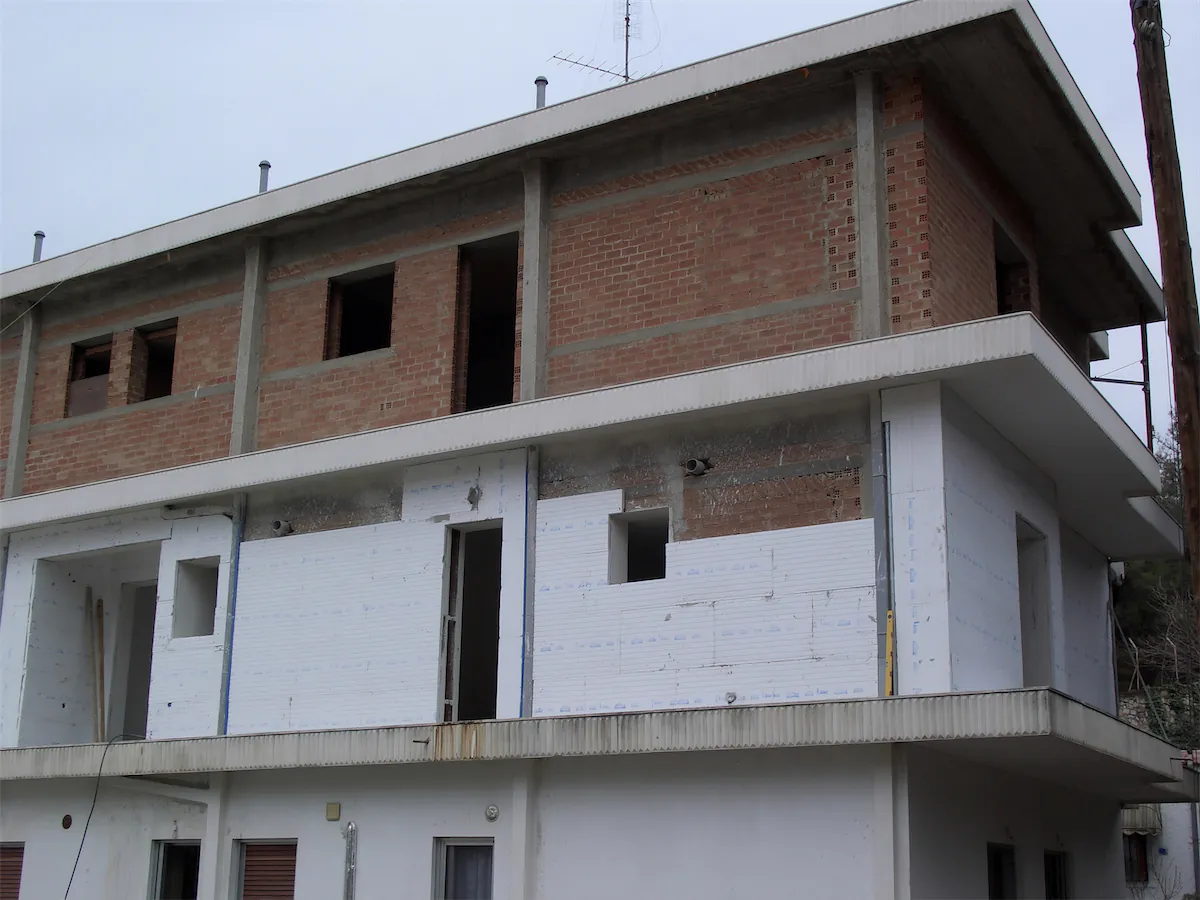

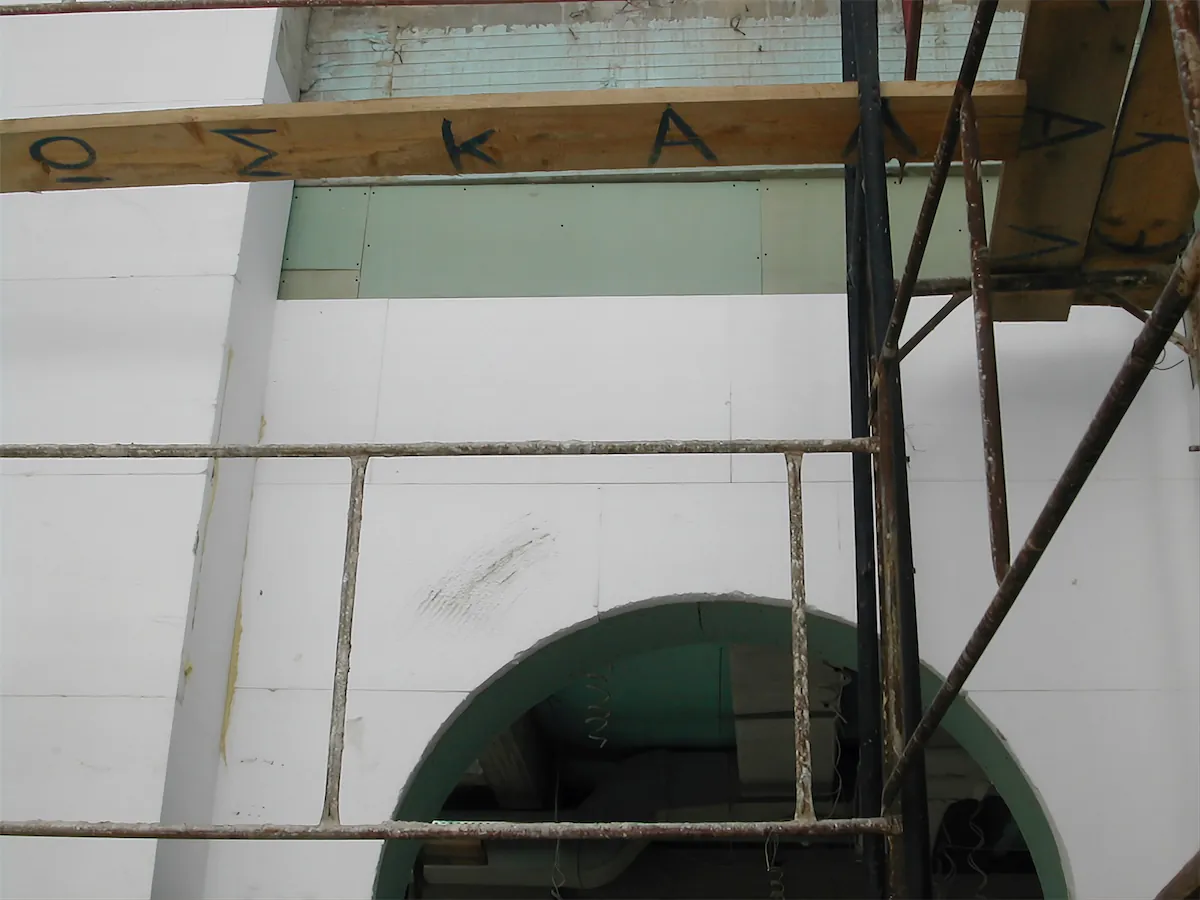

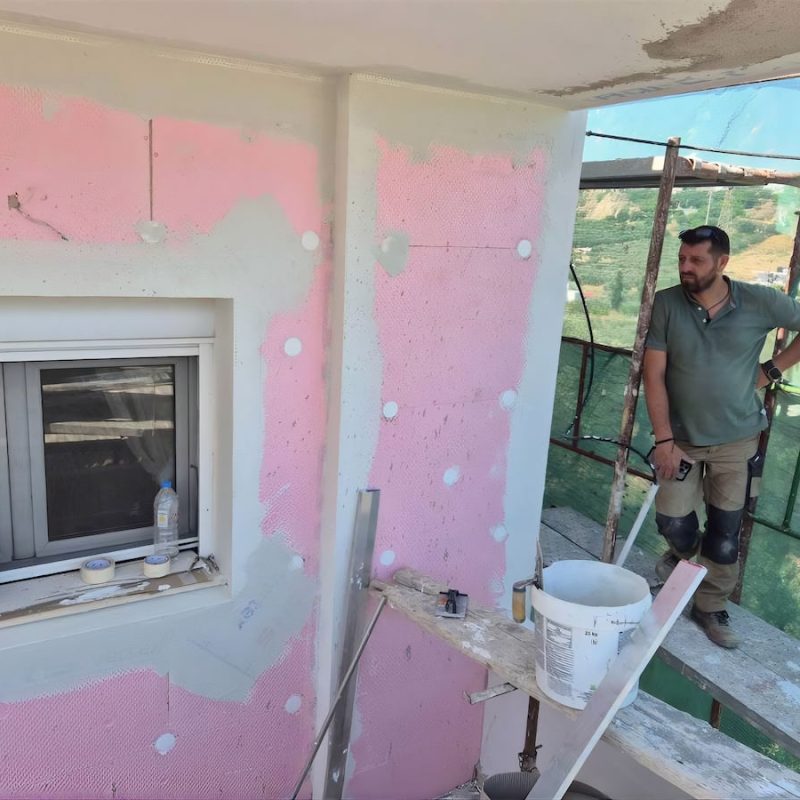

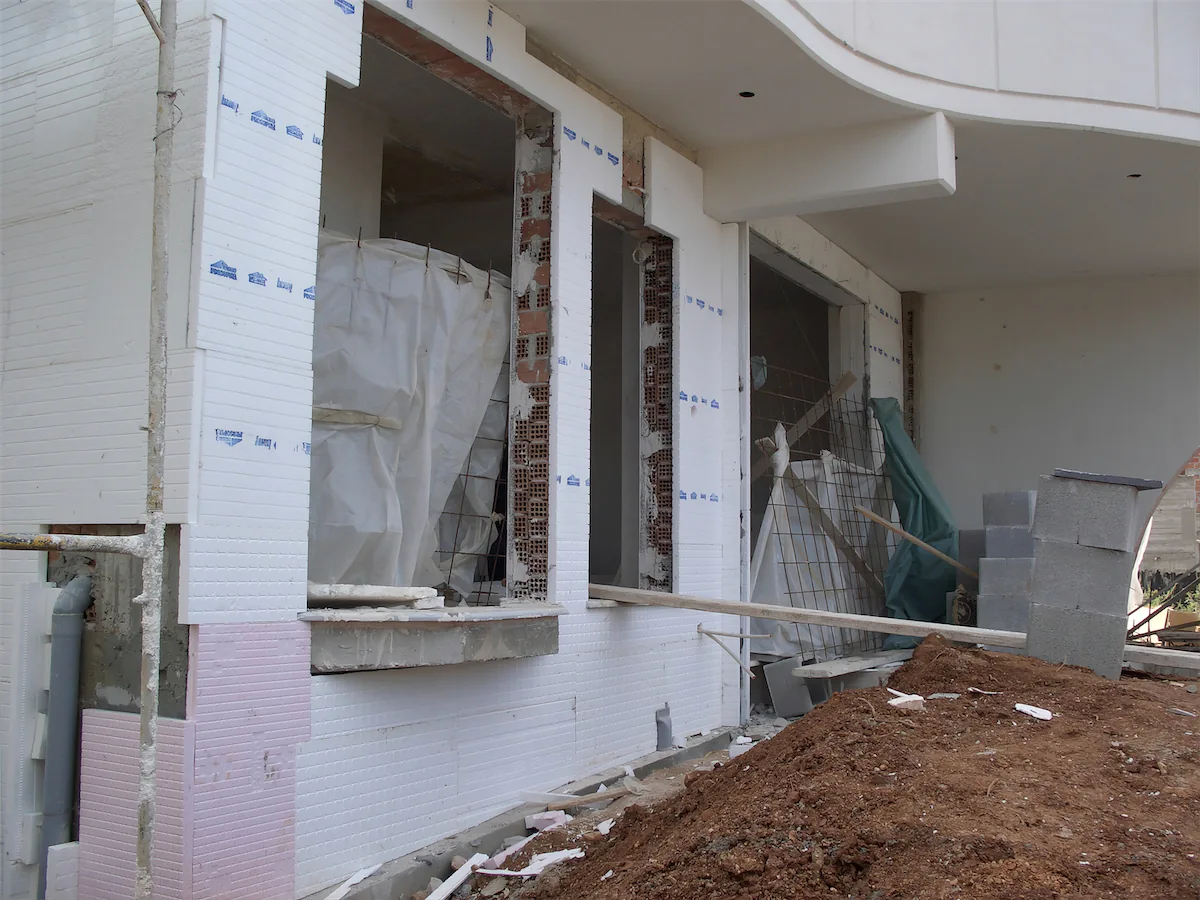

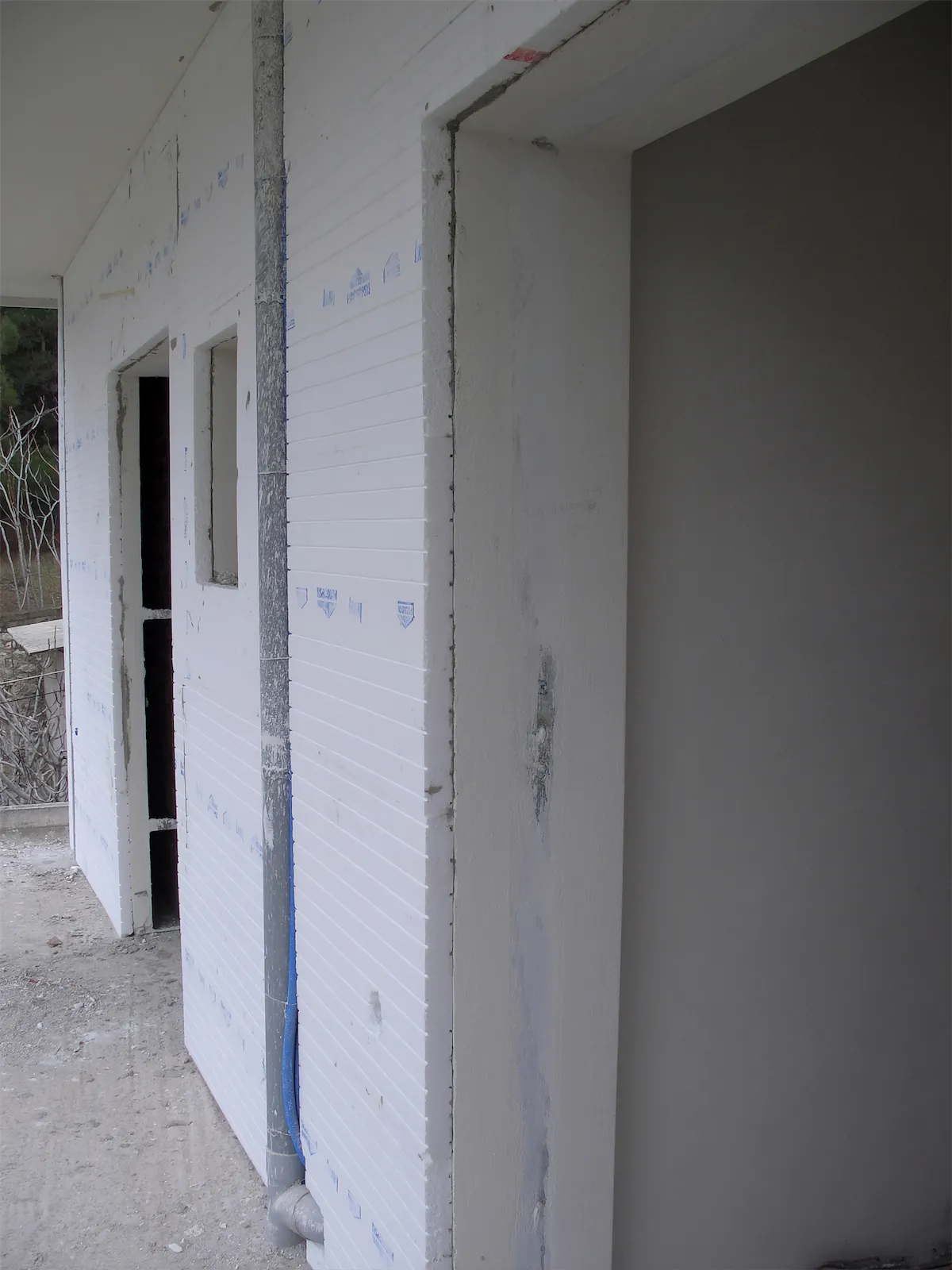

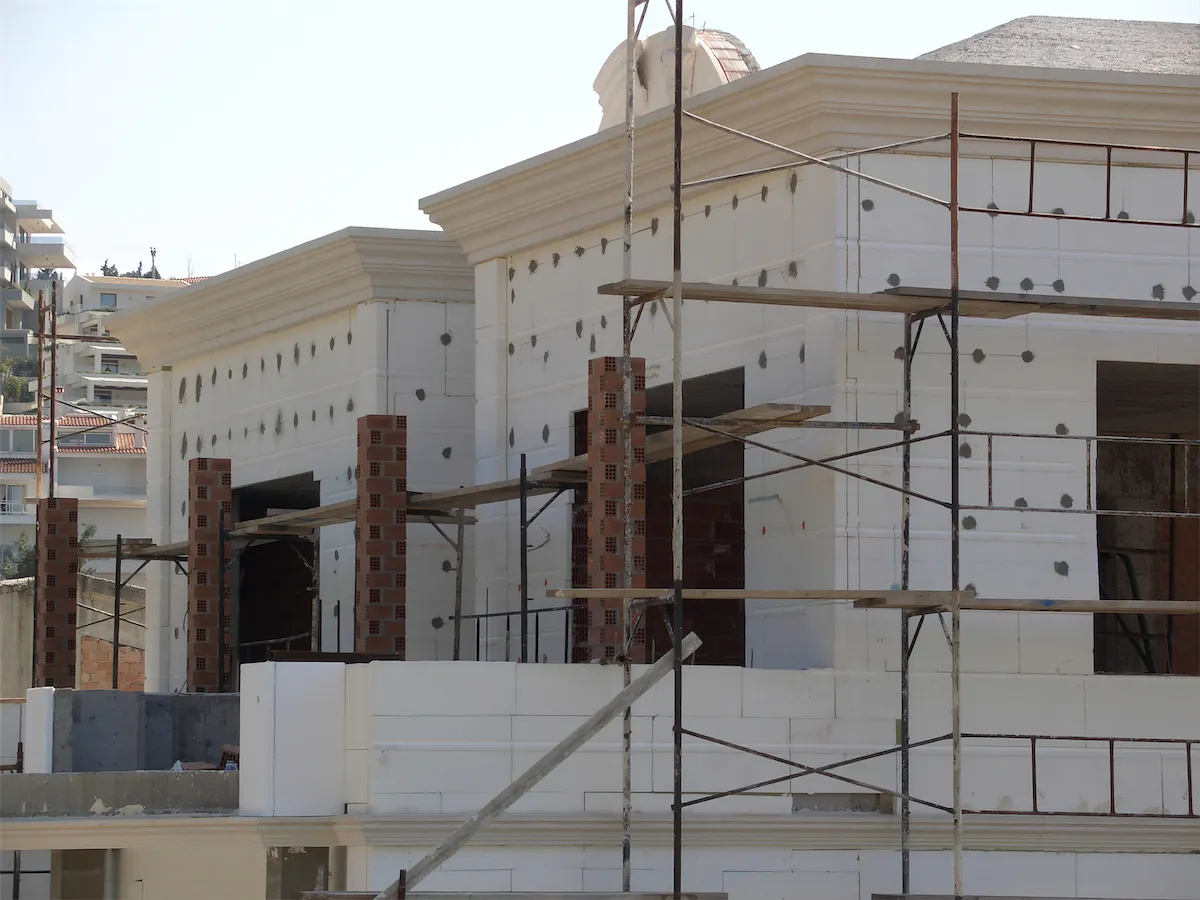

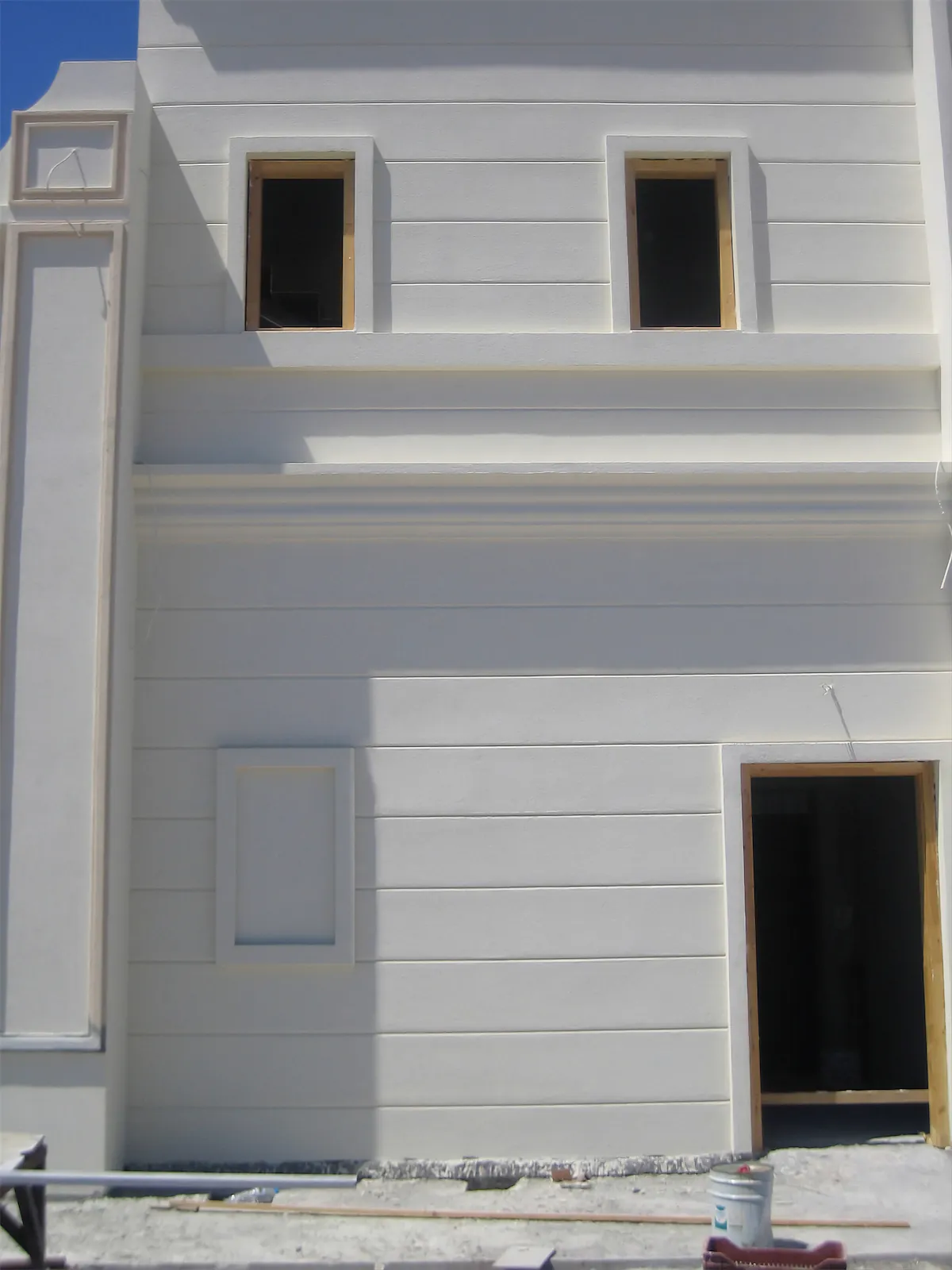

Certified Bright White Self-extinguishing Expanded Polystyrene (EPS)
The THP group is a new subgroup of EPS Expanded Polystyrene products which was created exclusively for the application of External Thermal Insulation of Buildings which is also called Thermoprosposing and from this word the initials THP are derived. All THP group products are naturally self-extinguishing, produced from 28-day curing blocks for maximum dimensional stability under any temperature variation they are subjected to on a wall, cut to the strictest dimensional tolerances in 3 dimensions, but also in squareness and flatness, and continuously tested for tensile strength perpendicular to the surfaces and flexural strength in the company's laboratory. The basic EPS products addressed to external thermal insulation are certified beyond the main EPS standard EN 13163 and based on the requirements of EN 13499 and EAD 0404 standards governing the application of external thermal insulation through the German certification body GSH.
The types of ISOPOR THP are used by most companies that have in the Greek market External Thermal Insulation Systems with Expanded Polystyrene EPS and are the most appropriate thermal insulation solution. The application of external thermal insulation is the best thermal insulation solution in a building and especially in existing buildings since it is one of the minimum solutions that can be applied after the completion of the construction. Expanded polystyrene EPS is used in 9 out of 10 external thermal insulation applications instead of other thermal insulation materials according to data from the European Association of External Thermal Insulation Systems Companies (EAE).
Certified Bright White Self-extinguishing Expanded Polystyrene (EPS)
Our company, in the context of compliance with the European Directives (CPD) concerning the production and marketing of Building Products, has decided to market the range of insulation products under the name isopor and CE marking.These products are produced according to the strictest European specifications (EN 13163:2015) and are the most advantageous solution, from a QUALITY and ECONOMIC point of view, in modern construction. They are produced in dimensions of 2.50 x 0.60m, 1.25 x 0.60m, 1.00 x 0.60m and 2.00 x 1.00m for thermal insulation applications and seismic joints and in any other dimension on request.

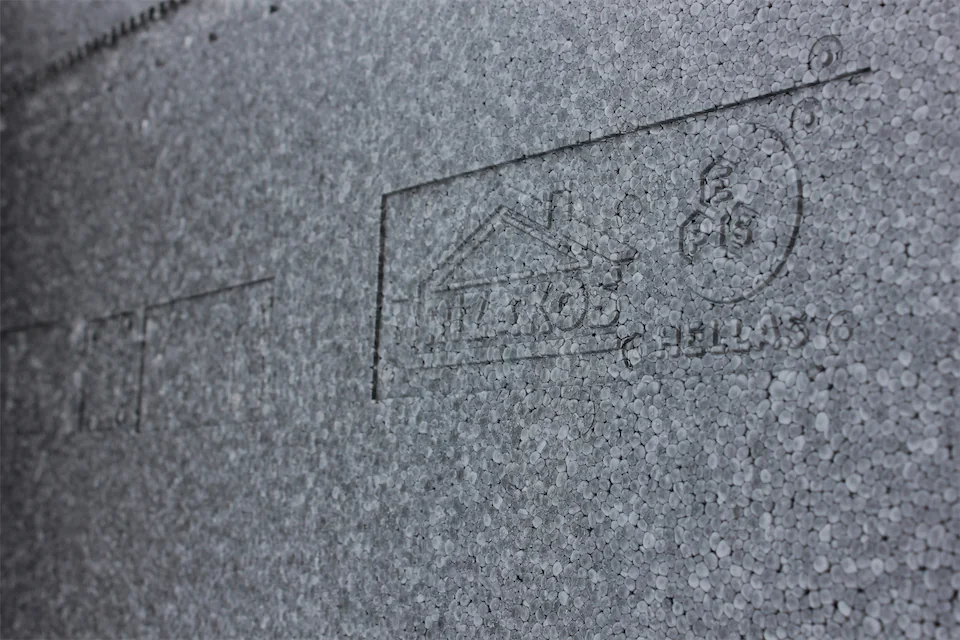

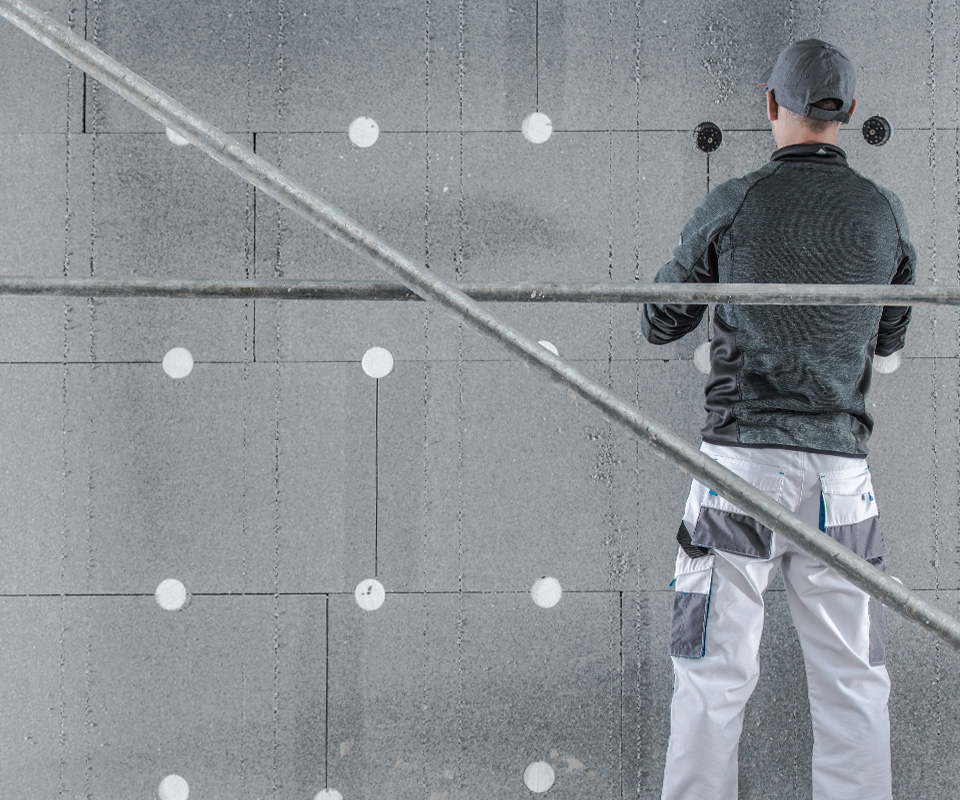

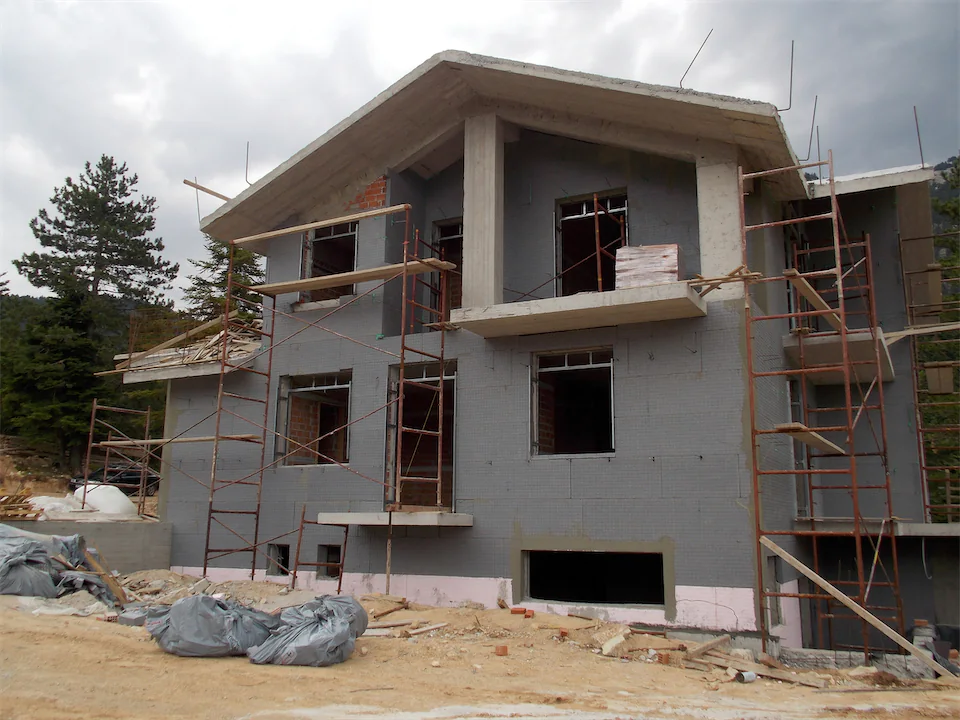

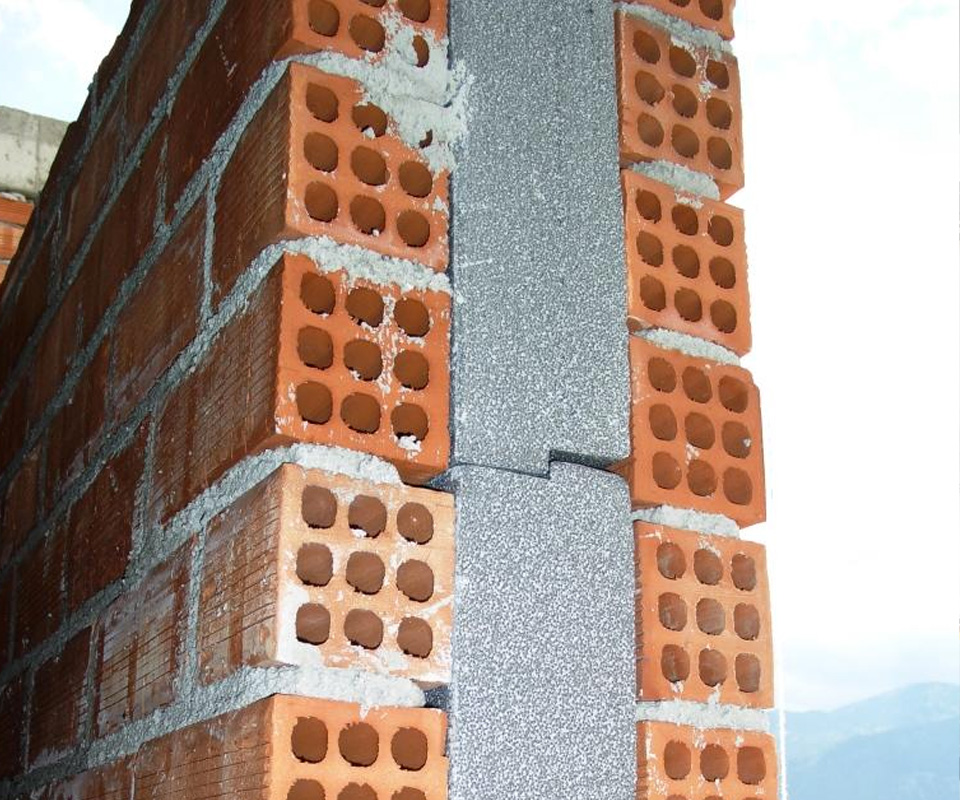

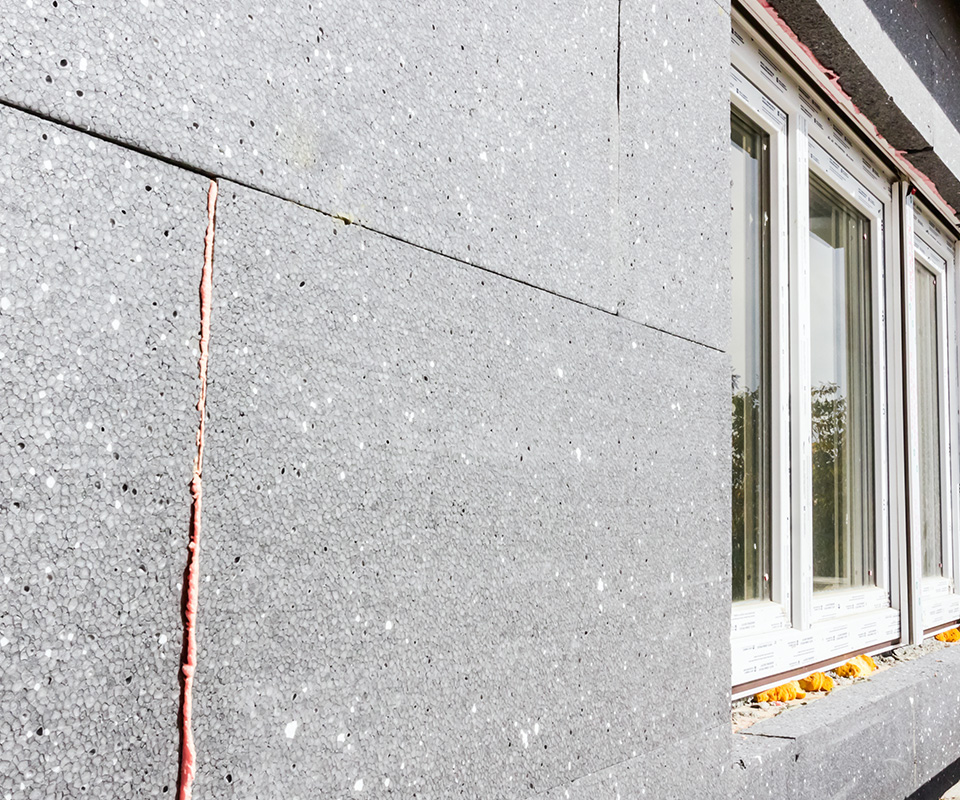

NEOPOR is the name of the graphitic expandable polystyrene and is a research product of BASF. By adding graphite to the mass of EPS, it acquires an ashy grey colour and improves the coefficient of thermal conductivity λ by 20%.

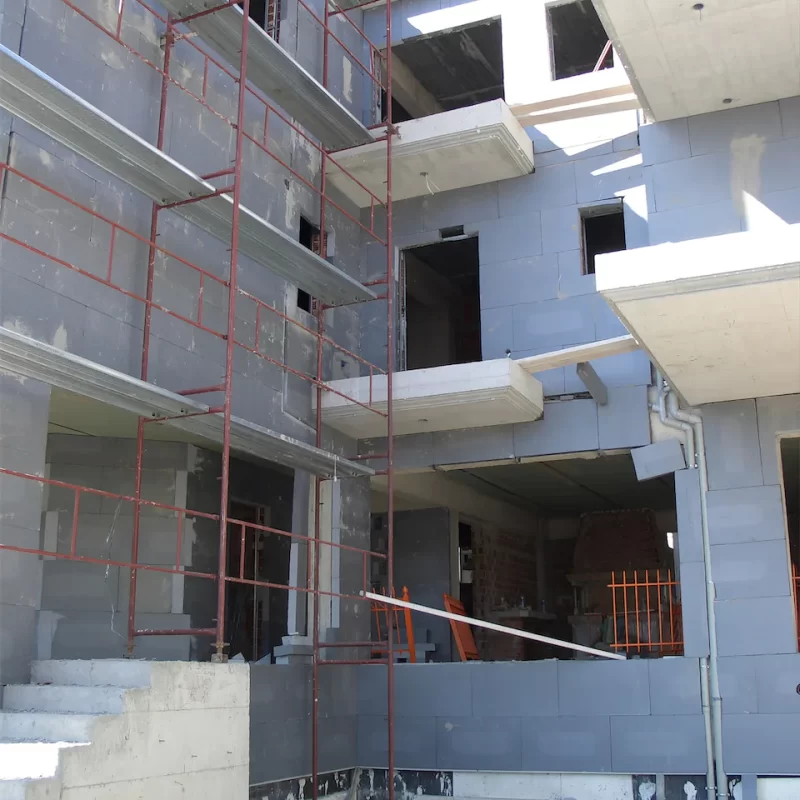

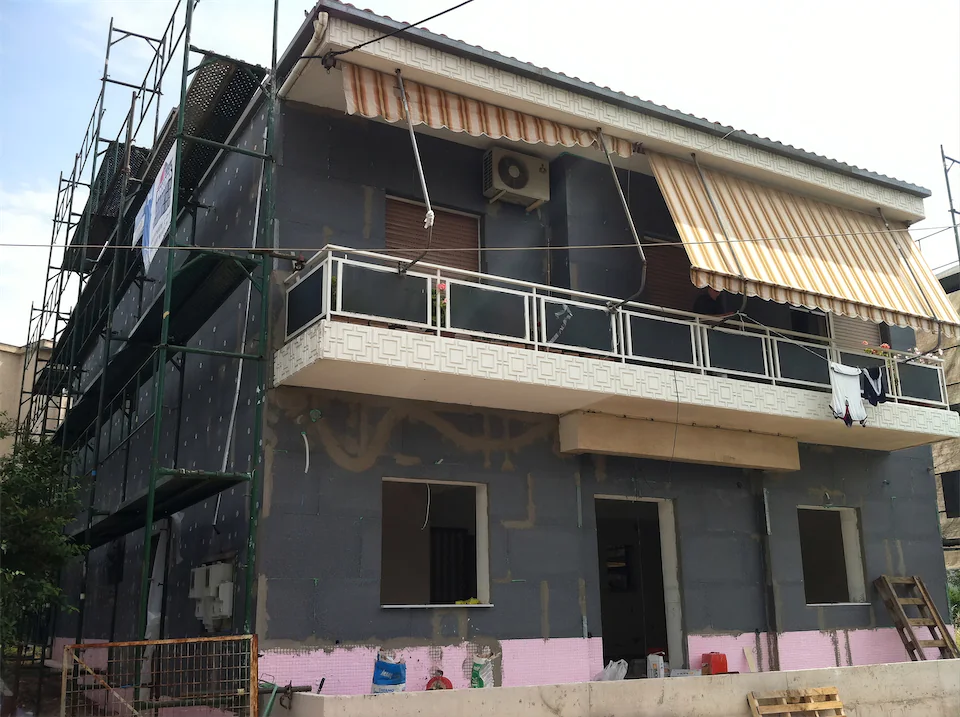

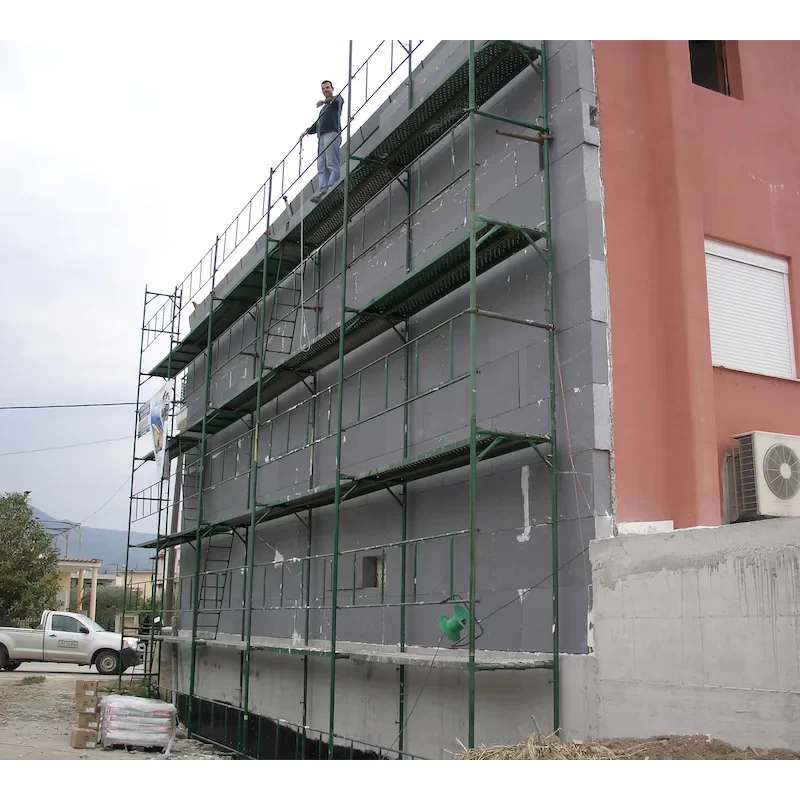

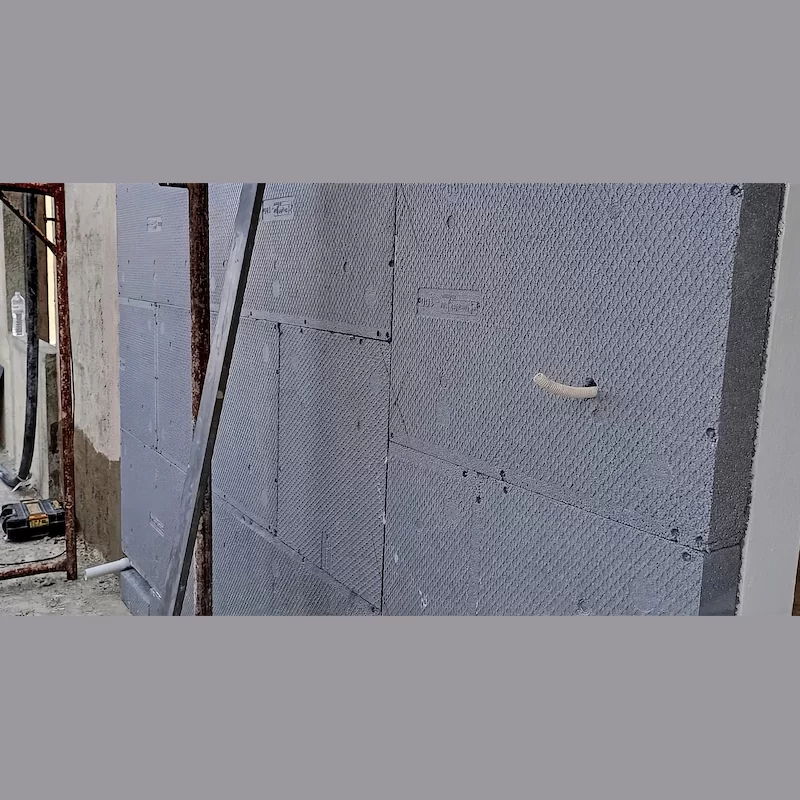

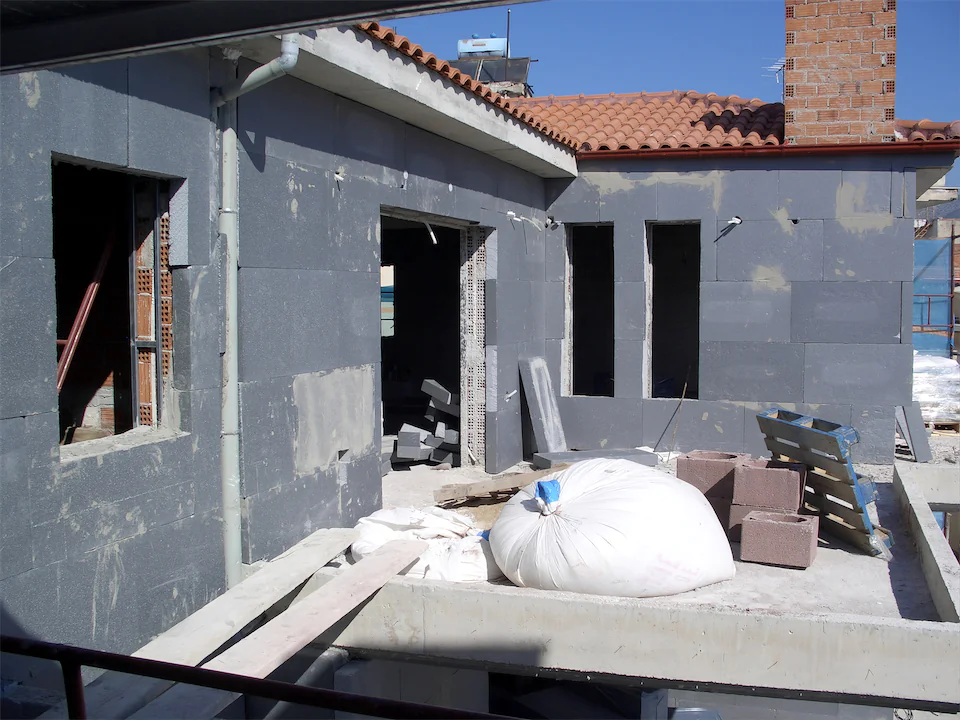

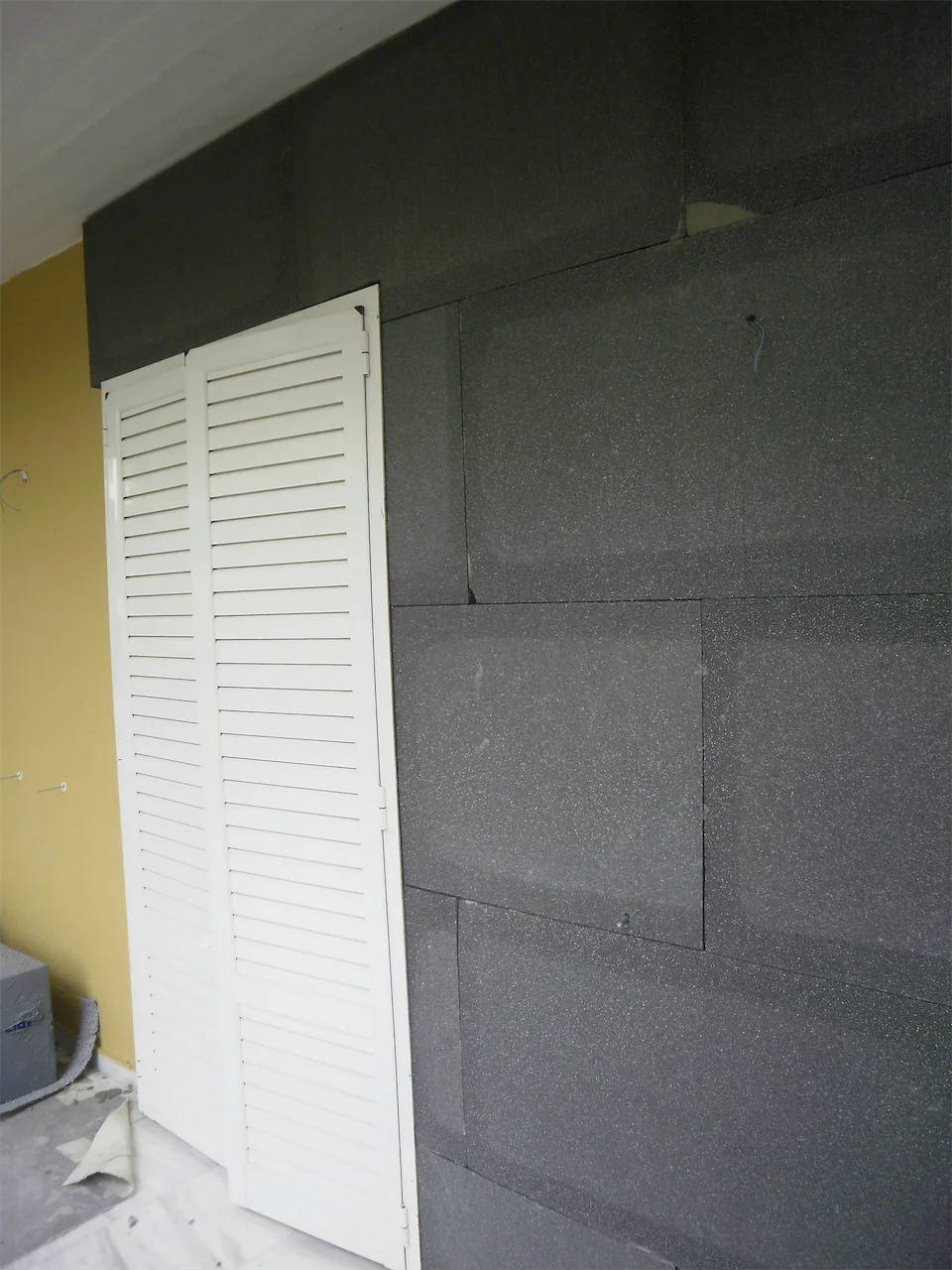

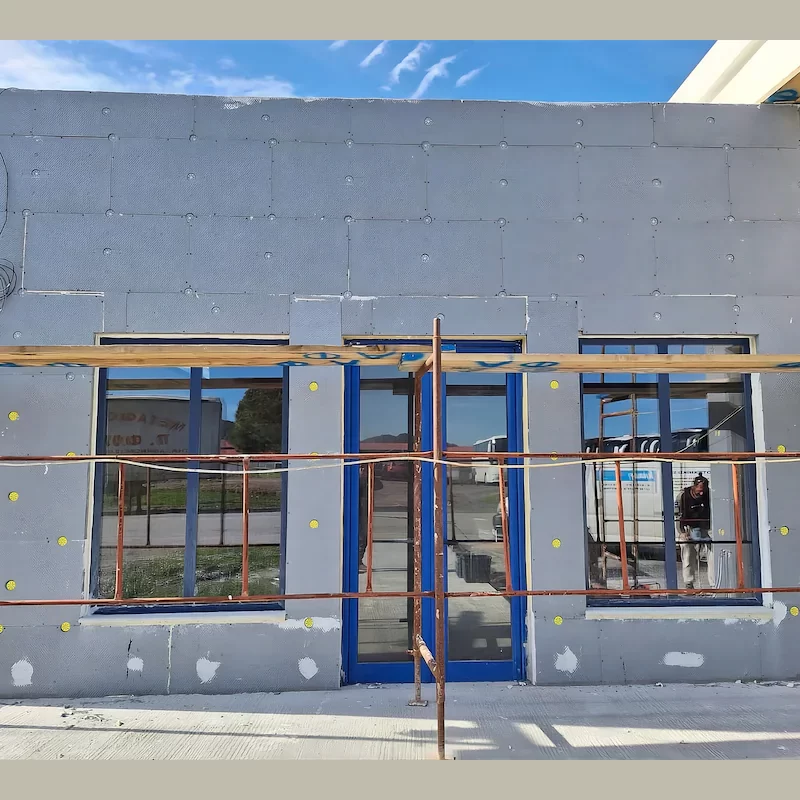

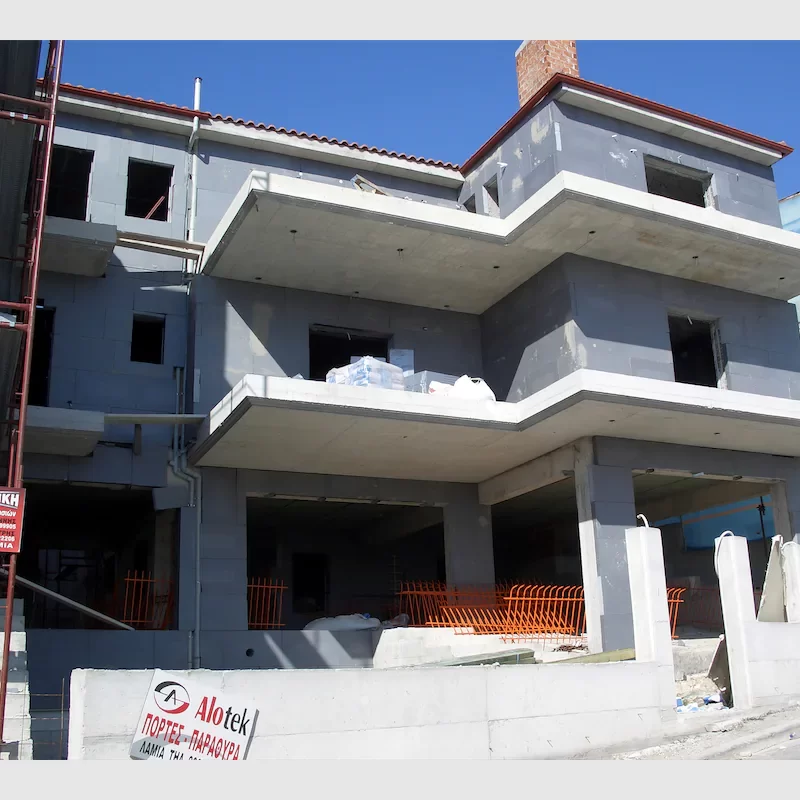

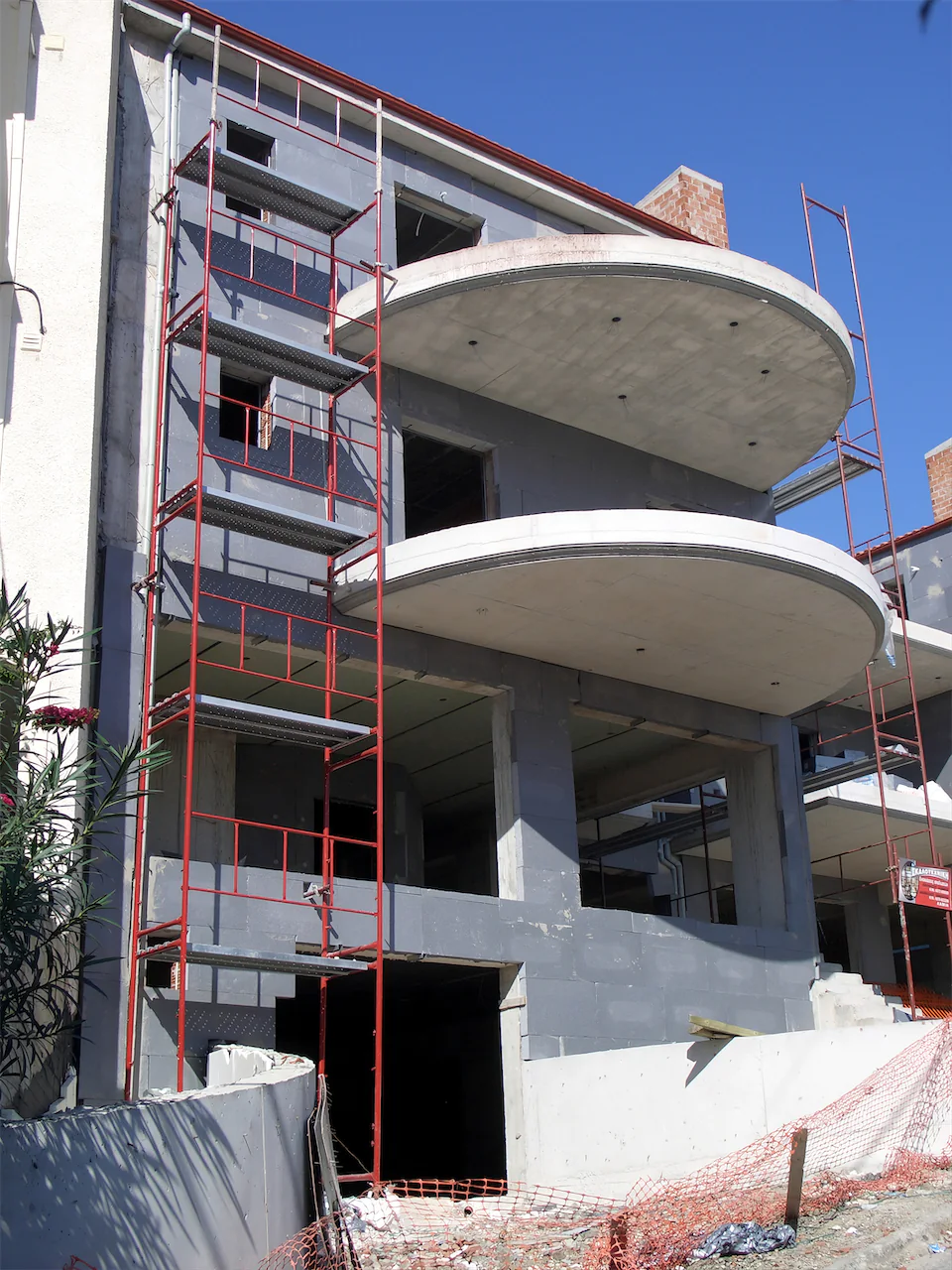

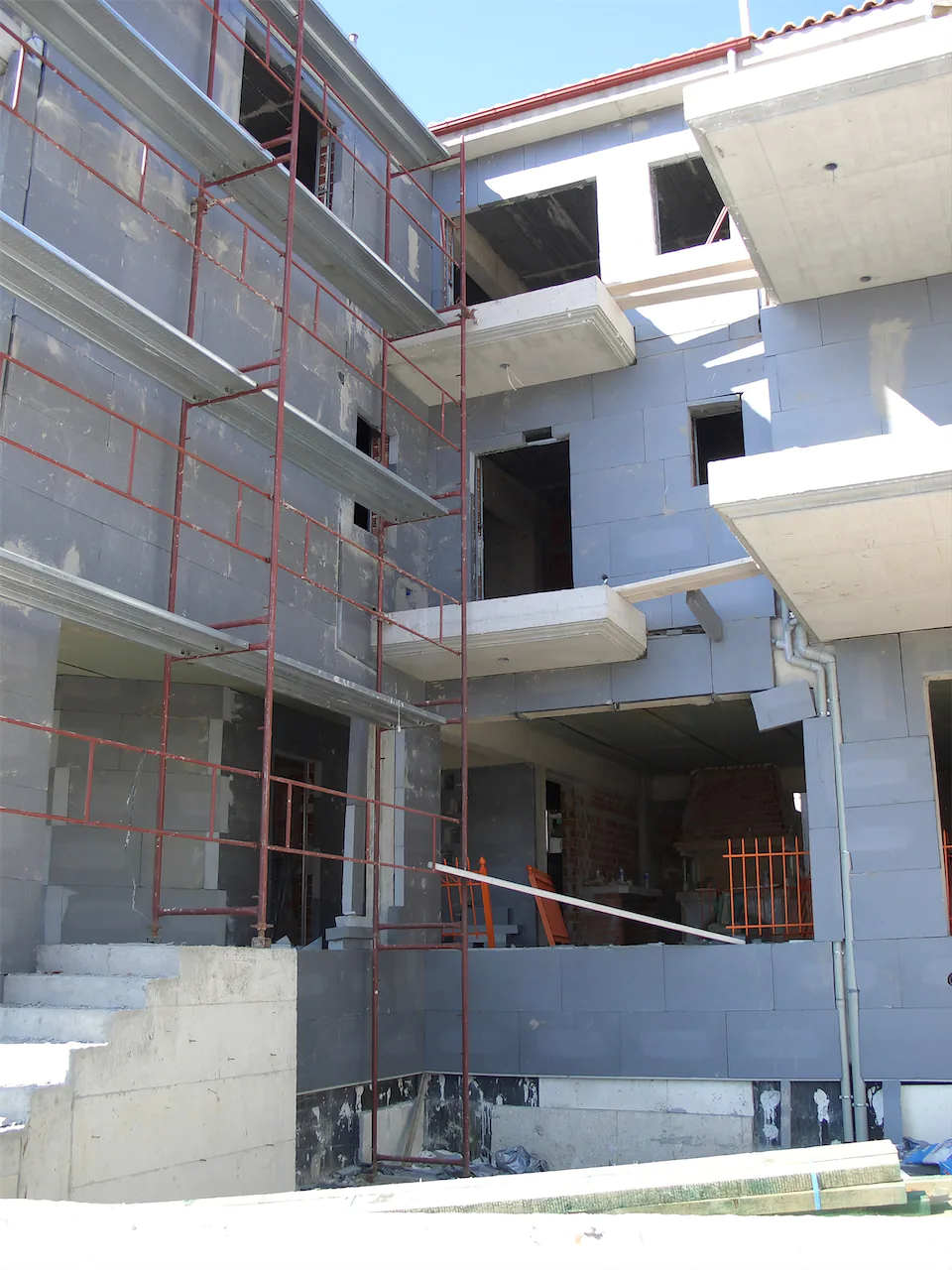

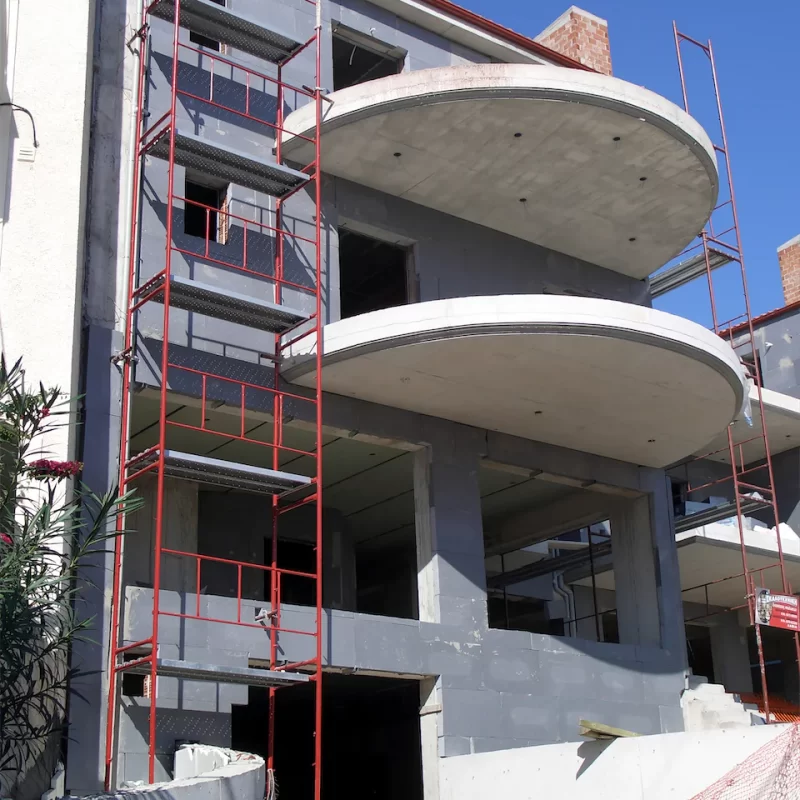

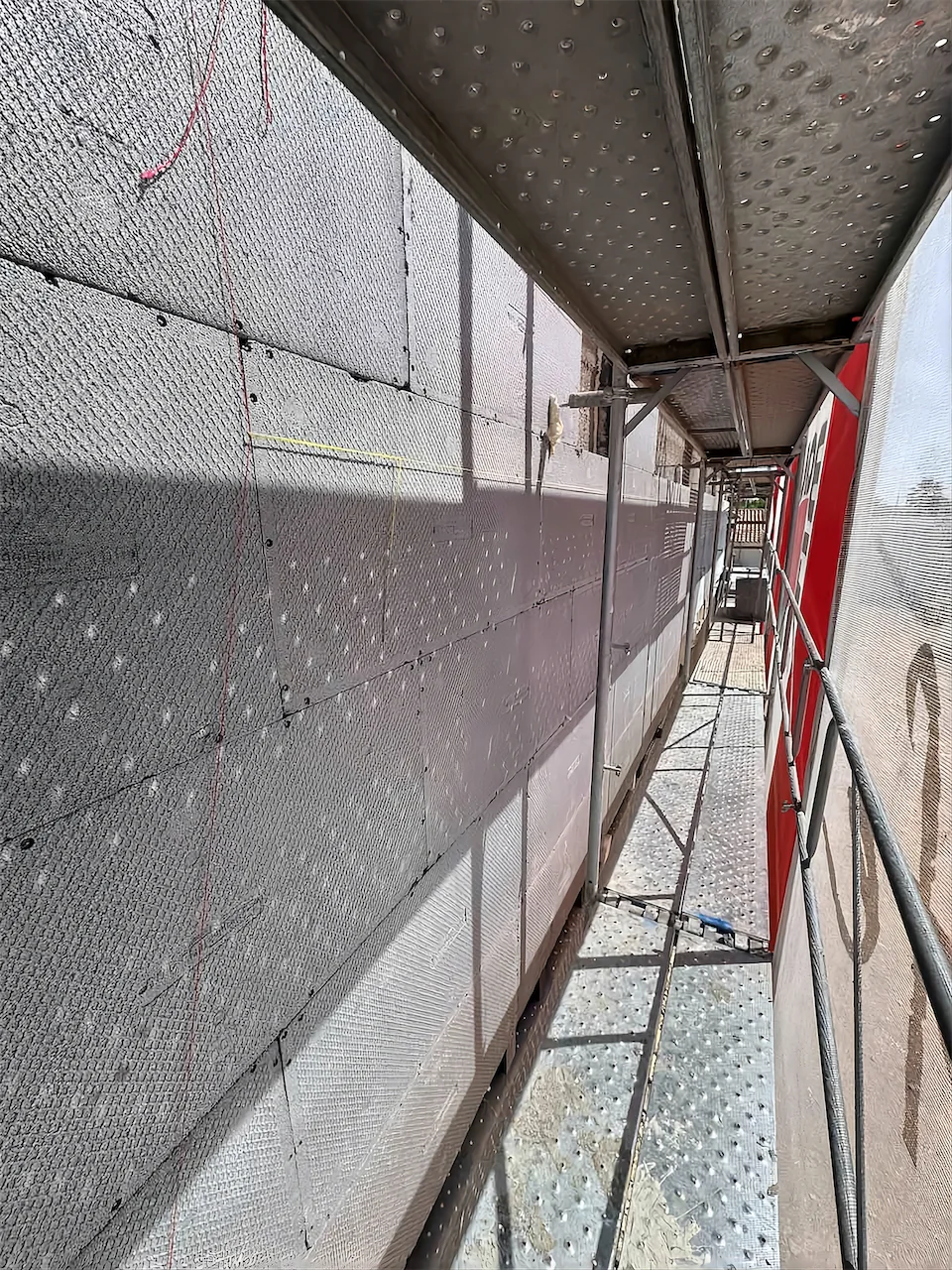

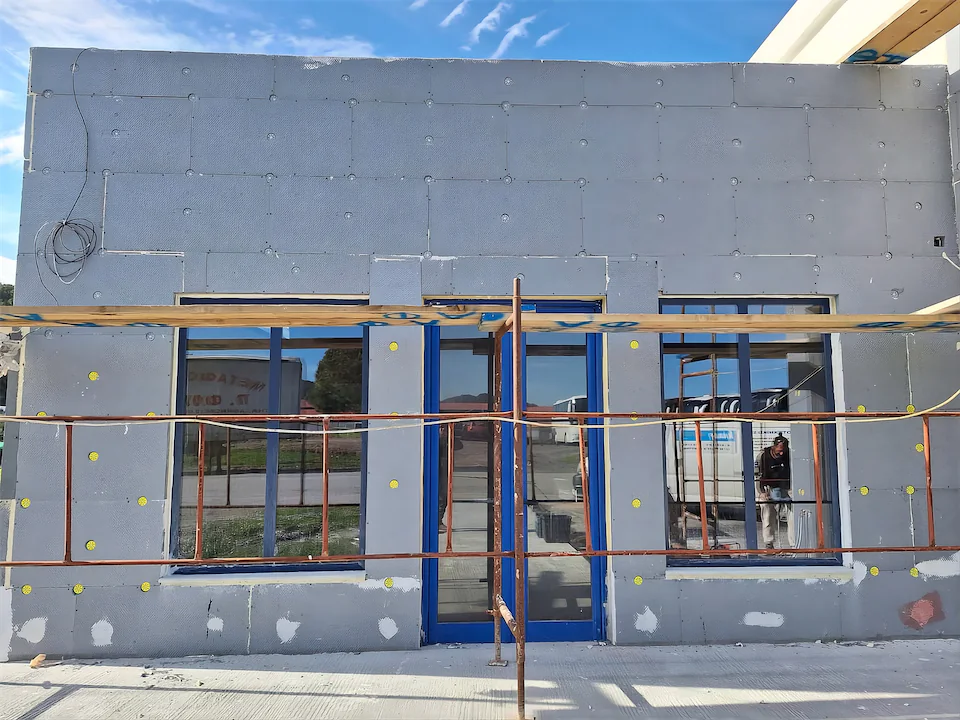

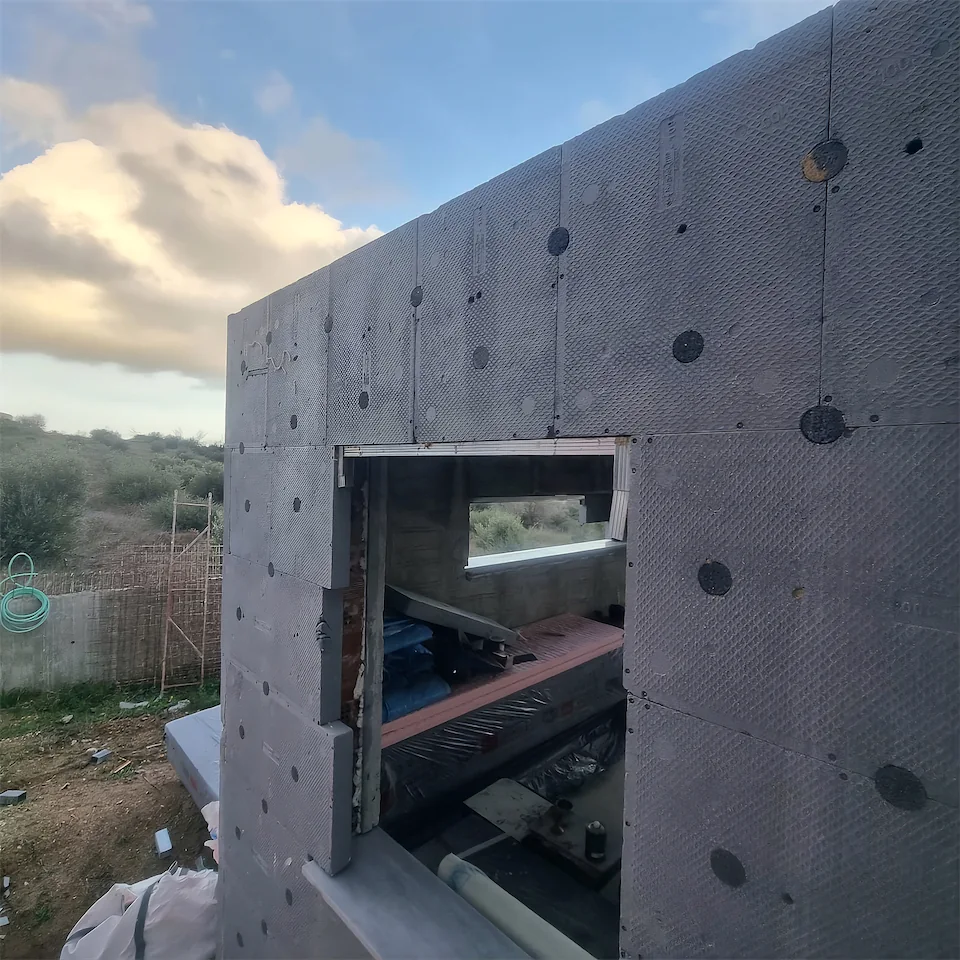

Certified Top Graphite Self-extinguishing Expanded Polystyrene

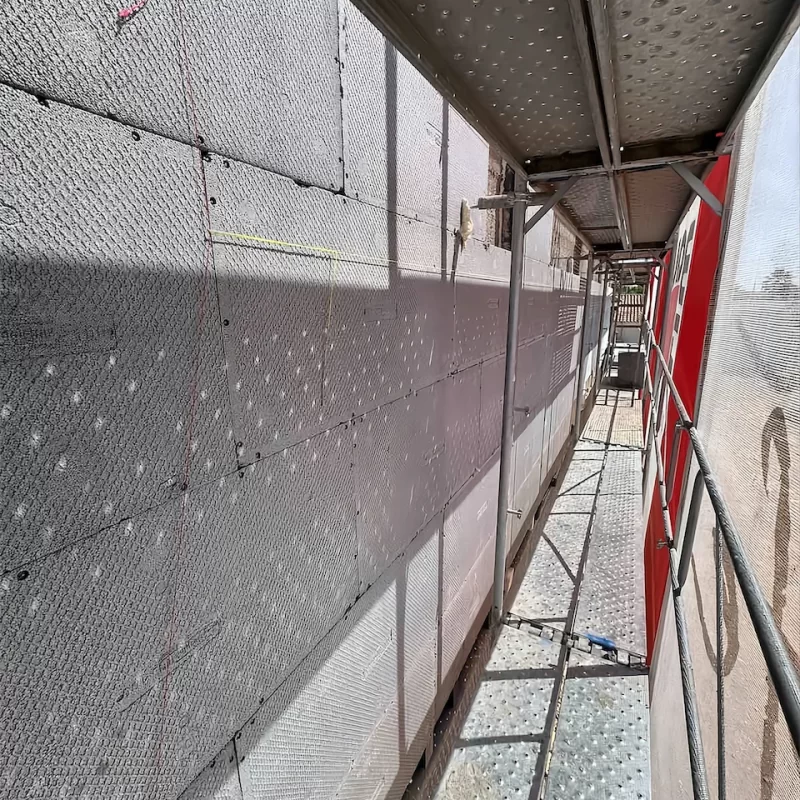

(NEOCOAT EPS) suitable for external thermal insulation (ETICS)
The thermal insulating material of the future is called Neocoat. Neocoat is produced from Neopor®, a product of intensive research by BASF® and is a new innovative material made of expanded polystyrene. It has a silver grey colour and offers significantly improved thermal insulation performance compared to conventional thermal insulation materials.
Innovation in Insulation
In any material, heat is transmitted by conduction, convection and radiation. In closed cell materials such as Expanded Polystyrene (EPS) there can be no air movement and thus heat transfer by conduction is minimised.
Therefore, in conventional Expanded Polystyrene, heat transfer is mainly by convection and radiation. In Neocoat the tiny graphite molecules contained by 3% in its composition act as reflectors that prevent heat transfer by radiation, allowing only convection to contribute to heat loss. As a result, thermal insulation boards made from Neopor® have 15% - 20% better thermal insulation properties than conventional white Expanded Polystyrene (EPS).
With the exception of its improved thermal insulation performance even at low densities compared to Expanded Polystyrene (EPS), Neocoat retains all the advantages of the mechanical and ecological properties of EPS.
Neocoat is produced from self-extinguishing material which contains flame retardants (HBCD Free).
The NEOCOAT THP group is a new subgroup of EPS Expanded Polystyrene products which was created exclusively for the application of External Thermal Insulation of Buildings which is also called Thermoprotection and from this word the initials THP are derived. All products of the Neocoat THP group are produced from self-extinguishing material which contains flame retardants. For this reason, insulation boards made from BASF's Neopor® are cut from blocks that have been left in storage for 14 days before being cut into slabs, so that their contractions are completed and they have excellent dimensional stability, they are cut to the strictest dimensional tolerances in 3 dimensions, but also in squareness and flatness, and are continuously tested for tensile strength in tension perpendicular to the surfaces and in bending in the factory and in the company's laboratory. The basic EPS products addressed to external thermal insulation are certified beyond the main EPS standard EN 13163 and based on the requirements of EN 13499 and EAD 0404 standards governing the application of external thermal insulation through the German certification body GSH.
The types of NEOCOAT THP are used by most companies that have in the Greek market External Thermal Insulation Systems with EPS Expanded Polystyrene and are the most appropriate thermal insulation solution. The application of external thermal insulation is the best thermal insulation solution in a building and especially in existing buildings is one of the minimum solutions that can be applied. The application of EPS External Thermal Insulation is used in 9 out of 10 external thermal insulation applications instead of other thermal insulation materials according to data from the European Association of External Thermal Insulation Systems Companies (EAE).
Certified Pressed Graphite Self-extinguishing
Expanded Polystyrene (EPS) from renewable materials.
The thermal insulation material of the future must be produced from raw material Neopor® BMB (biomass balance). The Neopor BMB is a BASF research product that is derived from biomass in the production process and saves valuable resources while reducing CO2 emissions. The Neopor BMB is an expandable polystyrene with graphite, made from biofuel and biogas, derived from renewable biomass sources, in specific organic or forestry waste.
The biomass balance approach of the BASF (BMB - biomass balance), certified according to the requirements of the German system REDcert2, means that the mineral raw materials required for the production of the Neopor® can be replaced with renewable raw materials. Production methods of this kind save valuable resources and reduce CO2 emissions at the same time. The company has the same certification RIZAKOS to be a certified member of the biomass management chain that meets the requirements for the production of products with a reduced carbon footprint
The thermal insulation plates of our company produced by our company are 50% from Neopor BMB and 50% from conventional Neopor, protect the environment and the climate, while maintaining their usual high quality, because the properties of the material are identical to those of its mineral equivalent. It therefore retains its excellent thermal insulation properties, is water-repellent, easy to handle, flexible and economical.
These plates protect the environment and the climate by reducing CO2 emissions throughout their life cycle. The CO2 emitted during the production of such a low carbon footprint EPS is reduced by up to 40% compared to a conventional EPS plate.
G.K. RIZAKOS ABETE innovates once again in the field of insulation by bringing for the first time in Greece BASF®'s raw material, Neopor® BMB, with which it has developed new series of thermal insulation boards, Neoplak Low Carbon, Neoplak THP Low Carbon, Neotetto Low Carbon and Neotetto Air Low Carbon, which cover the whole range of insulation applications.

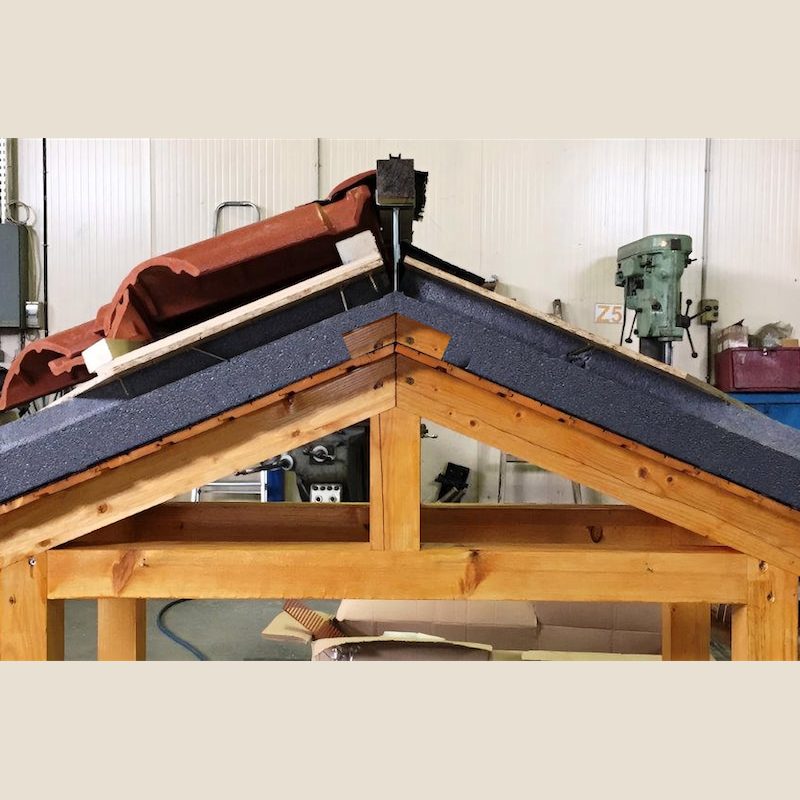

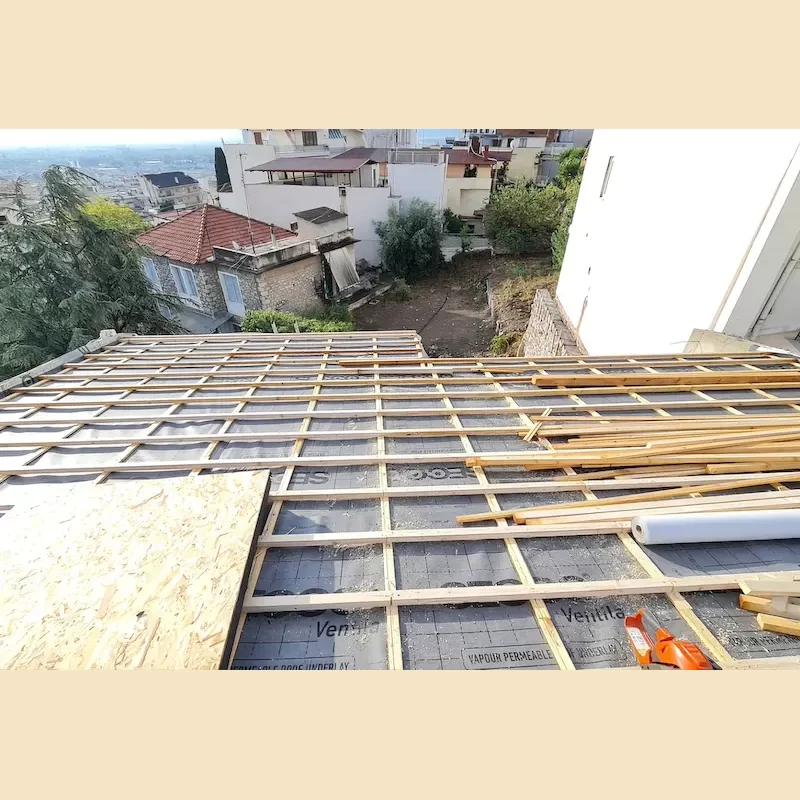

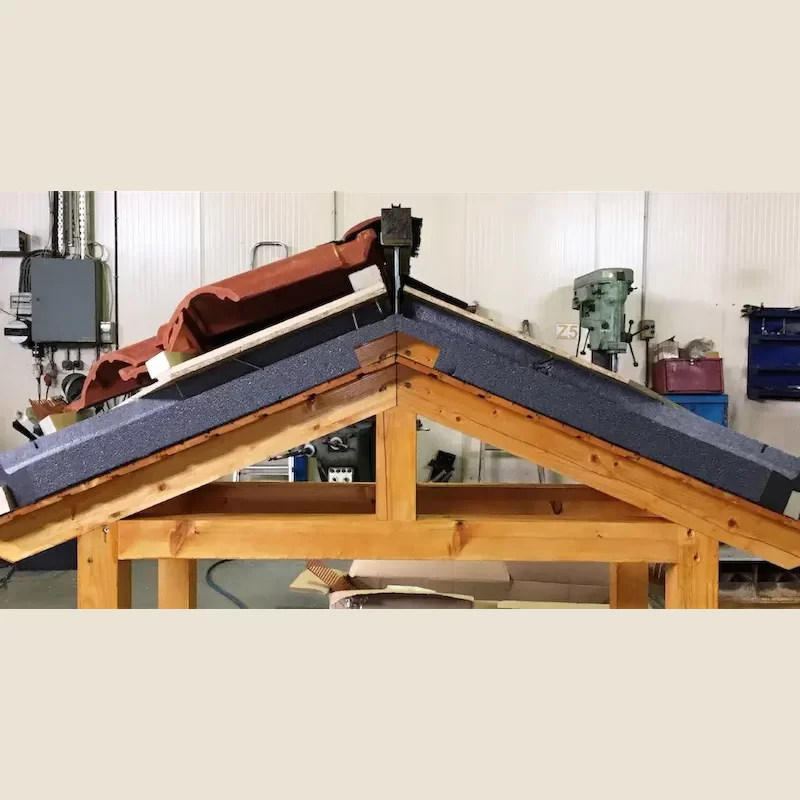

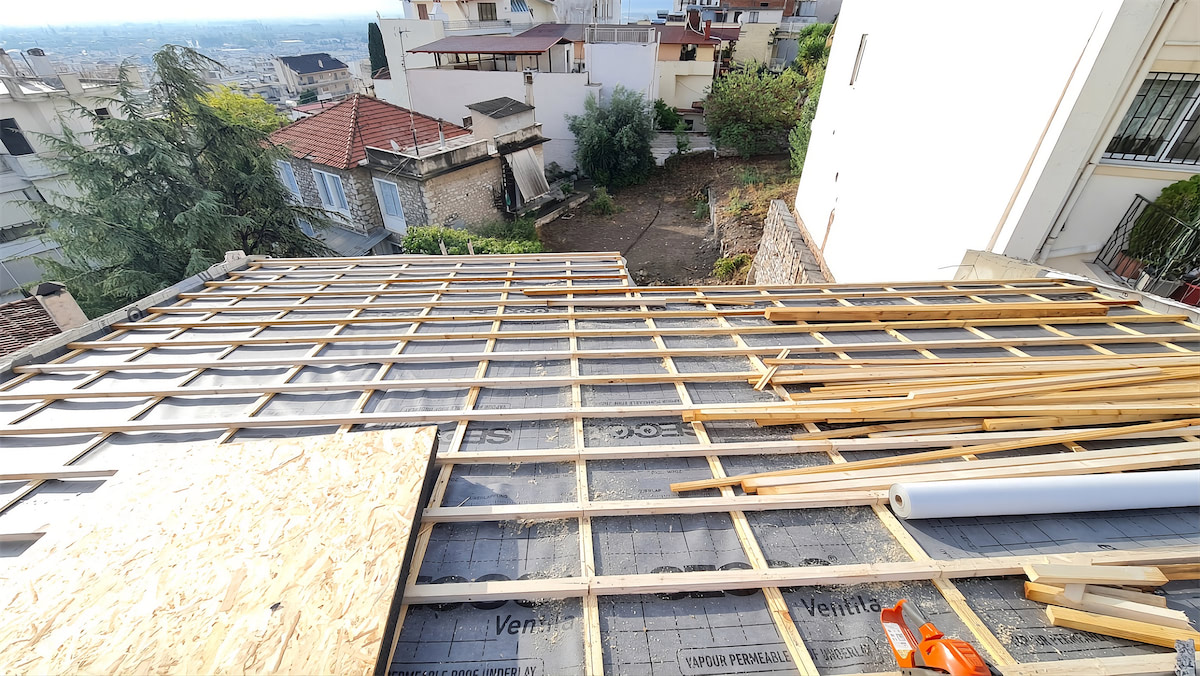

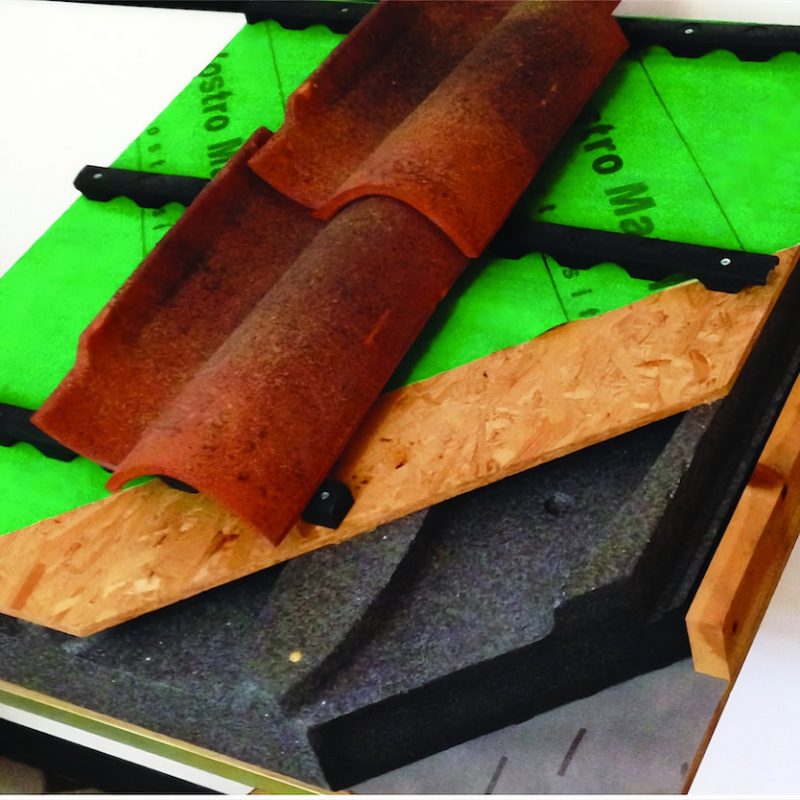

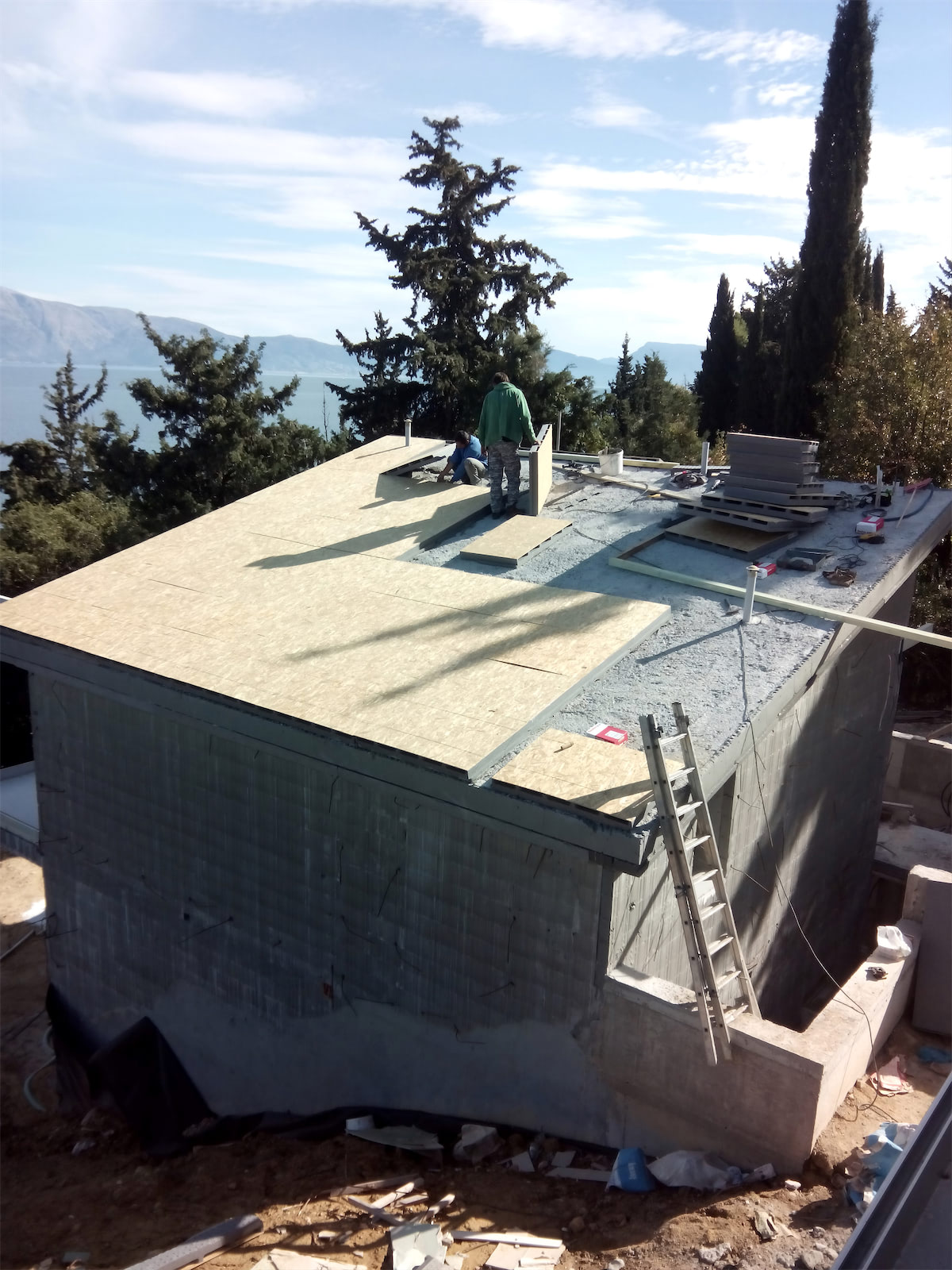

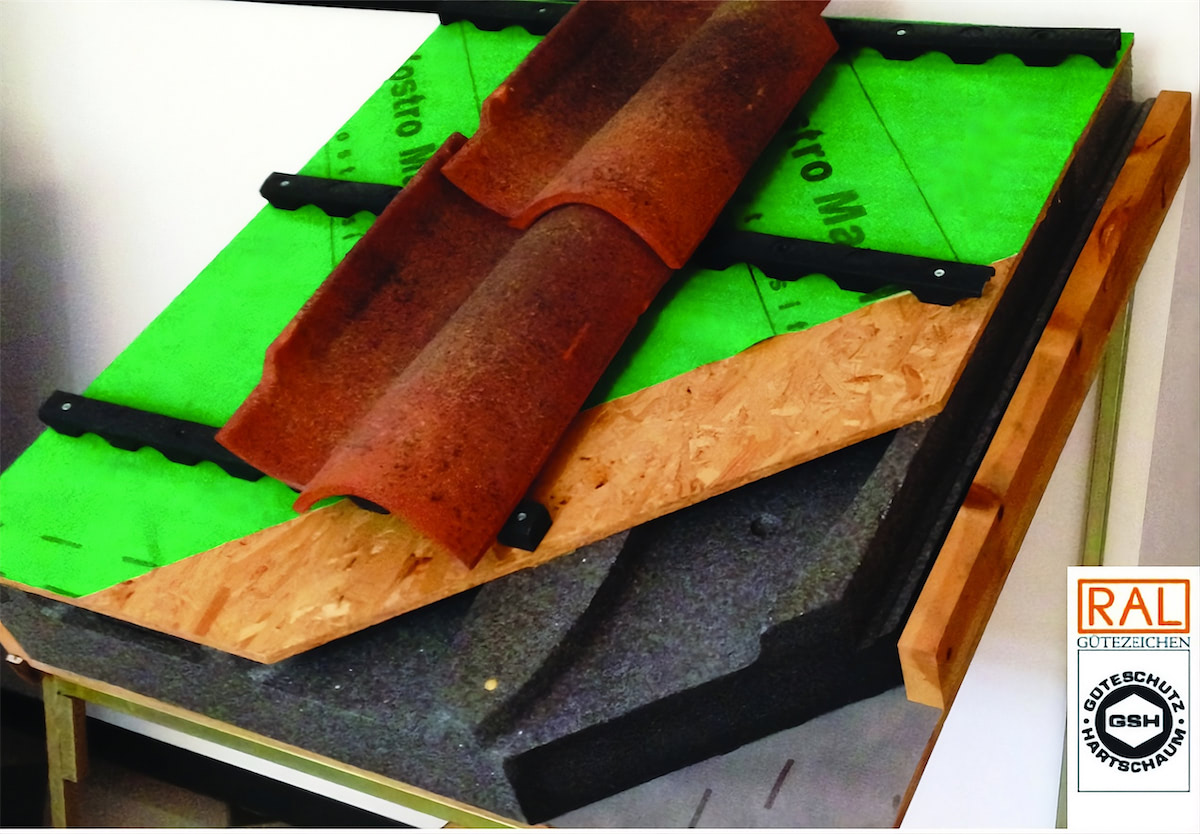

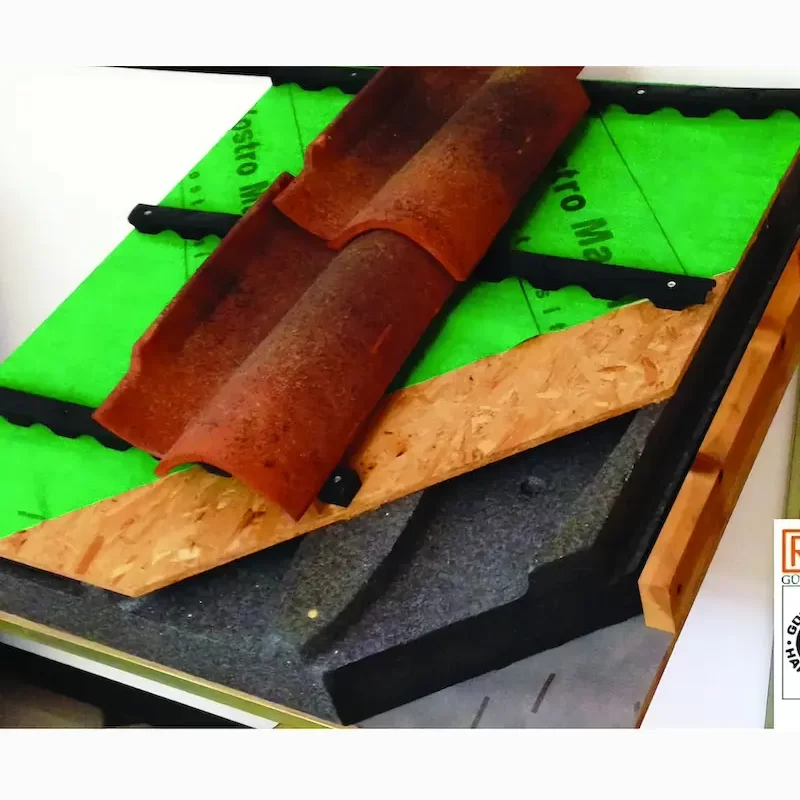

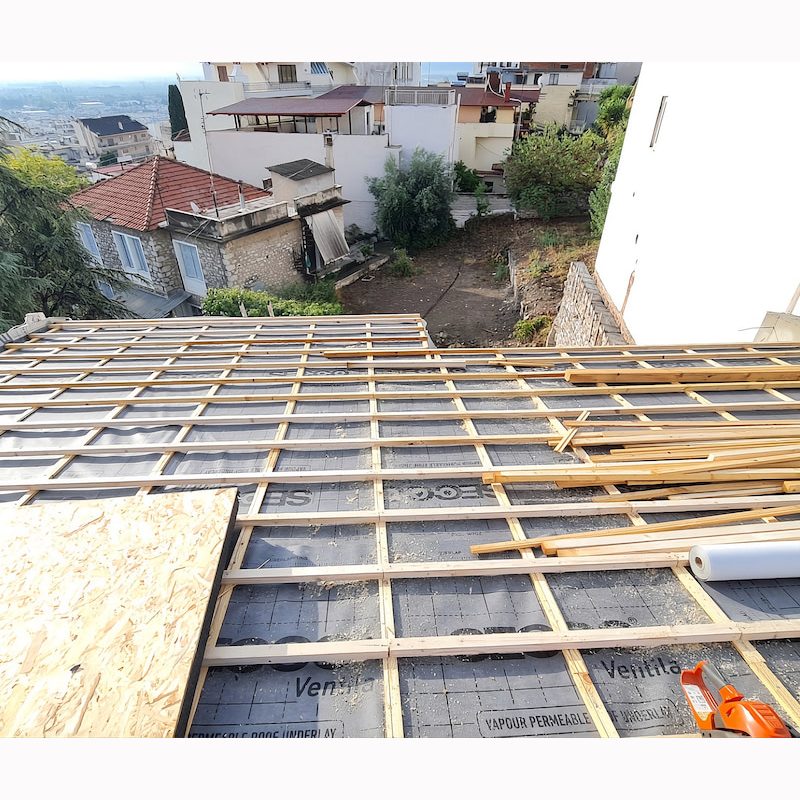

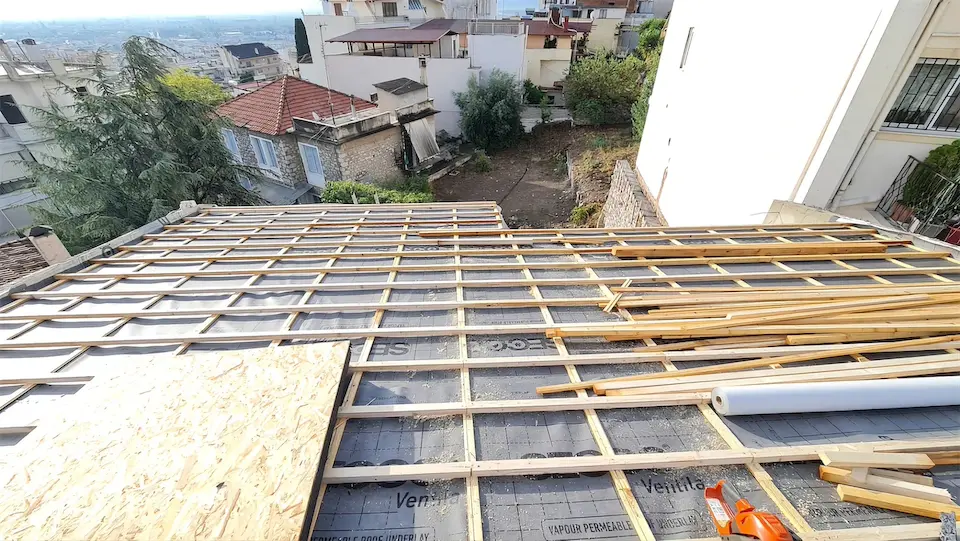

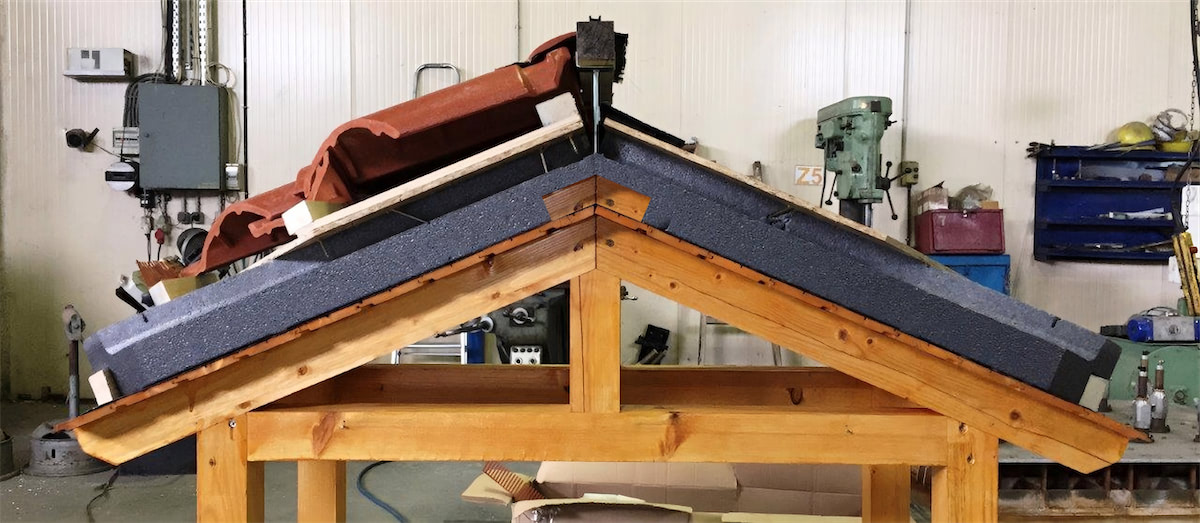

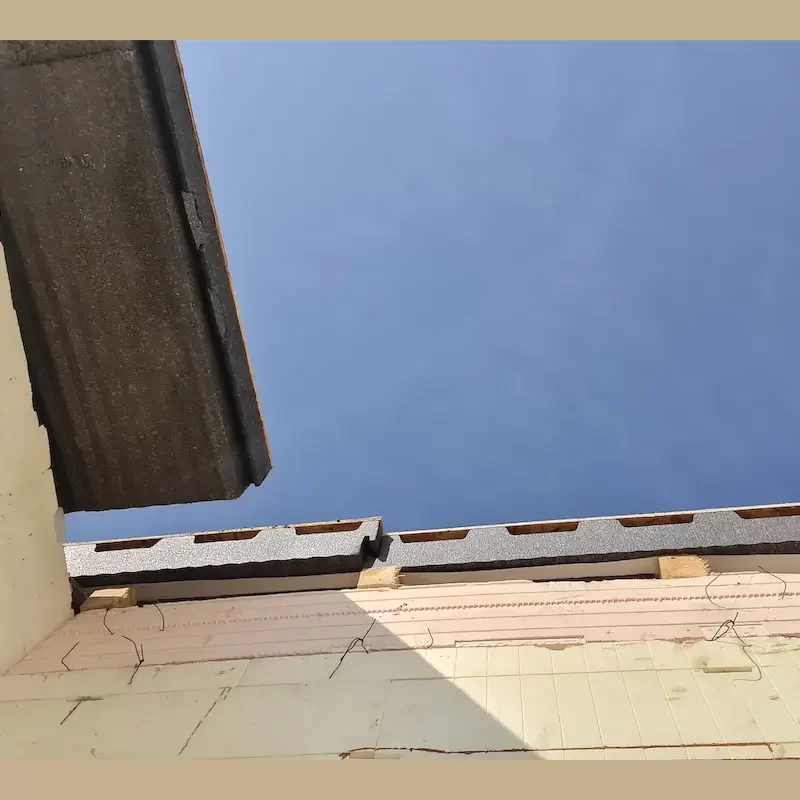

Neotetto Low Carbon
Roof Insulation System
Roman type tile layers made of enriched graphite self-extinguishing expanded polystyrene, special for insulation of wooden and concrete roofs with Thermal Conductivity Coefficient λd = 0,030 W/mK.
The Neotetto® Low Carbon is enriched graphite pressed self-extinguishing Expanded Polystyrene (EPS) in a thickness of 60 mm and is suitably shaped with flashings for thermal insulation of tiled roofs without thermal bridges. It is packaged in silver film in bundles of 5,4 m2. It is produced according to EN 13163:2015, has ISO 9001 production certificates and CE marking. It has a slot for a 5 x 1.5 cm purlin. Perpendicular to the purlins it has 3×2 cm channels for ventilation of the roof, which serve to drain any water that may pass through. It has been calculated that it saves 5 litres of oil per m2 of roof in the B climate zone of Greece.
Certified Pressed Graphite Self-extinguishing Expanded Polystyrene (EPS) from renewable raw materials.
Coefficient of Thermal Conductivity:
EPS 100, 150, 200 λd = 0,030 W / mK
Thermal resistance for thickness d=100mm
EPS 100, 150, 200 R = 3,333 m2 K/W
The thermal insulation material of the future must be produced from raw material Neopor® BMB (biomass balance). The Neopor BMB is a BASF research product that is derived from biomass in the production process and saves valuable resources while reducing CO2 emissions. The Neopor BMB is an expandable polystyrene with graphite, made from biofuel and biogas, derived from renewable biomass sources, in specific organic or forestry waste.
The biomass balance approach of the BASF (BMB - biomass balance), certified according to the requirements of the German system REDcert2, means that the mineral raw materials required for the production of the Neopor® can be replaced with renewable raw materials. Production methods of this kind save valuable resources and reduce CO2 emissions at the same time. The company has the same certification RIZAKOS to be a certified member of the biomass management chain that meets the requirements for the production of products with a reduced carbon footprint
The thermal insulation plates of our company produced by our company are 50% from Neopor BMB and 50% from conventional Neopor, protect the environment and the climate, while maintaining their usual high quality, because the properties of the material are identical to those of its mineral equivalent. It therefore retains its excellent thermal insulation properties, is water-repellent, easy to handle, flexible and economical.
These plates protect the environment and the climate by reducing CO2 emissions throughout their life cycle. The CO2 emitted during the production of such a low carbon footprint EPS is reduced by up to 40% compared to a conventional EPS plate.
G.K. RIZAKOS ABETE innovates once again in the field of insulation by bringing for the first time in Greece BASF®'s raw material, Neopor® BMB, with which it has developed new series of thermal insulation boards, Neoplak Low Carbon, Neotetto Low Carbon and Neotetto Air Low Carbon, which cover the whole range of insulation applications.

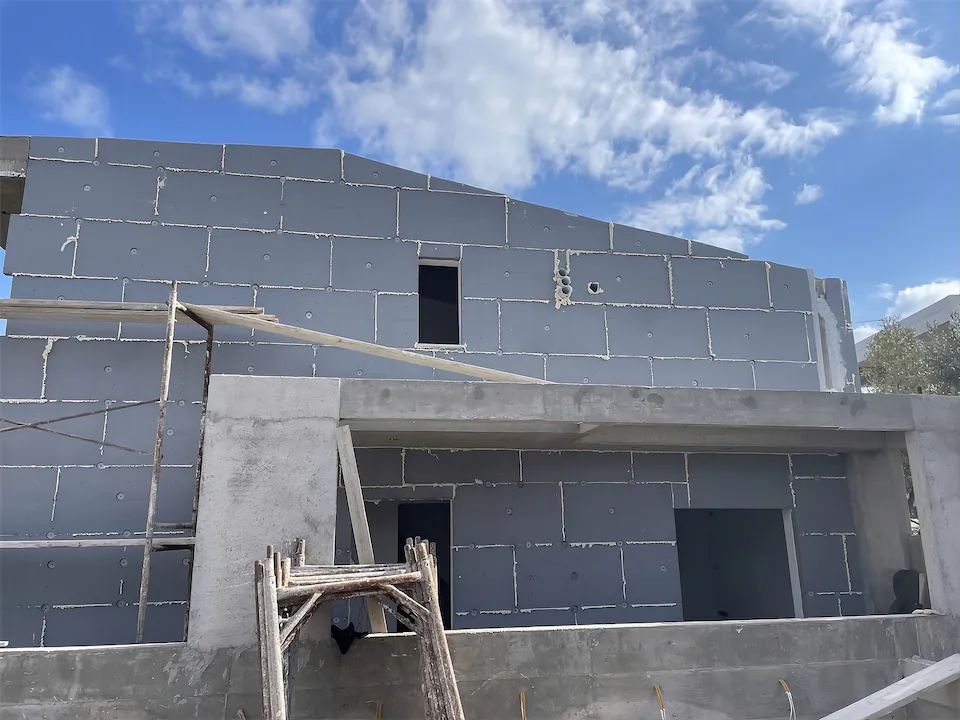

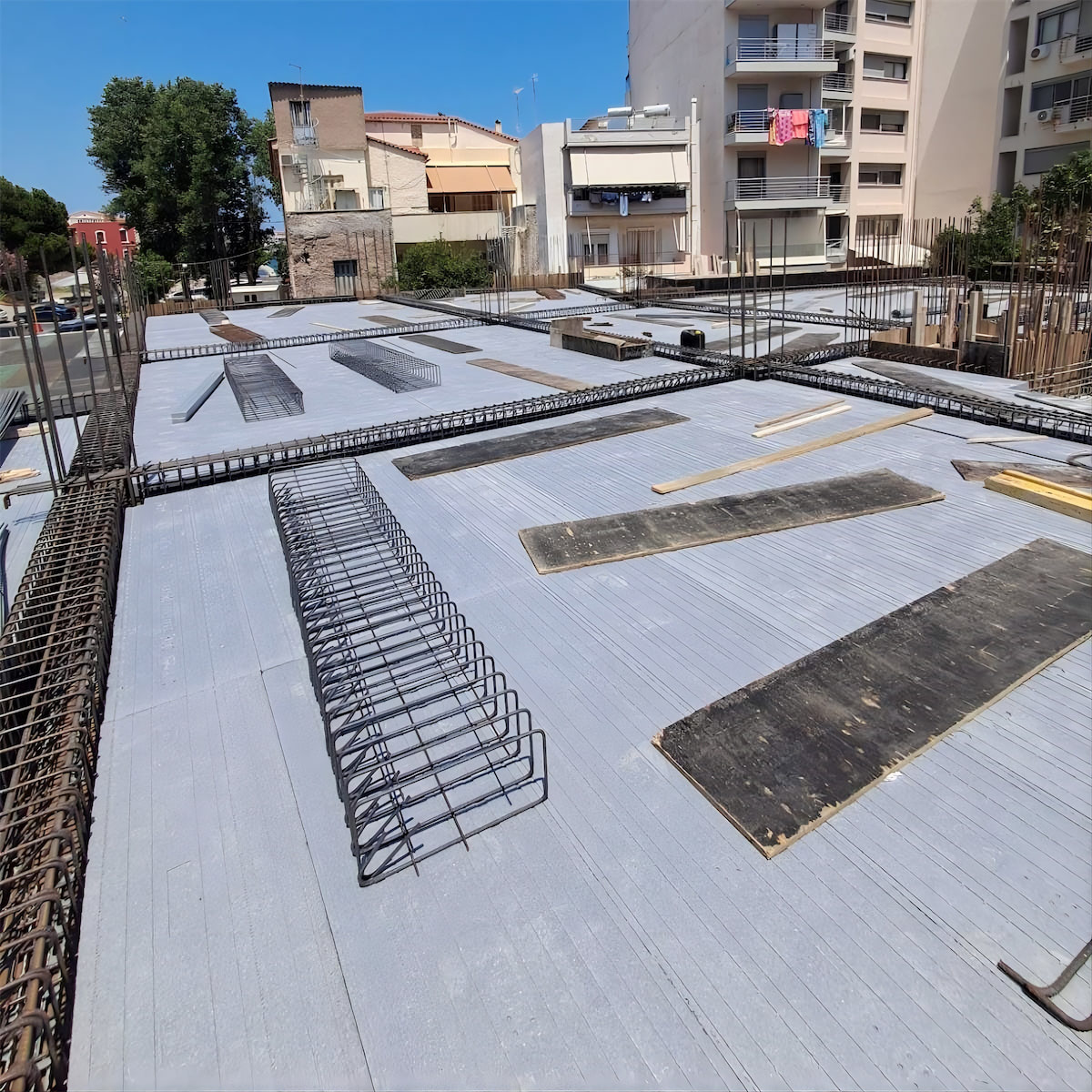

Neoplak Low Carbon

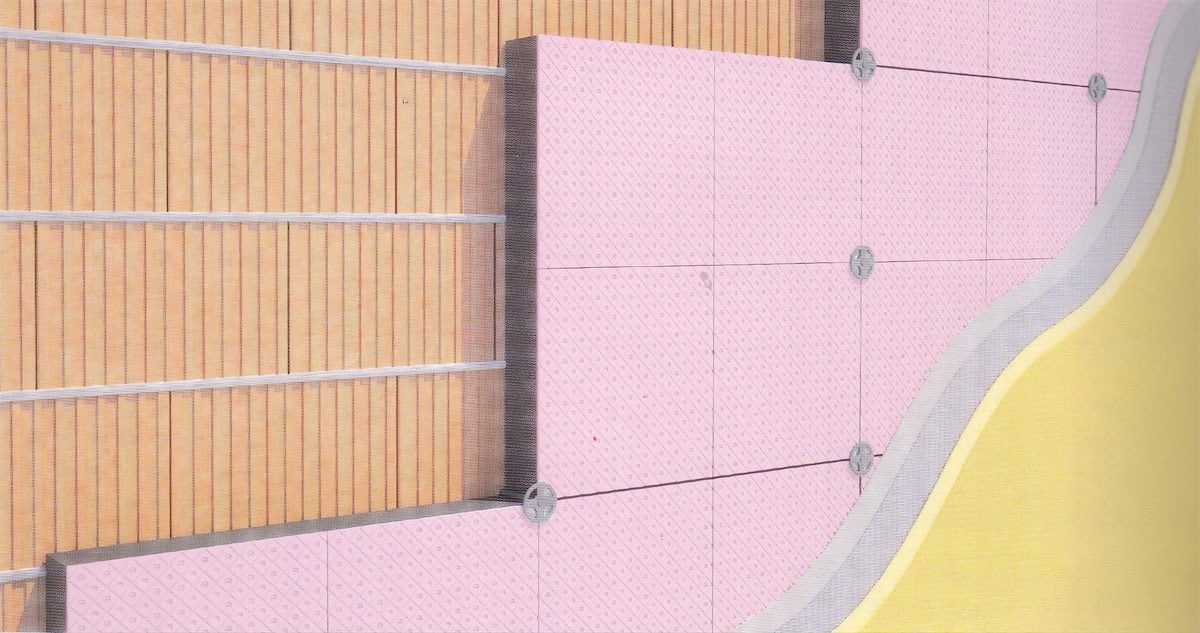

Graphic designers thermal insulation slabs for external thermal insulation THP, double walls, pitched roofs and concrete elements with Coefficient of Thermal Conductivity λd = 0,030 W/mK
The Neoplak®THPlow carbon for thermoforming is produced by mold, without moulds, and embossed his name on the plate. Neoplak® Low Carbon for building use is produced from a mould, has mouldings on all sides, an embossed gauge for ease of cutting and embossed name on the plate.
Packaged in silver polyethylene film with the name printed on it Neoplak® Low Carbon.
Produced according to the specifications of the standard EN 13163:2015 and holds certificates for its production by ISO 9001:2015 and marking CE.
Available in four types THP for external thermal insulation thermal facade, TX-TT for thermal insulation of double walls and pitched roofs, BT for thermal insulation of concrete elements and AM for thermal insulation of rooms, refrigerator floors and peripheral underground walls.
The THP produced in dimensions 1.200 x 600 mm and in 7 different thicknesses of 50, 60, 70, 80, 100, 120 and 140 mm.
The TX-TT, BT and AM produced in dimensions 2.500 x 600 mm and in 7 different thicknesses of 30, 40, 50, 60, 70, 80 and 100 mm.

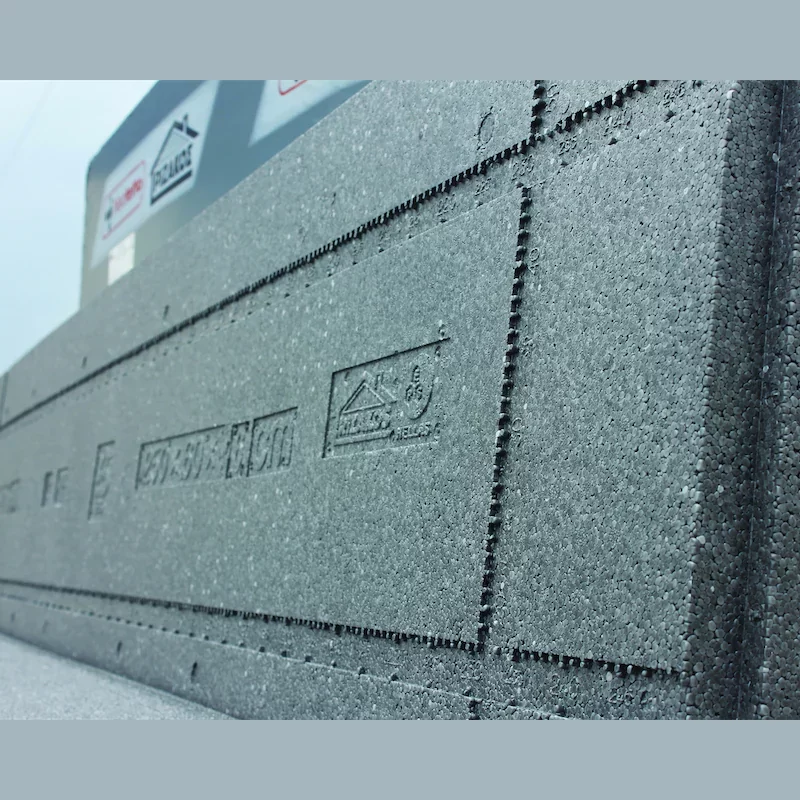

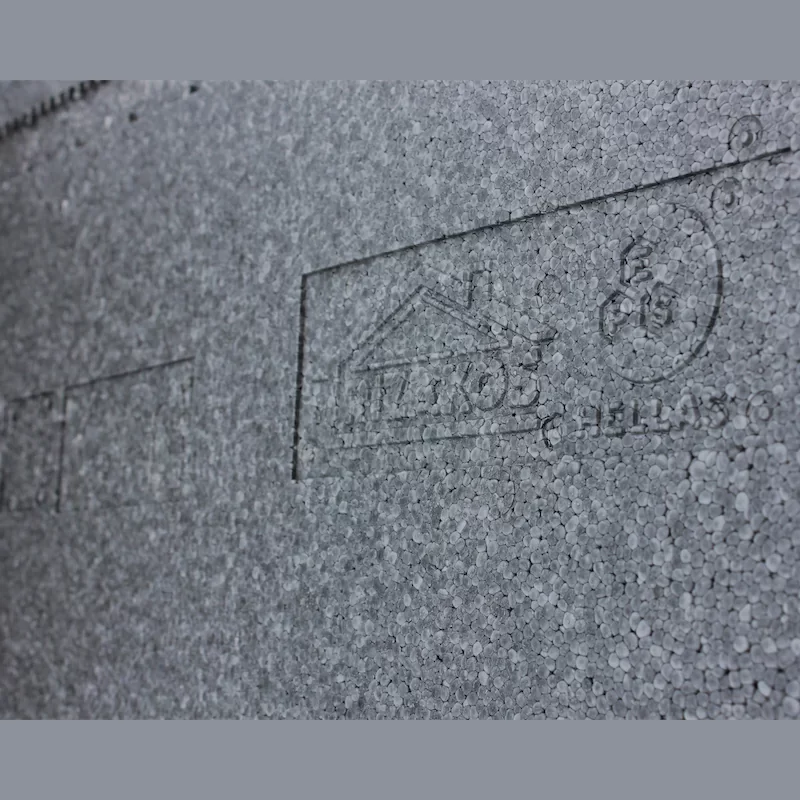

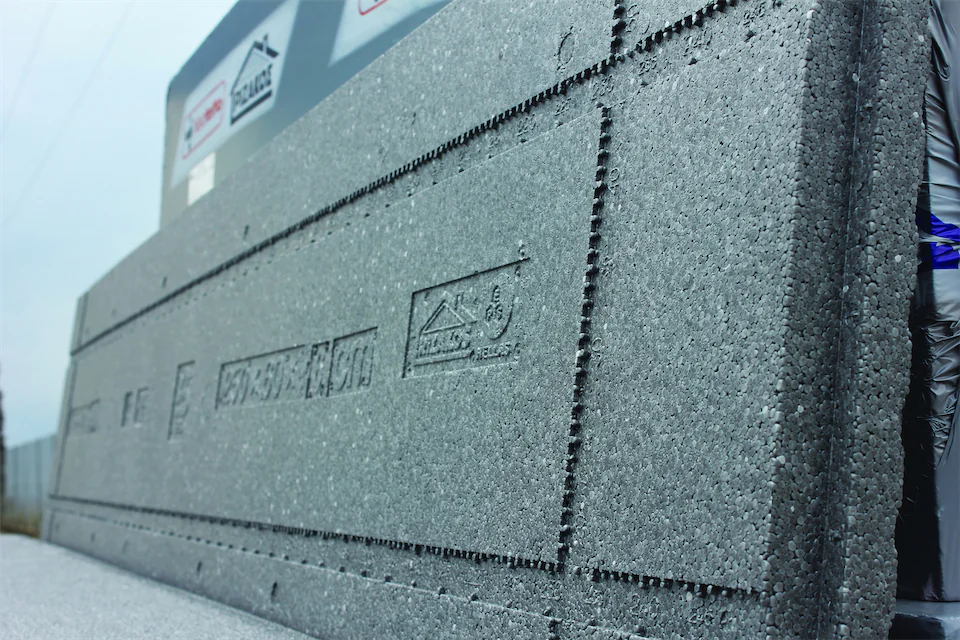

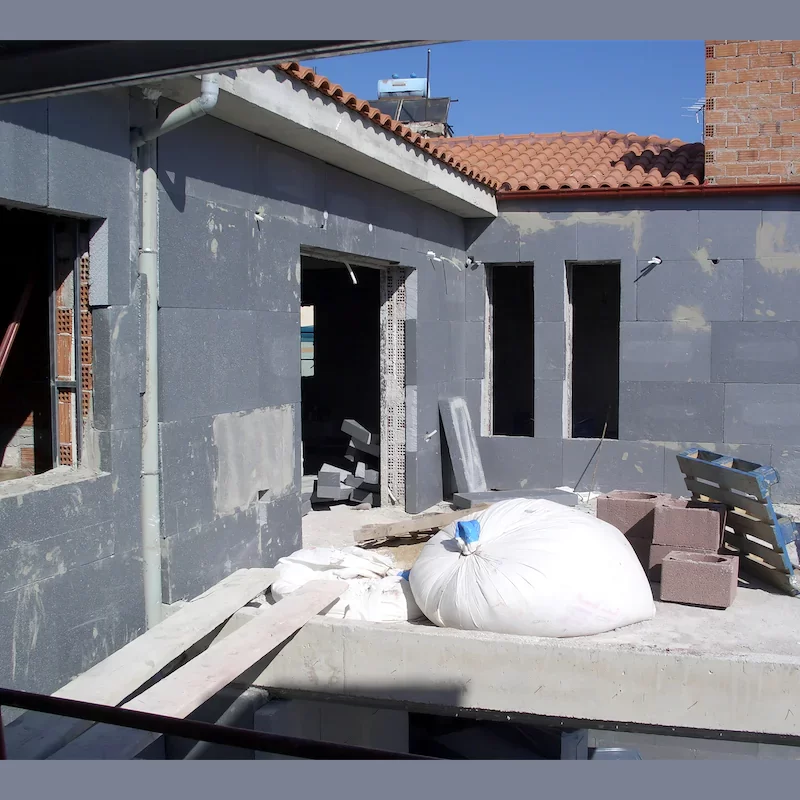

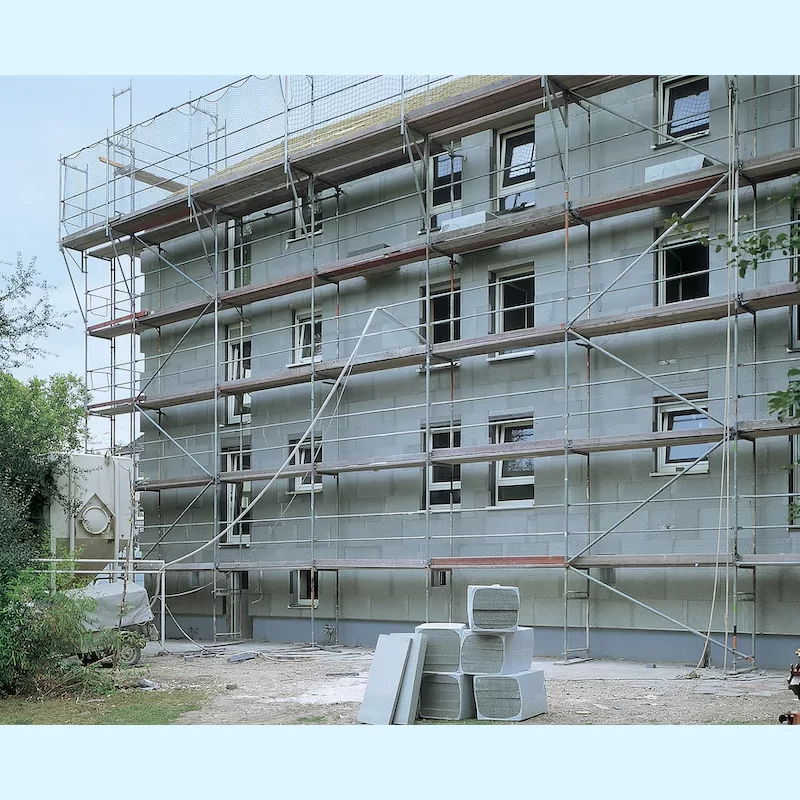

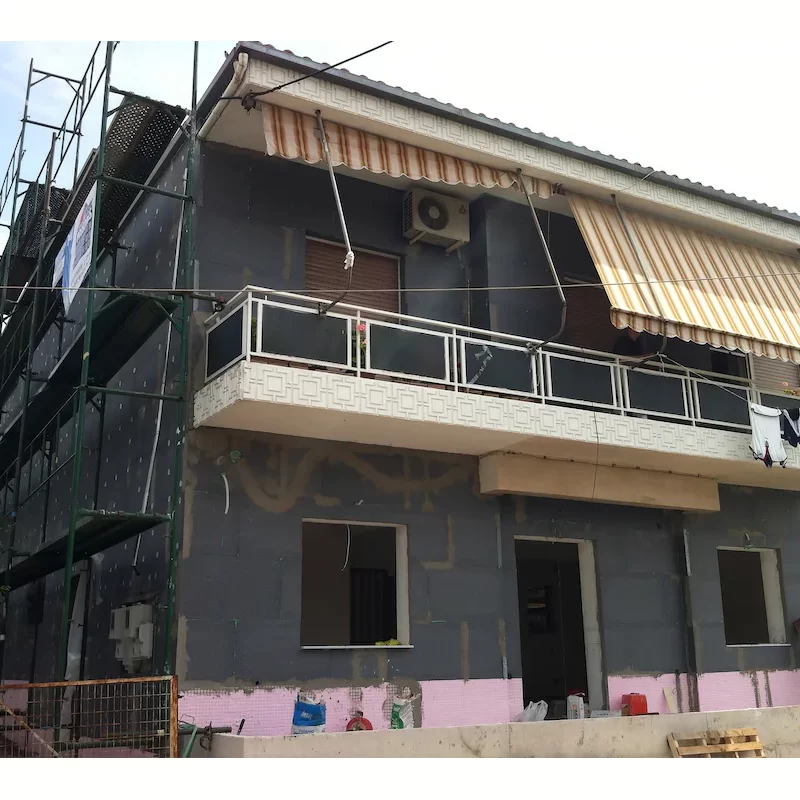

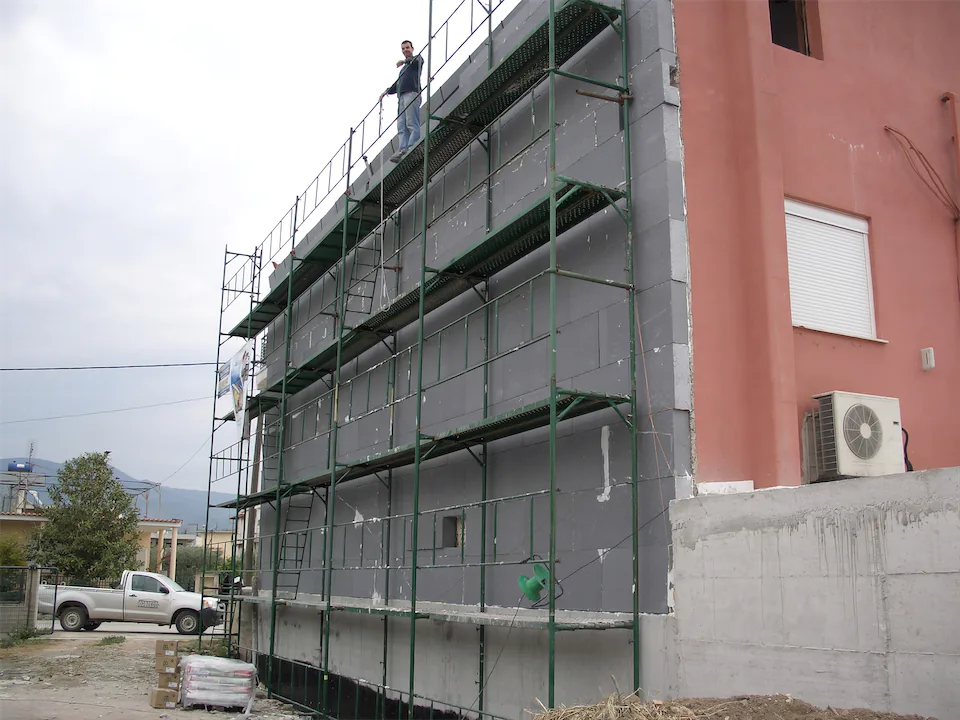

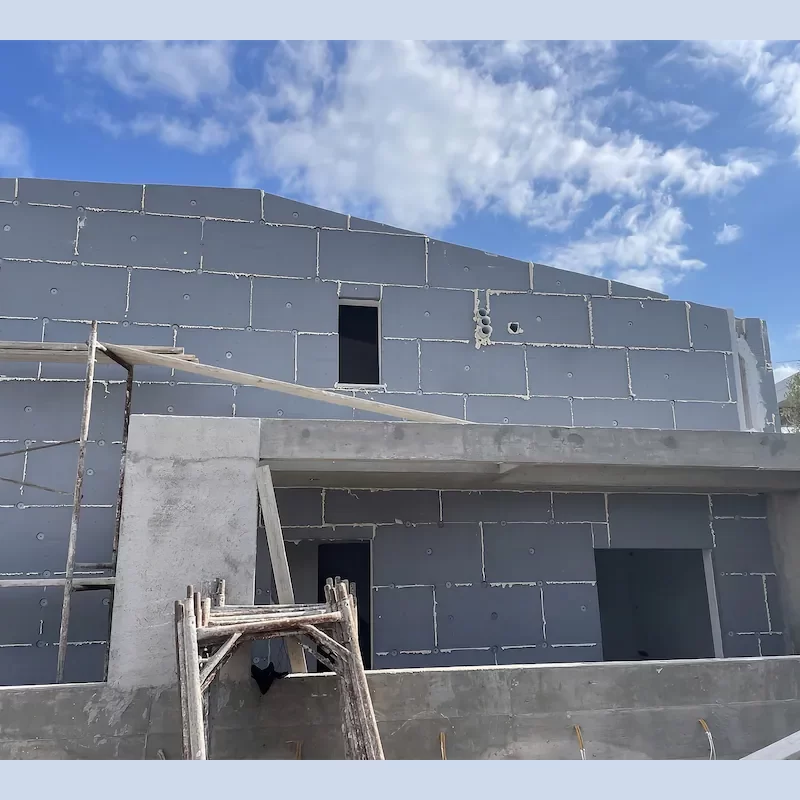

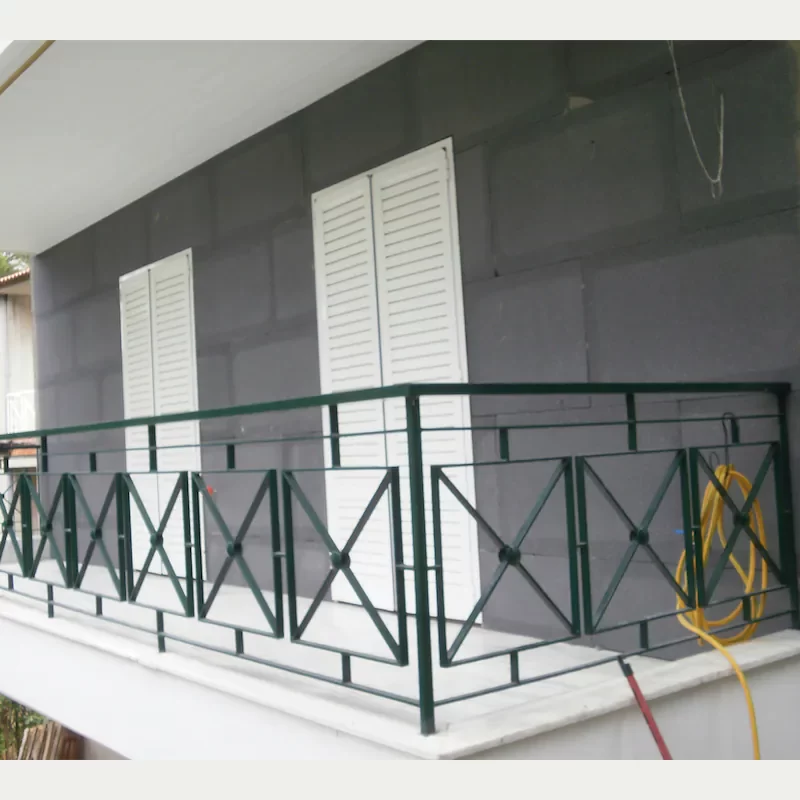

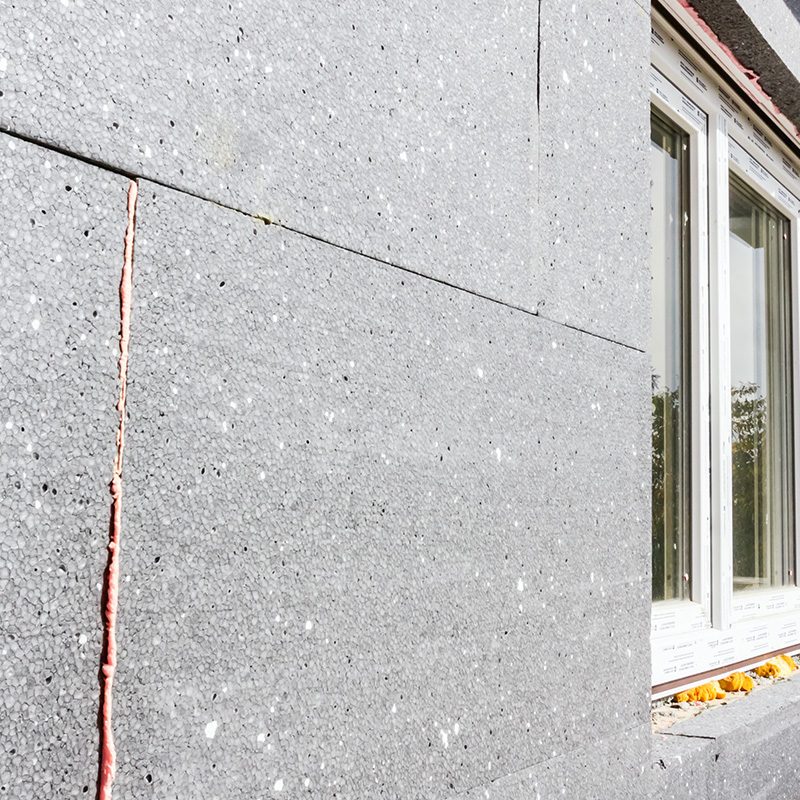

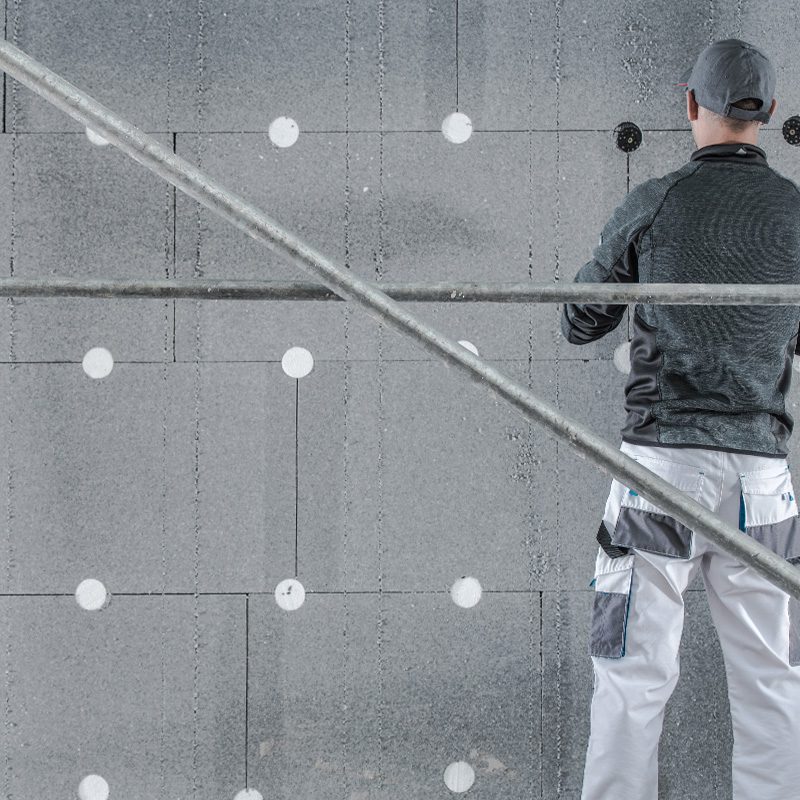

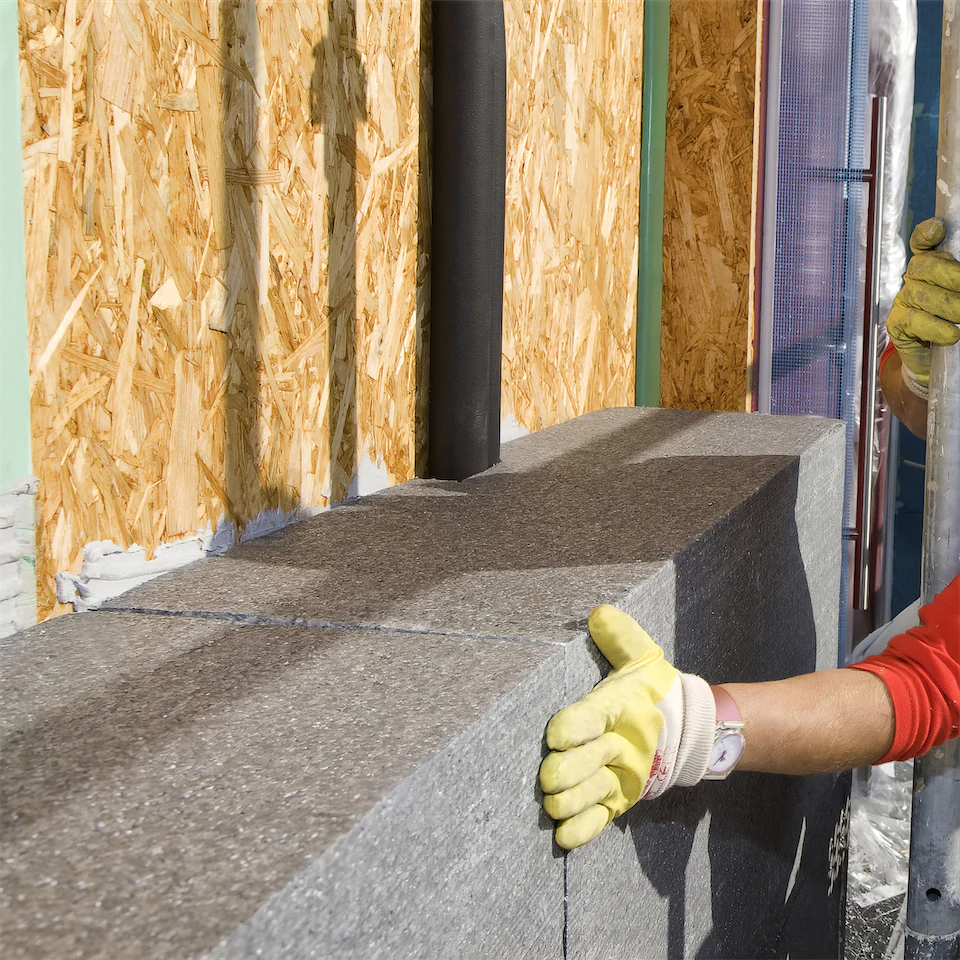

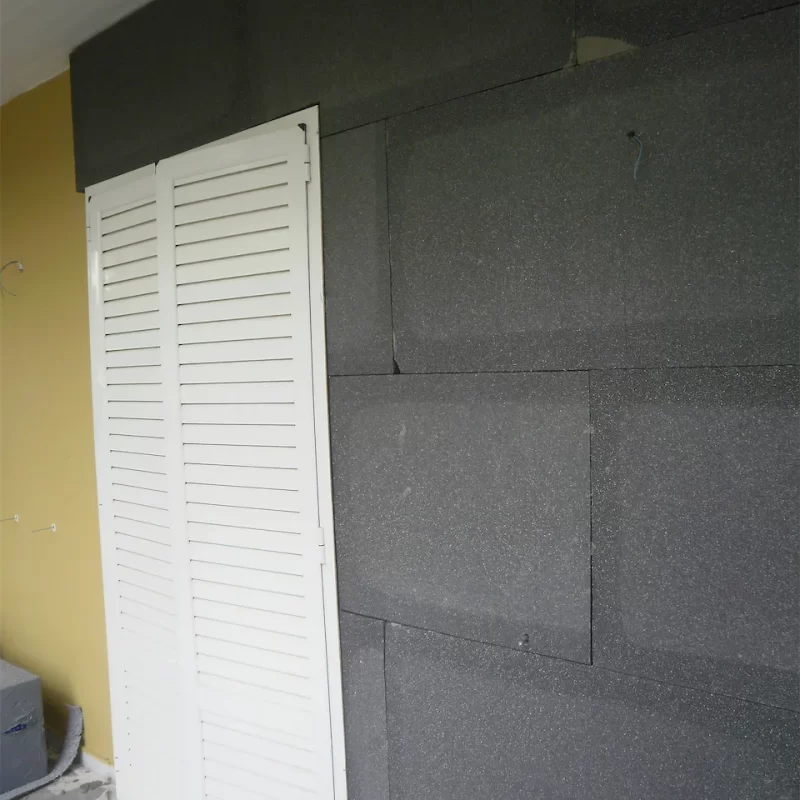

Certified Top Graphite Self-extinguishing Expanded Polystyrene (EPS)
Coefficient of Thermal Conductivity
EPS 200 λ = 0.030 W / mK
EPS 150 λ = 0.030 W / mK
EPS 100 plus λ = 0.030 W / mK
EPS 80 plus λ = 0.031 W / mK
Thermal resistance for thickness d=100mm
EPS 200 R = 3.333 m2 K/W
EPS 150 R = 3.333 m2 K/W
EPS 100 R = 3.333 m2 K/W
EPS 80 R = 3.225 m2 K/W
Produced in 4 types depending on the application:

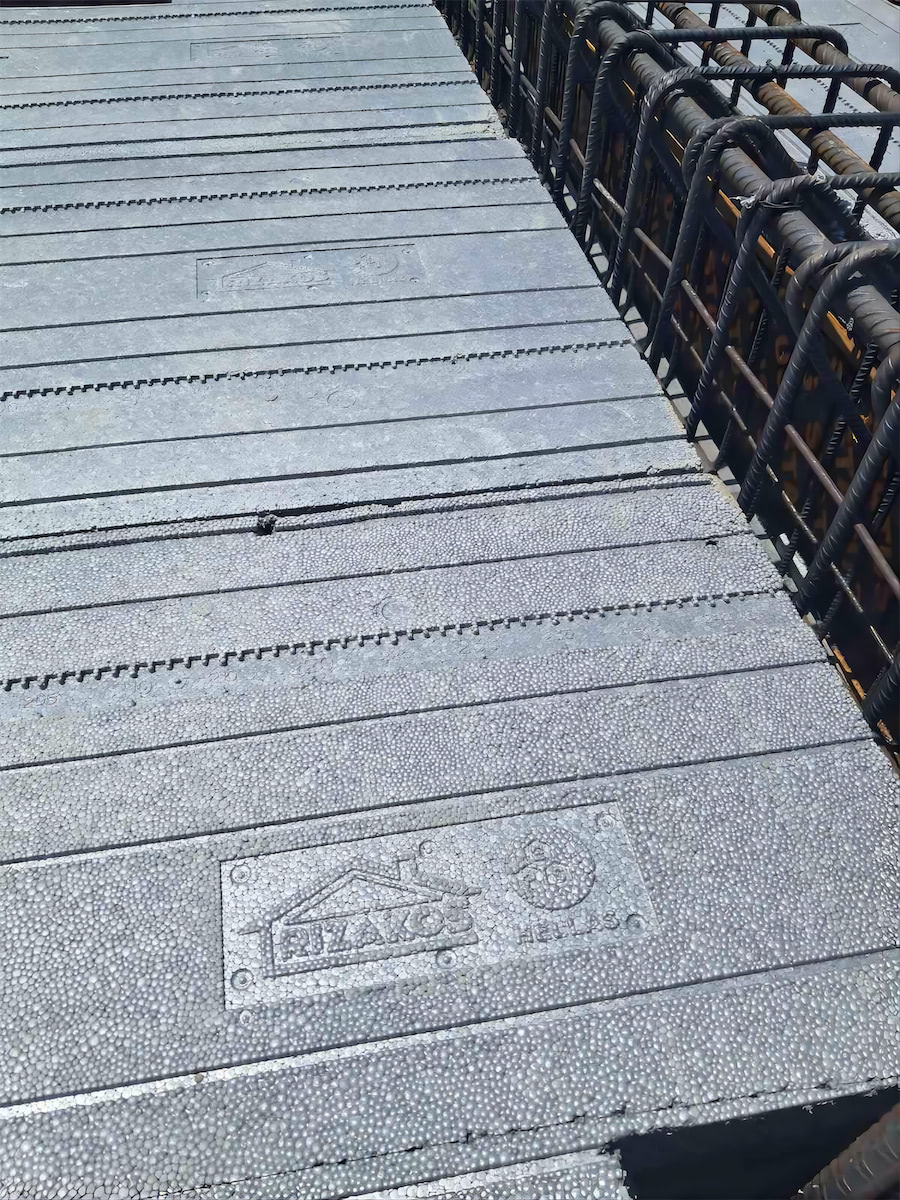

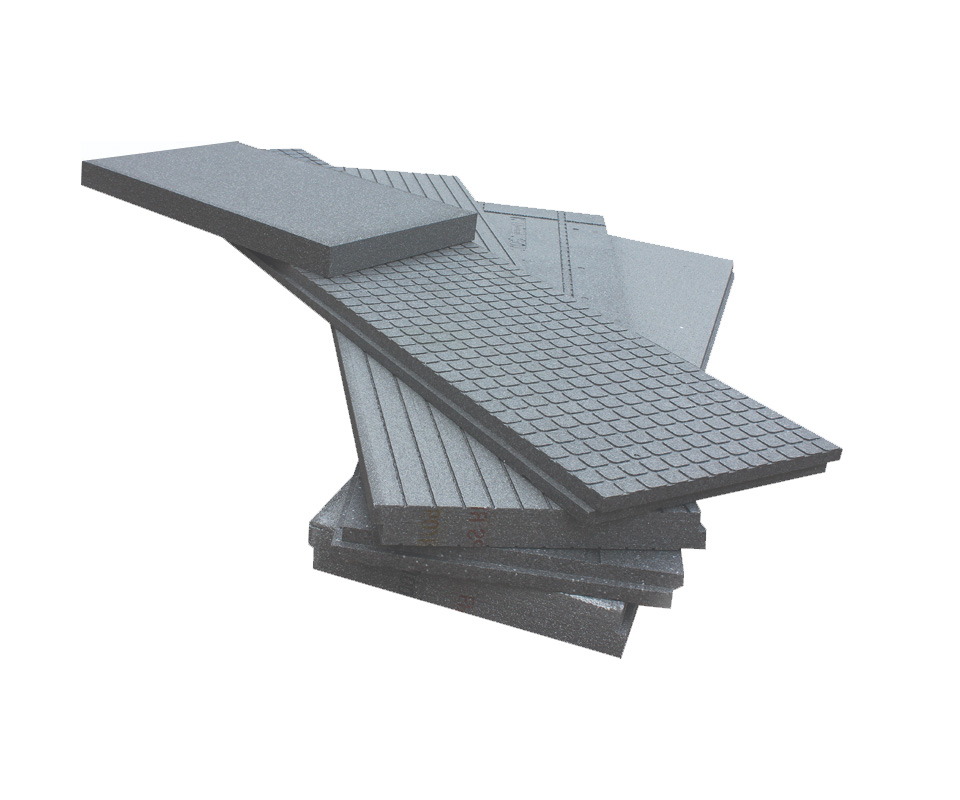

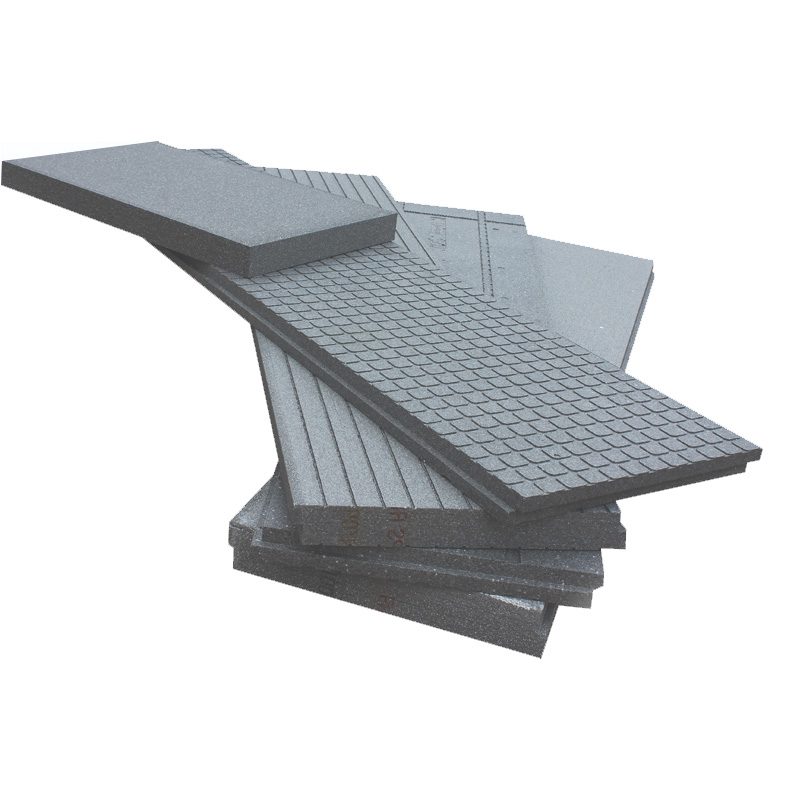

NEOCOAT BT-AM EPS 200: Cut slabs with tongue and groove for thermal insulation of concrete elements and inverted roofs
NEOCOAT BT EPS 150: Cut slabs with grooves and grooves for thermal insulation of concrete elements.
NEOCOAT TX EPS 100 PLUS: Cut slabs with tongue and groove for thermal insulation of masonry
NEOCOAT TT EPS 100 PLUS: Sharp slabs for thermal insulation of tiled roofs
Neocoat
The thermal insulating material of the future is called Neocoat. Neocoat is produced from Neopor®, a product of intensive research by BASF® and is a new innovative material made of expanded polystyrene. It has a silver grey colour and offers significantly improved thermal insulation performance compared to conventional thermal insulation materials.
Innovation in Insulation
In any material, heat is transmitted by conduction, convection and radiation. In closed cell materials such as Expanded Polystyrene (EPS) there can be no air movement and thus heat transfer by conduction is minimised.
Therefore, in conventional Expanded Polystyrene, heat transfer is mainly by convection and radiation. In Neocoat the tiny graphite molecules contained by 3% in its composition act as reflectors that prevent heat transfer by radiation, allowing only convection to contribute to heat loss. As a result, thermal insulation boards made from Neopor® have 15% - 20% better thermal insulation properties than conventional white Expanded Polystyrene (EPS).
With the exception of its improved thermal insulation performance even at low densities compared to Expanded Polystyrene (EPS), Neocoat retains all the advantages of the mechanical and ecological properties of EPS.
Neocoat is produced from self-extinguishing material which contains flame retardants (HBCD Free).
Advantages
Neocoat presents:
Dimensional stability
Resistance to bacterial and fungal outbreaks
Zero nutritional value for insects and rodents
Zero toxicity
Self-extinguishing behaviour in the fire
100% recyclable
Why Neocoat
Neocoat has the lowest coefficient of thermal conductivity (λ = 0.031 W/m K) of all foam plastics.
It meets the specifications of EN 13163:2015 "Thermal insulation products for buildings - Factory production of expanded polystyrene products".
Sound insulating rubberized cut boards made of graphite Self-extinguishing Expanded Polystyrene (EPS) for floating floors
Sound absorption: ΔLw = 26 - 28 db
Coefficient of thermal conductivity: λd = 0,031 W/mK
Thermal resistance for thickness d=20mm: Rd = 0,645 m2K/W

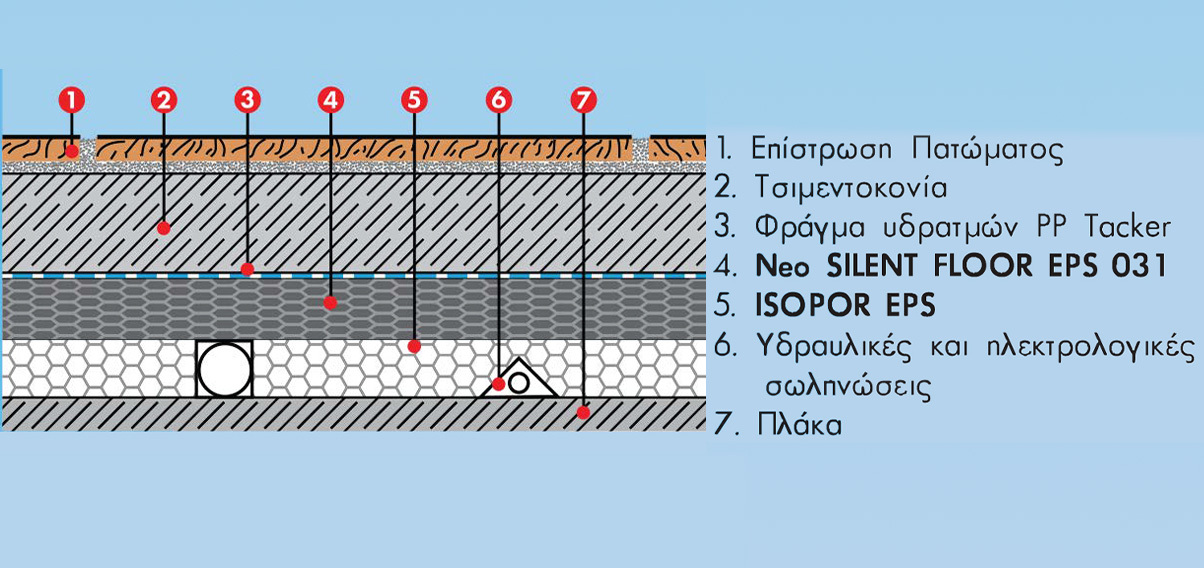

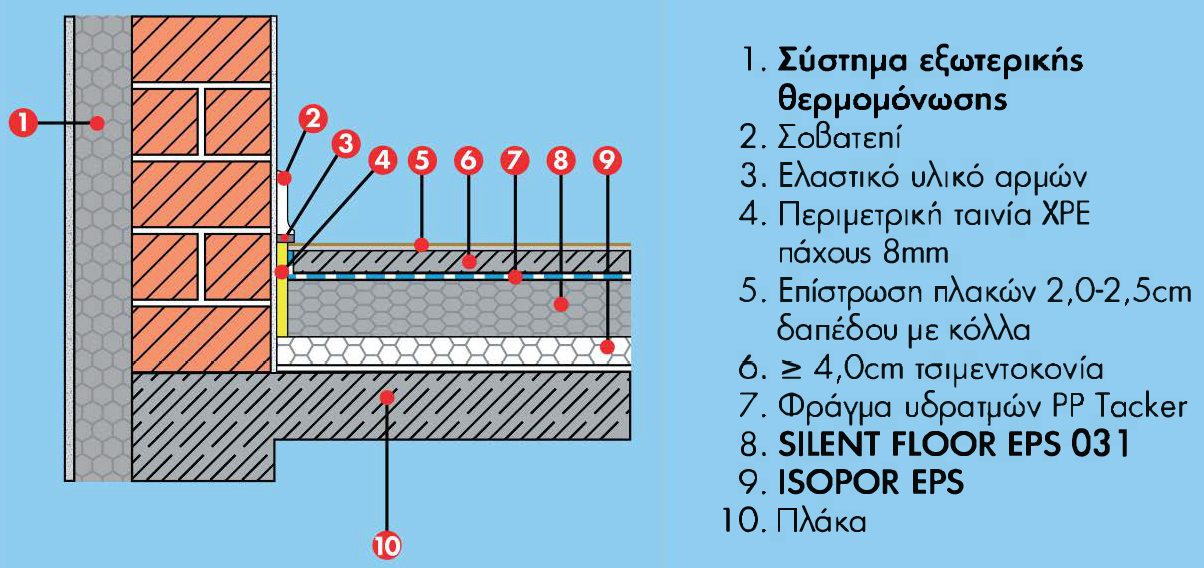

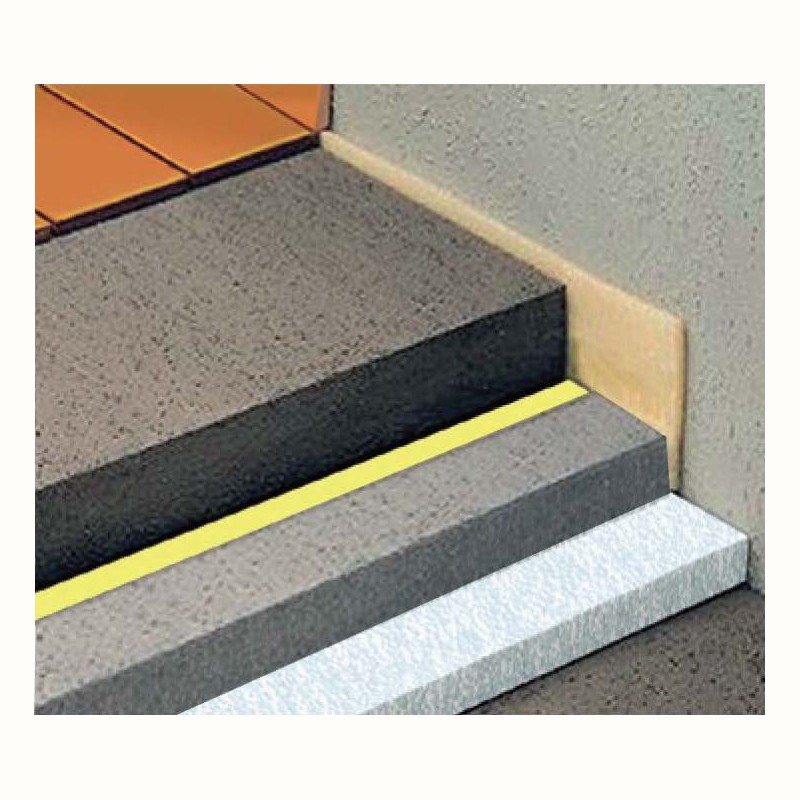

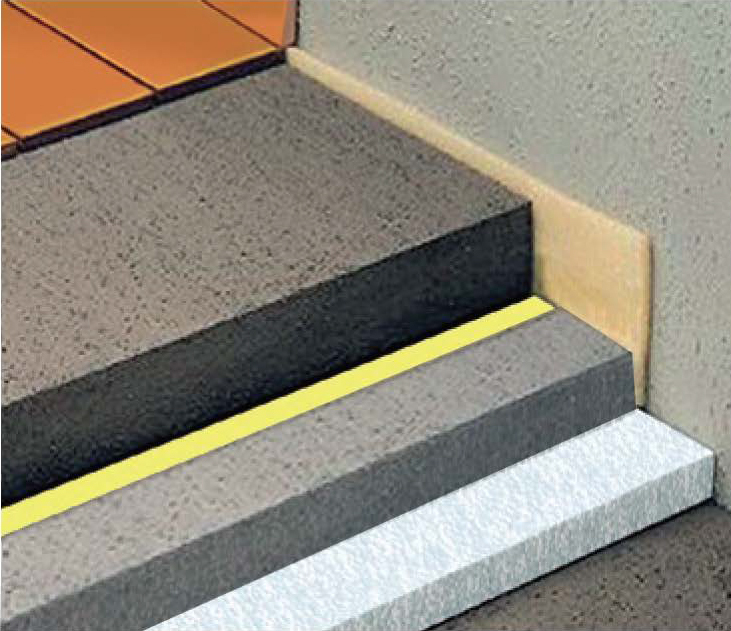

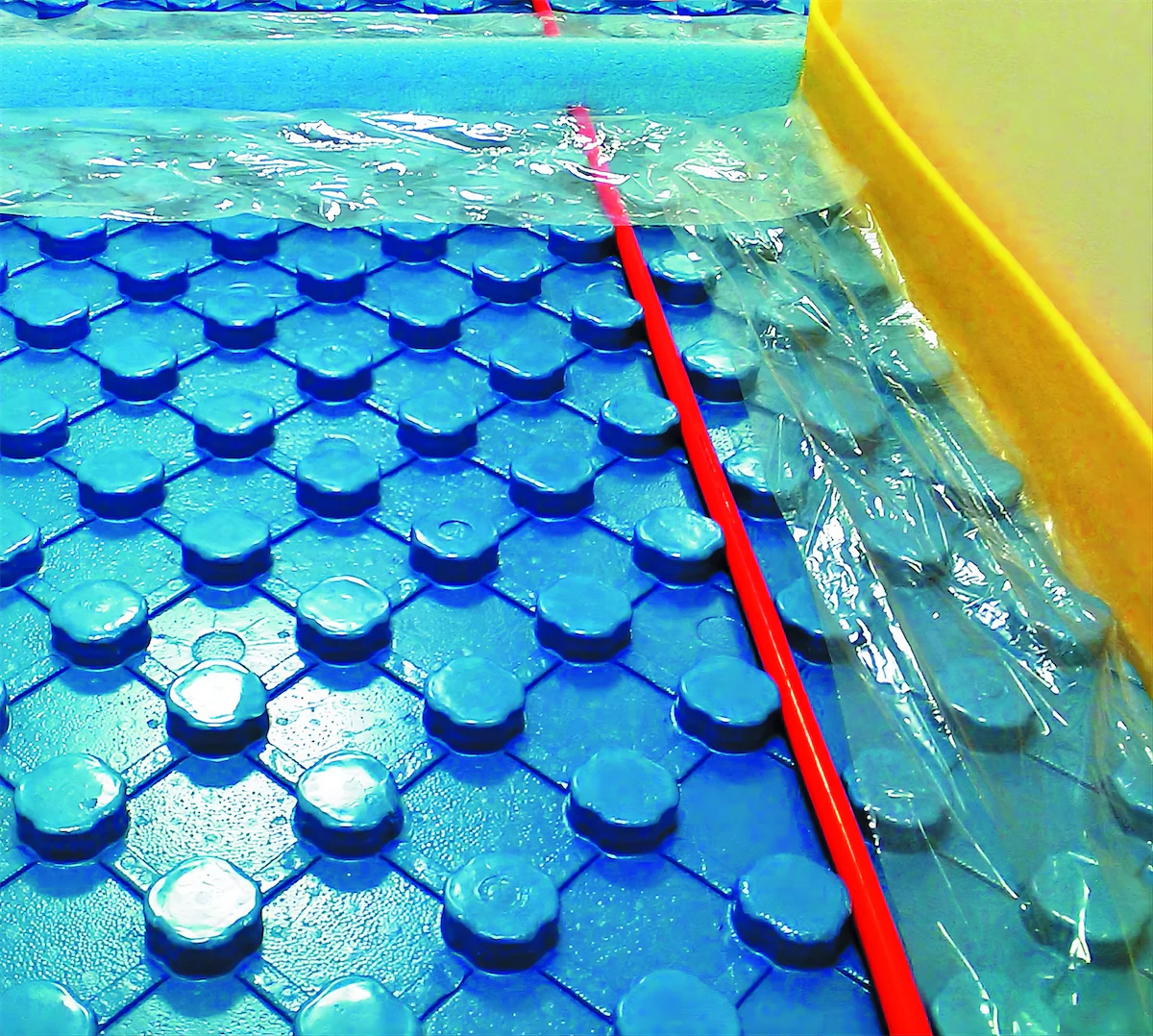

SOUND INSULATION OF IMPACT NOISE IN FLOATING FLOOR STRUCTURES WITH NEOSILENTFLOOR
Tolerable noise levels in living spaces are a prerequisite for good health. Impact noise from walking, shifting of appliances and furniture, poorly-fitted appliances, etc. can be particularly annoying in modern buildings when the horizontal and vertical partitions of apartments are not properly soundproofed.
The necessary sound insulation from impact noise cannot be achieved simply by, for example, installing double glazing to reduce external airborne noise. The best and simplest solution, n which can be easily and economically implemented, is a floating floor, which reduces the transmission of noise from movement on the floor and also helps to reduce any further transmission through the air to the surrounding area.
The NEOSILENT FLOOR, thanks to its physical properties (low dynamic stiffness), is recommended for sound insulation of impact noise and is available for noise reduction in floating floor applications. NEWSllent floor is available in 1 type and a variety of thicknesses. The 031 produced from Neopor material of BASF, makes the best thermal insulation and covers loads of residential buildings, but also of the tertiary sector such as churches, schools, cinemas and restaurants.
MOUNTING INSTRUCTIONS
Heating pipes, water pipes, electrical pipes, etc. should be fully covered with 15mm thick sound insulation plates as a minimum, to eliminate sound bridges. Before the floor is constructed, a perimeter expansion joint should be made of 8mm self-adhesive soundproofing tape on the wall side, with an integrated PE sheet to hold the cement mortar in place during the concreting phase.
NEOSILENT FLOOR soundproofing boards must be covered with a thin protective layer as a vapour barrier made of knitted PP Tacker fabric. The cement mortar covering NEOSILENT FLOOR shall be reinforced with Pavitec galvanized mesh with 50mm barrel. If underfloor heating is applied, then NEOSILENT FLOOR will be installed under the ISOFLOOR 75 - 25 EPS 150 slabs of the underfloor.
Finally, between the floor and the skirting board, soundproofing materials are placed that allow the floating floor to move for a minimum of 5mm on the vertical axis.

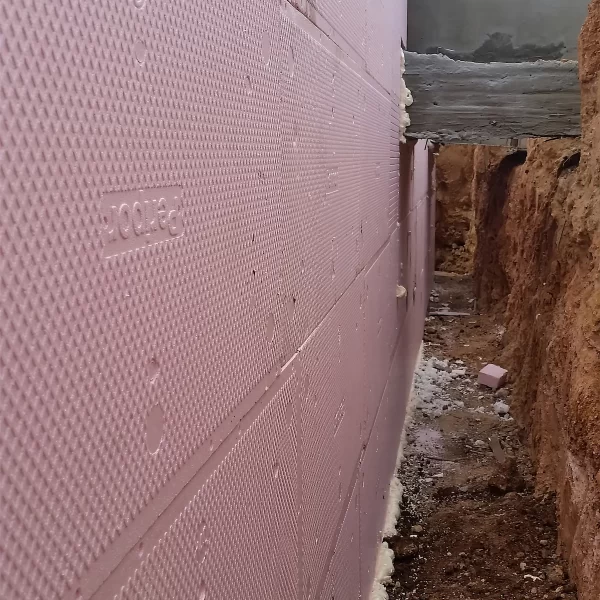

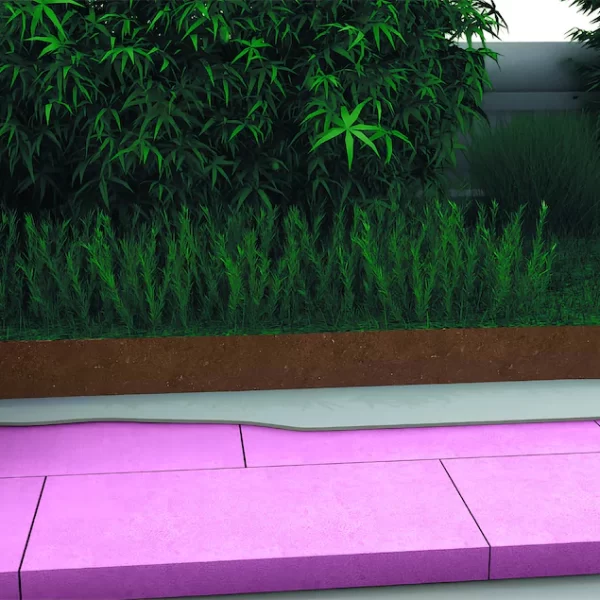

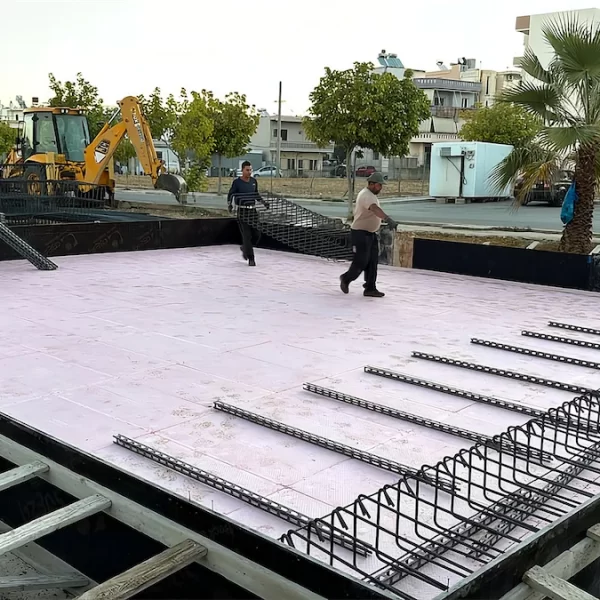

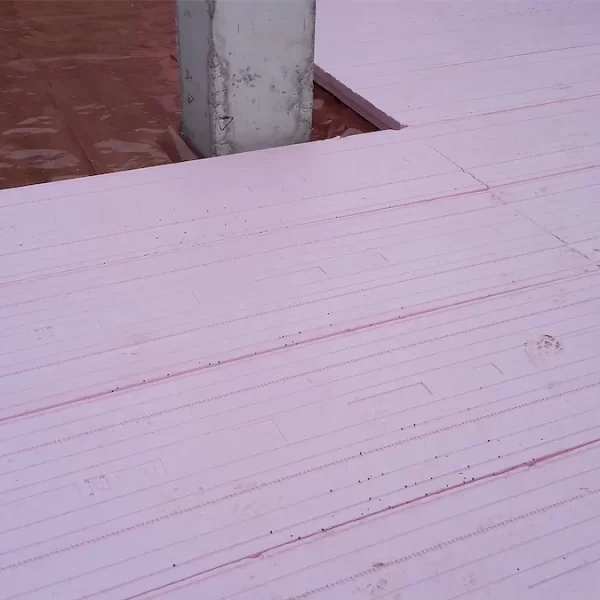

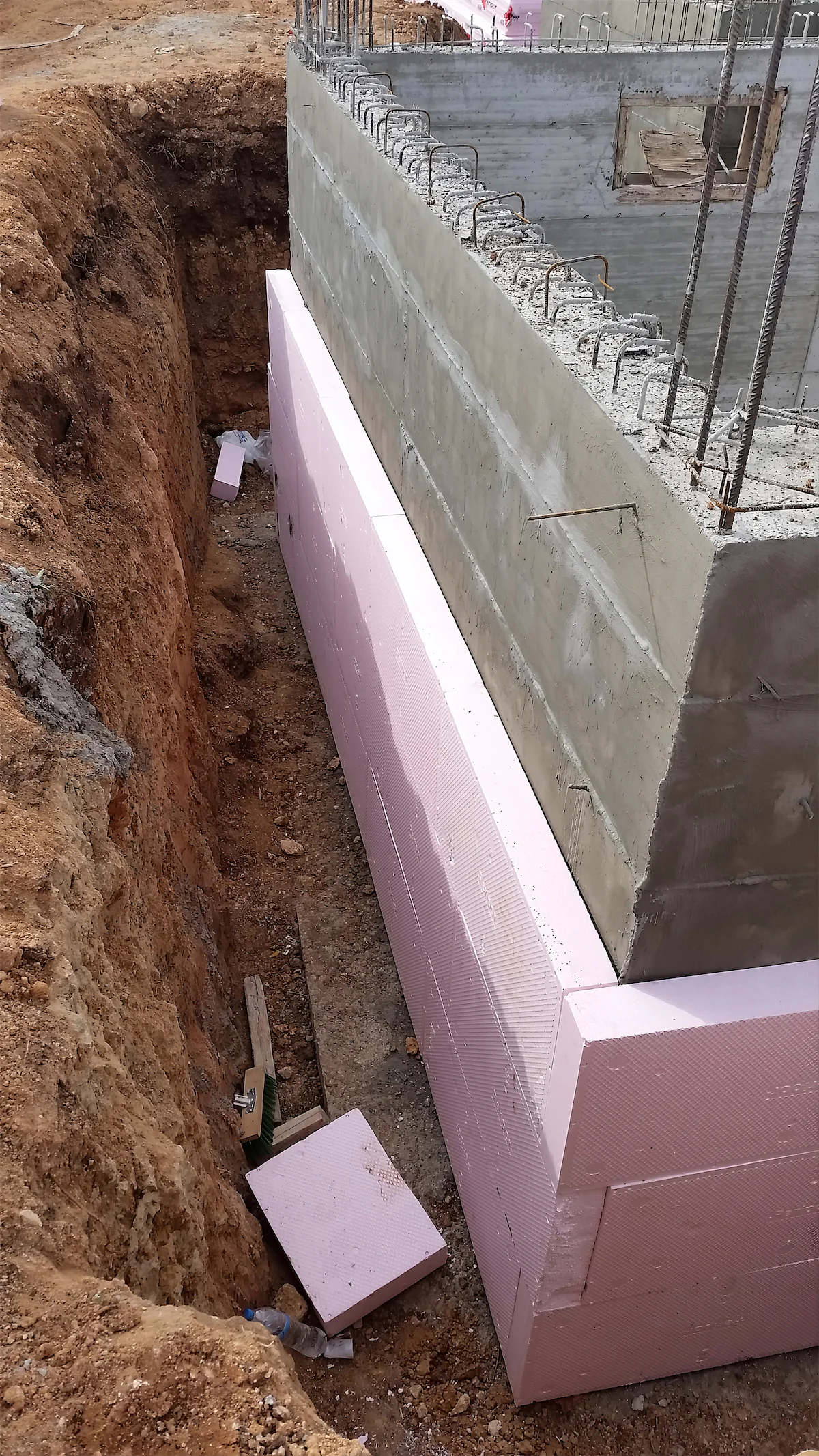

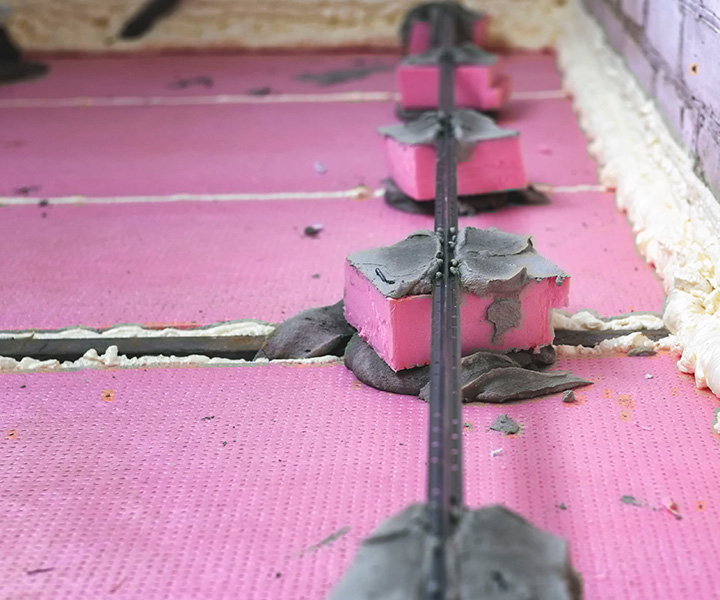

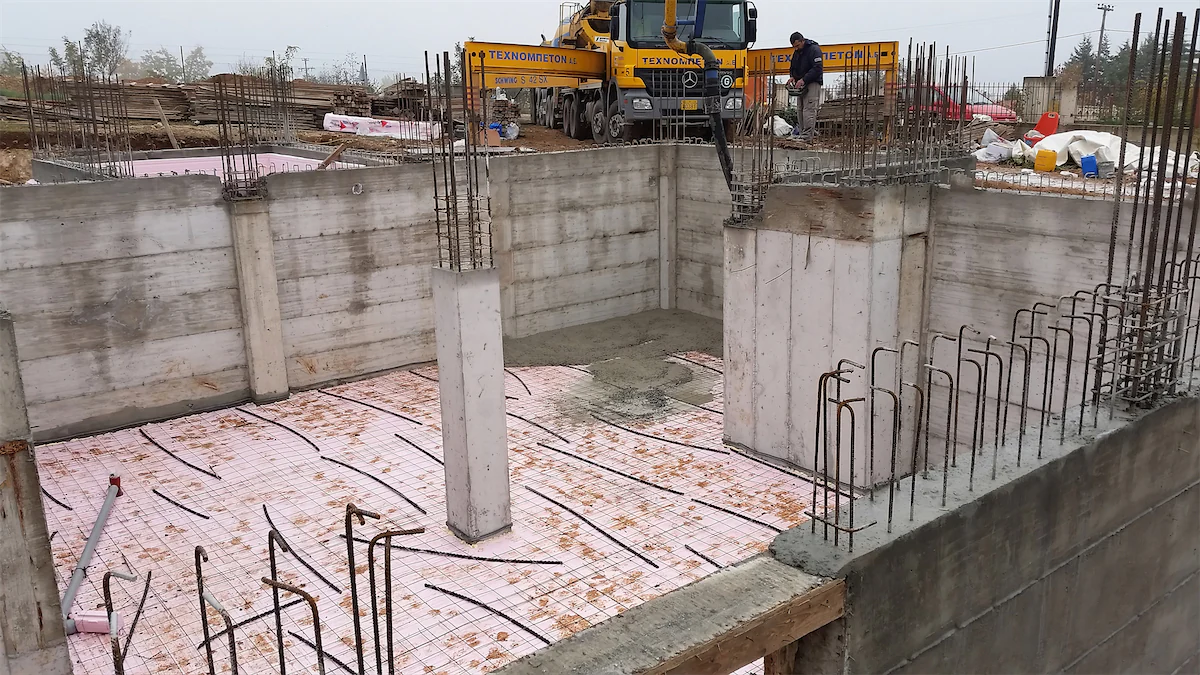

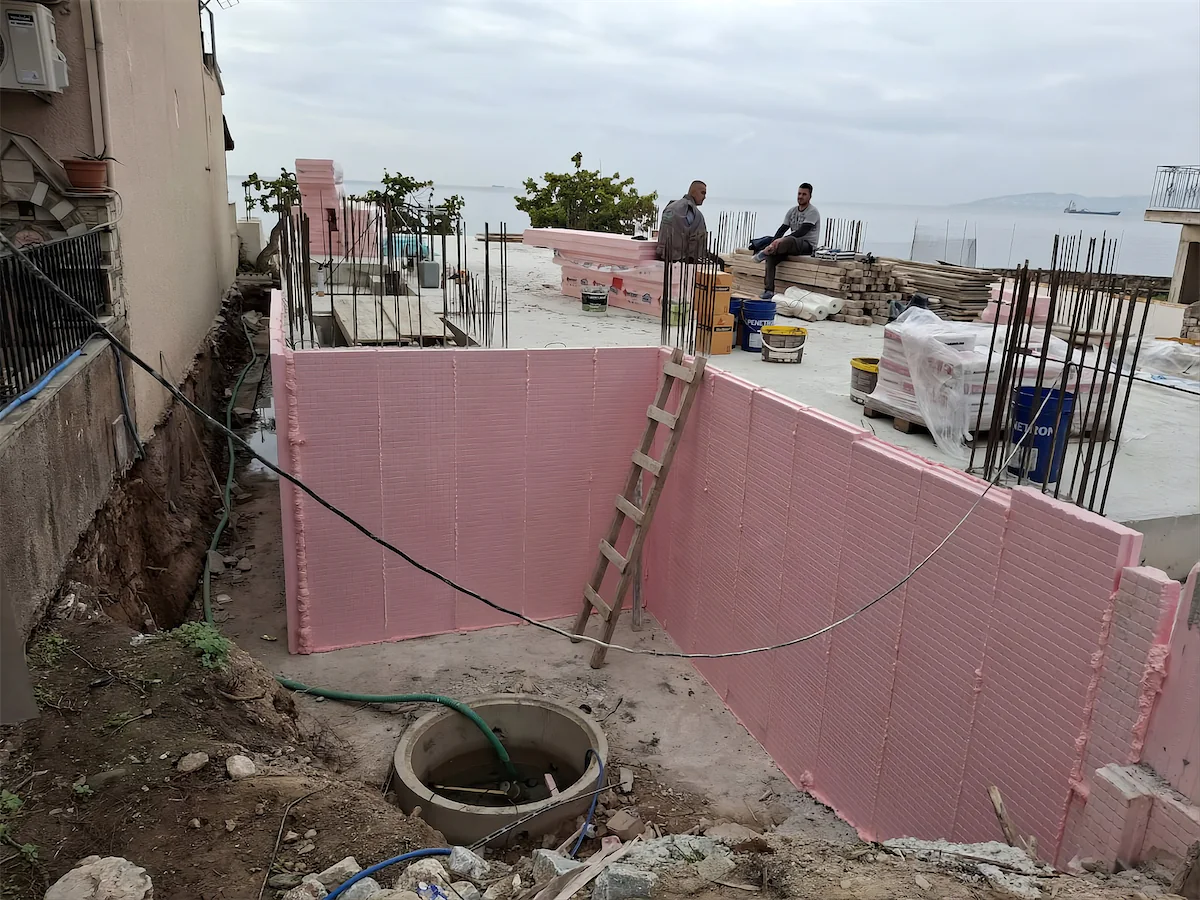

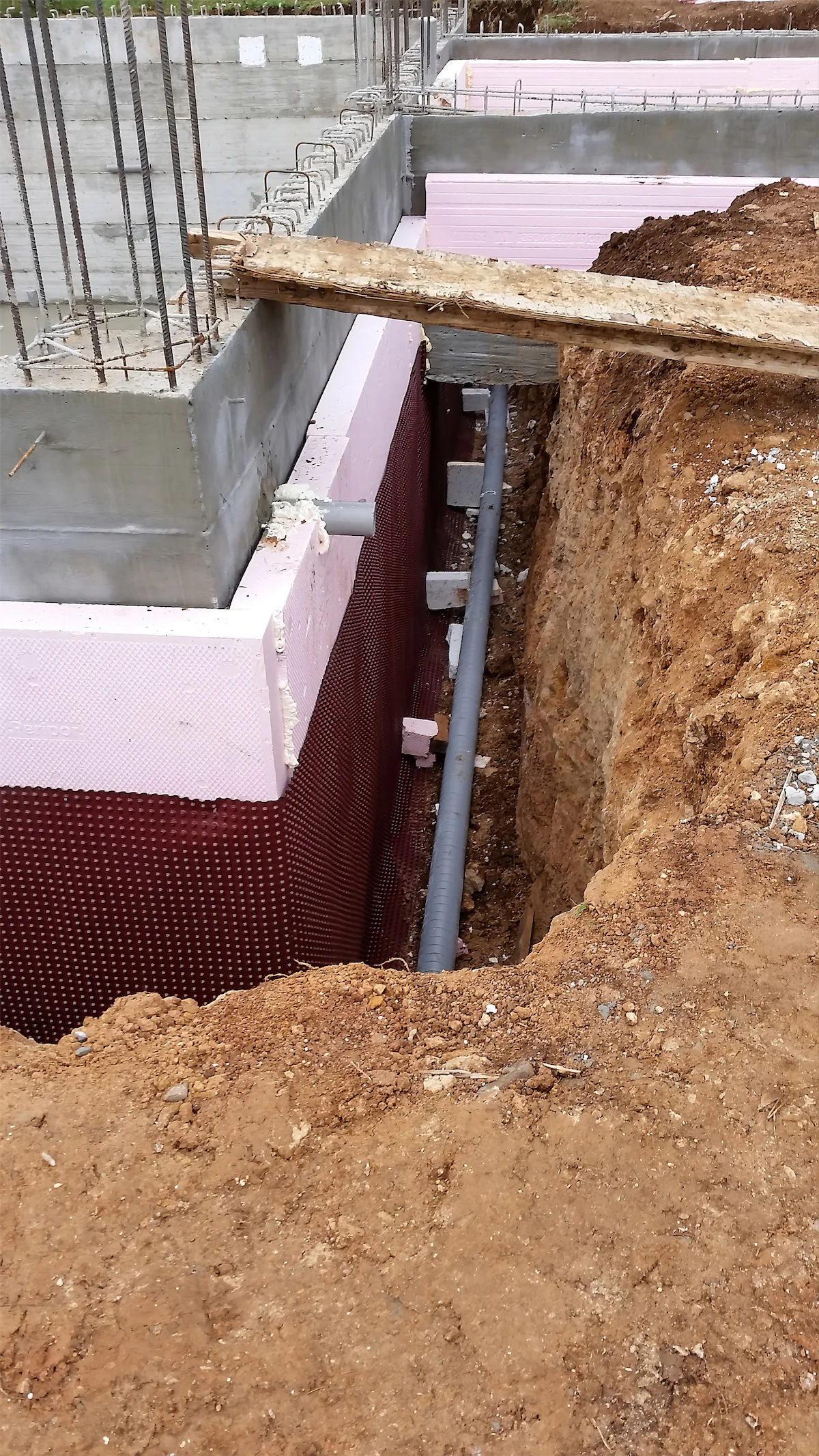

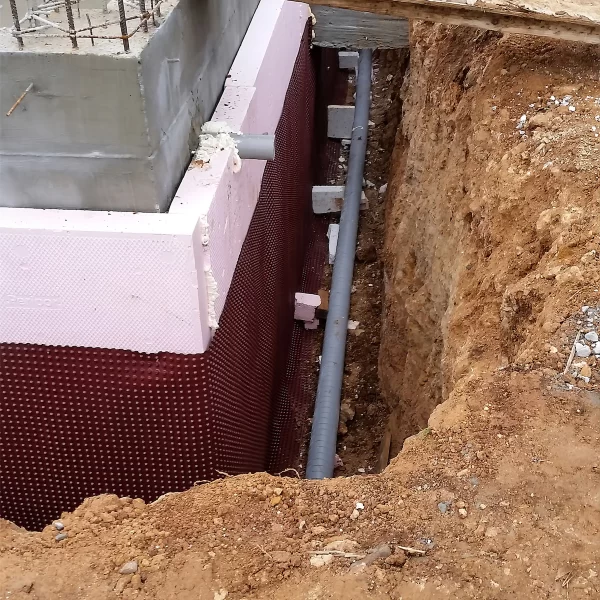

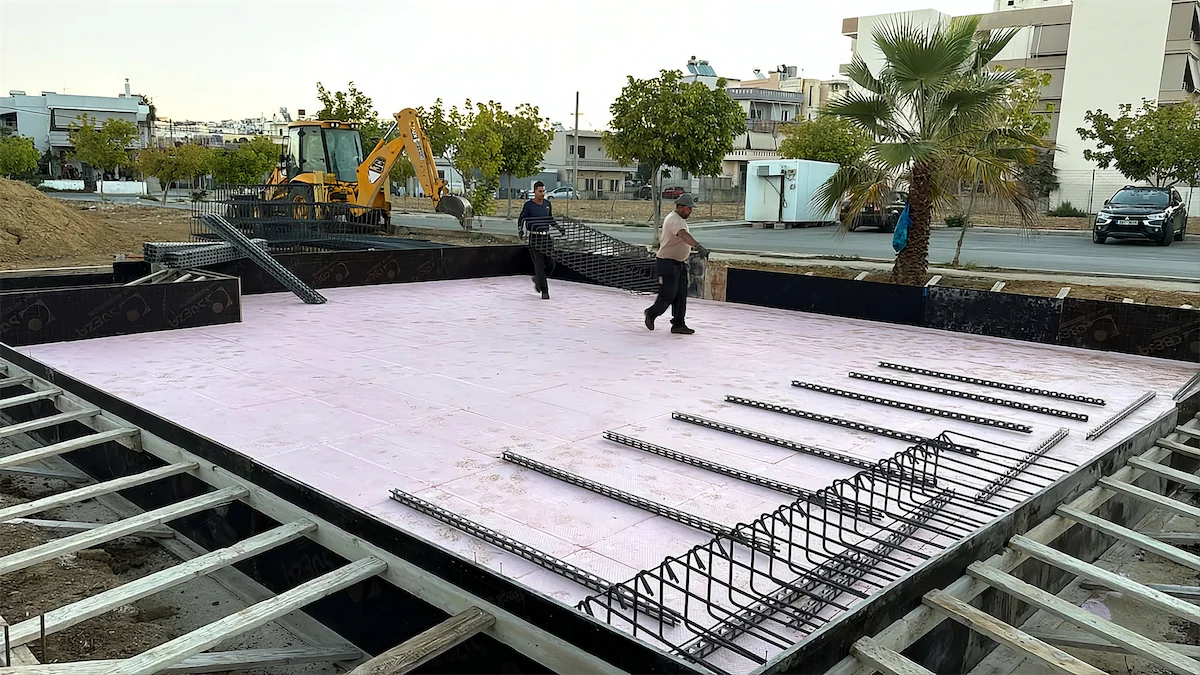

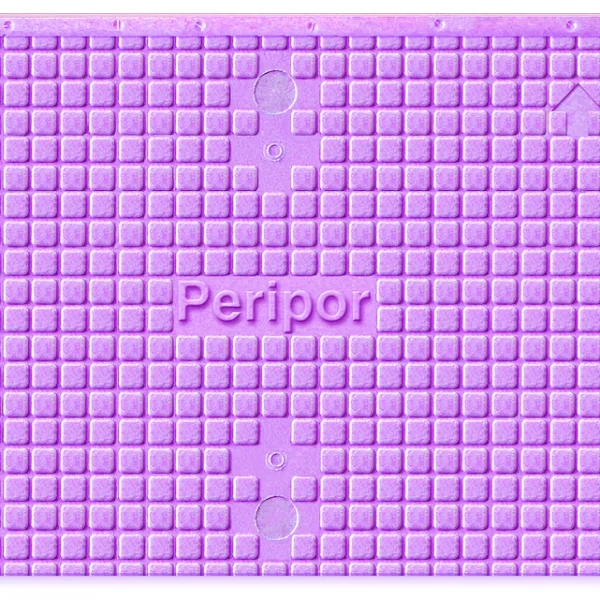

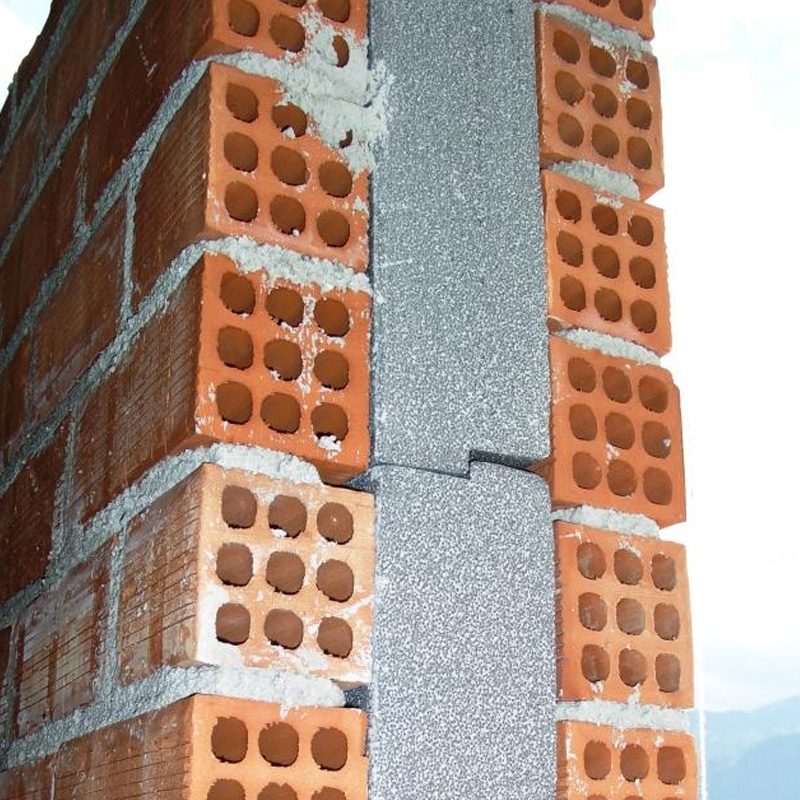

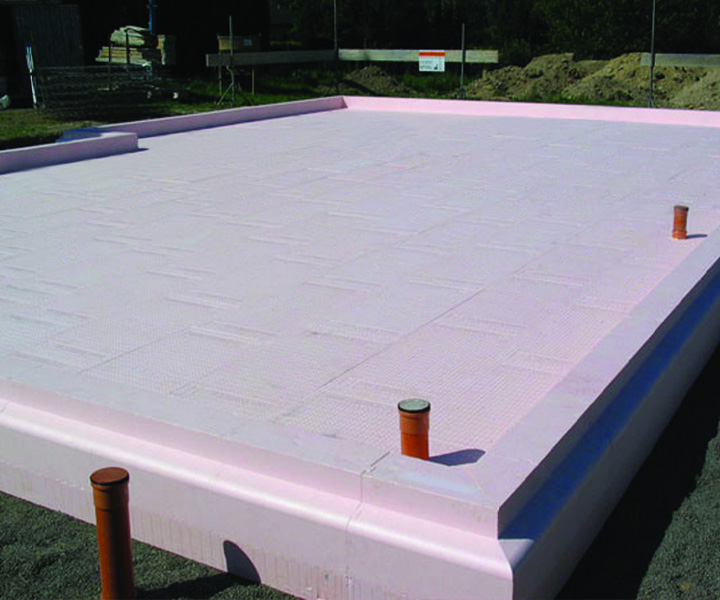

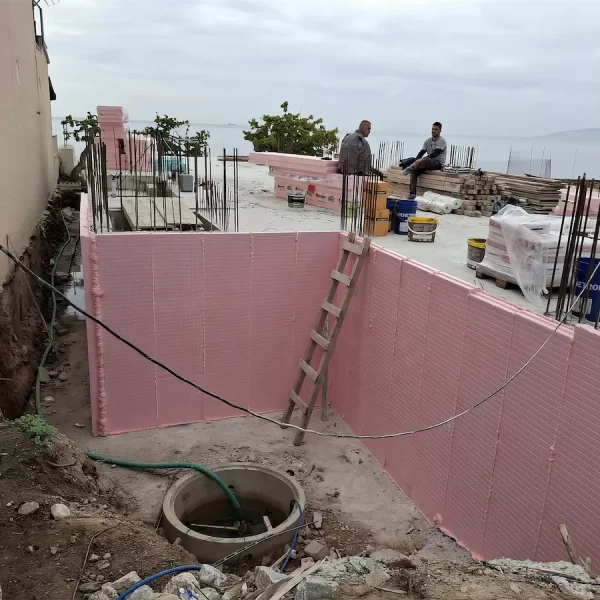

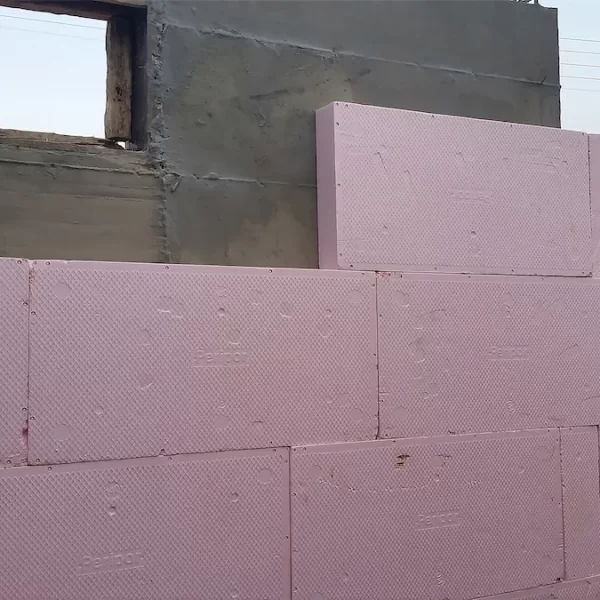

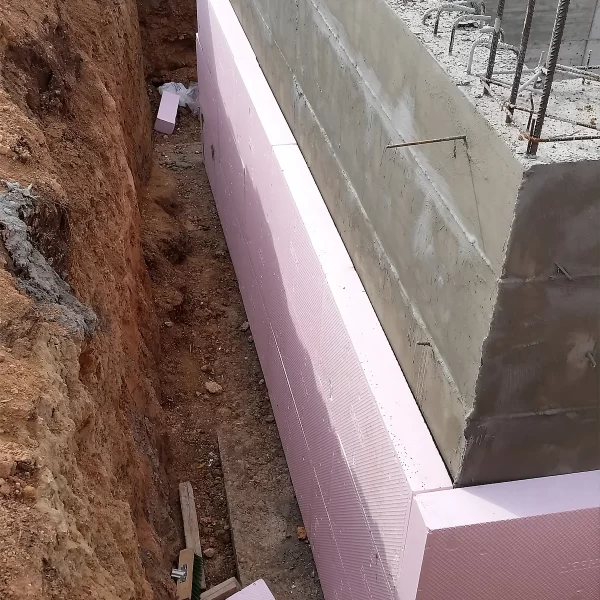

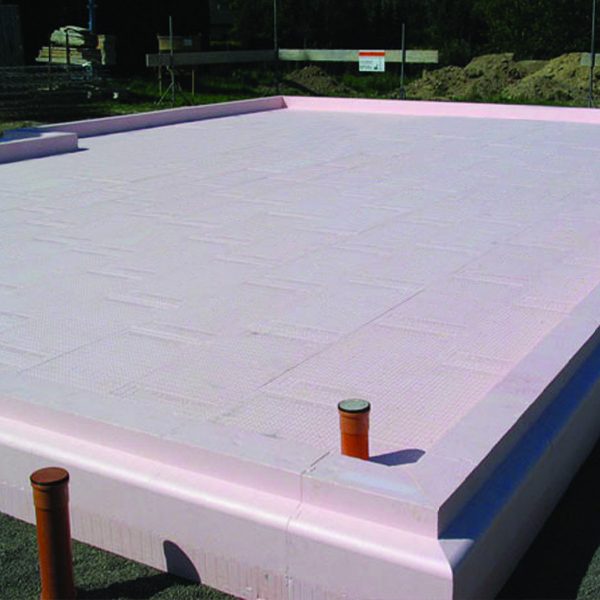

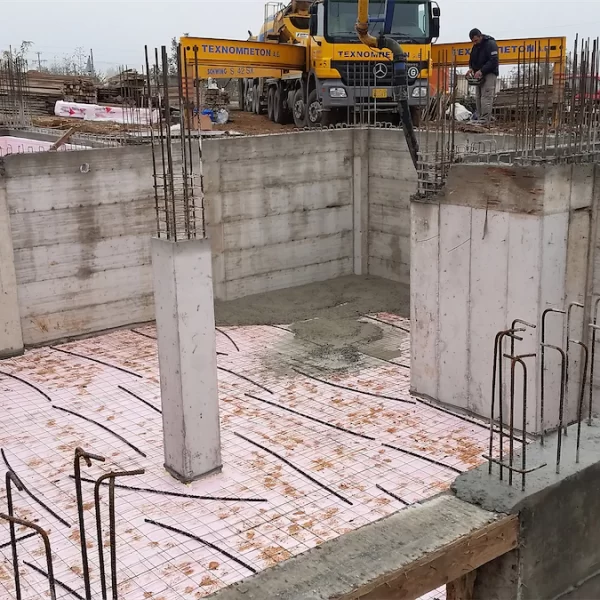

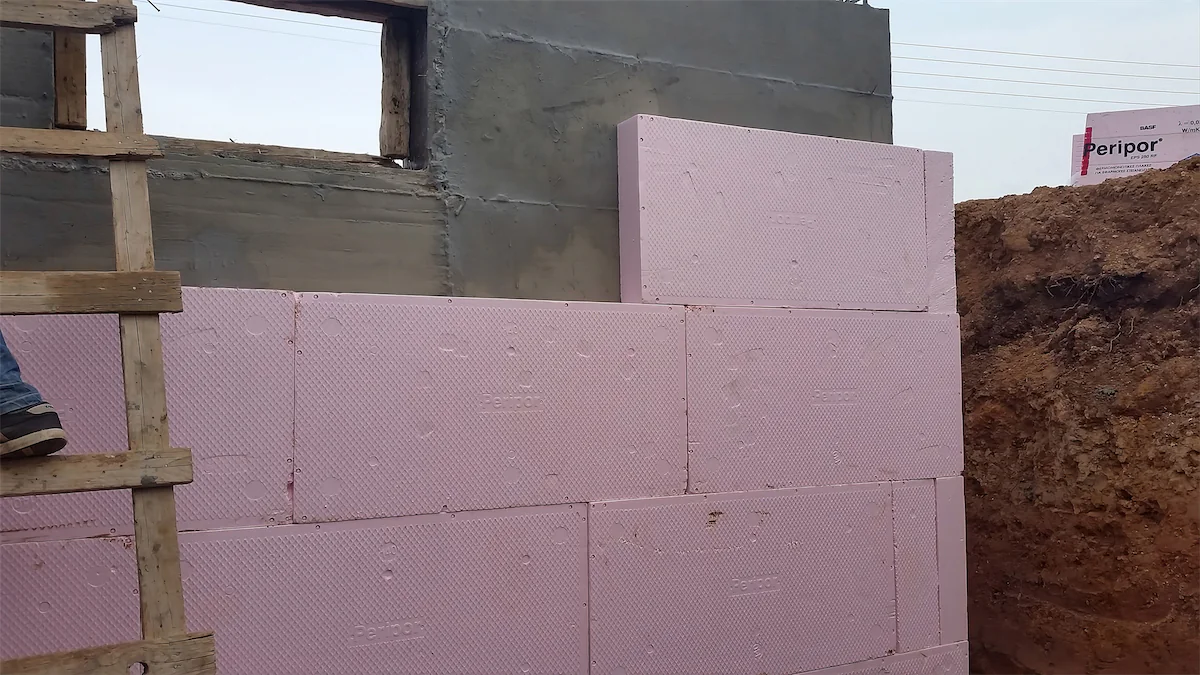

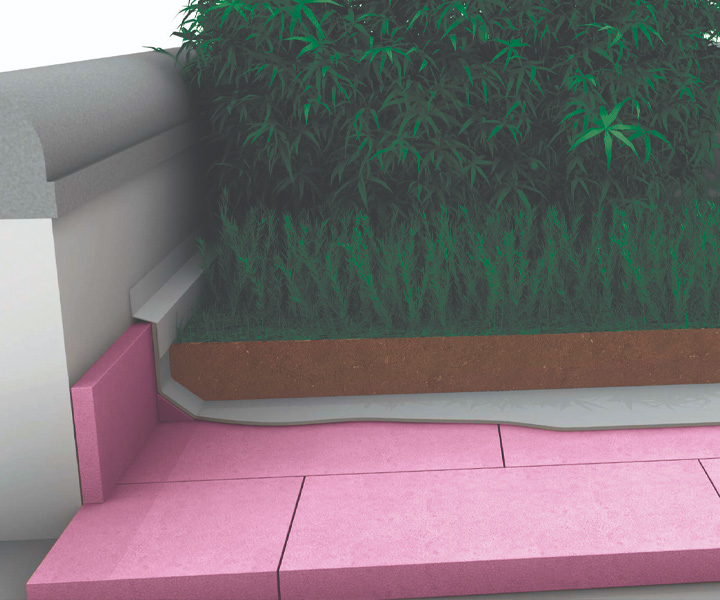

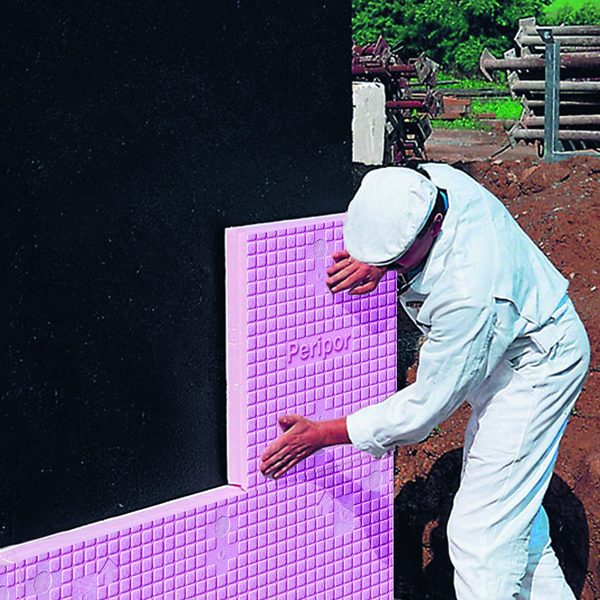

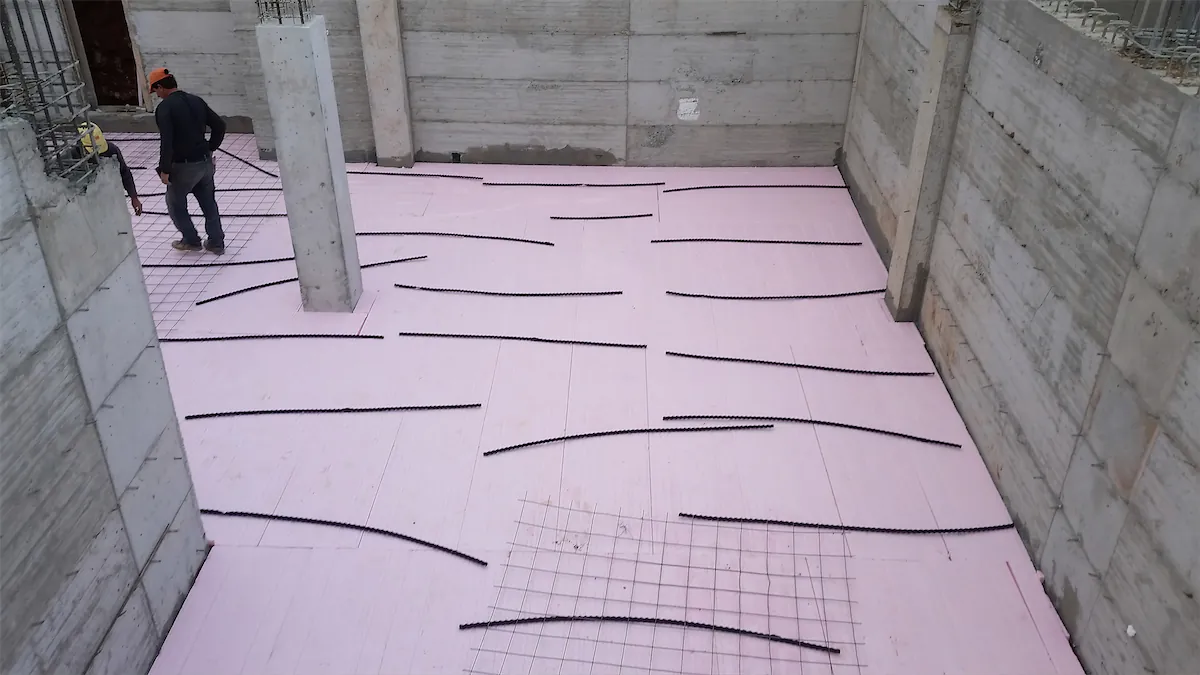

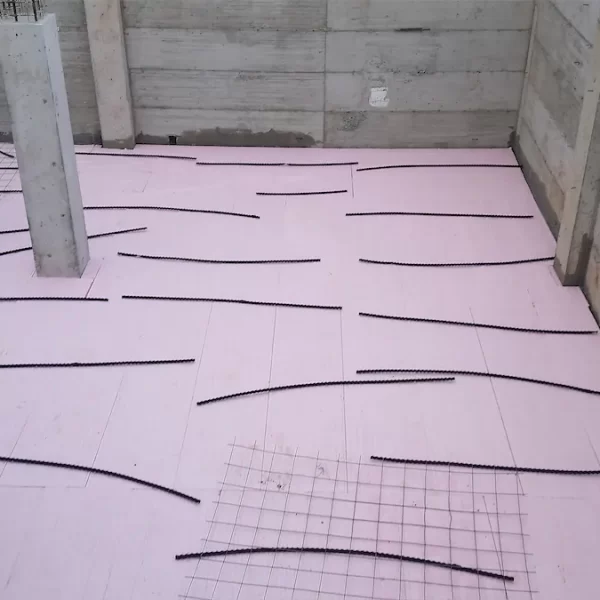

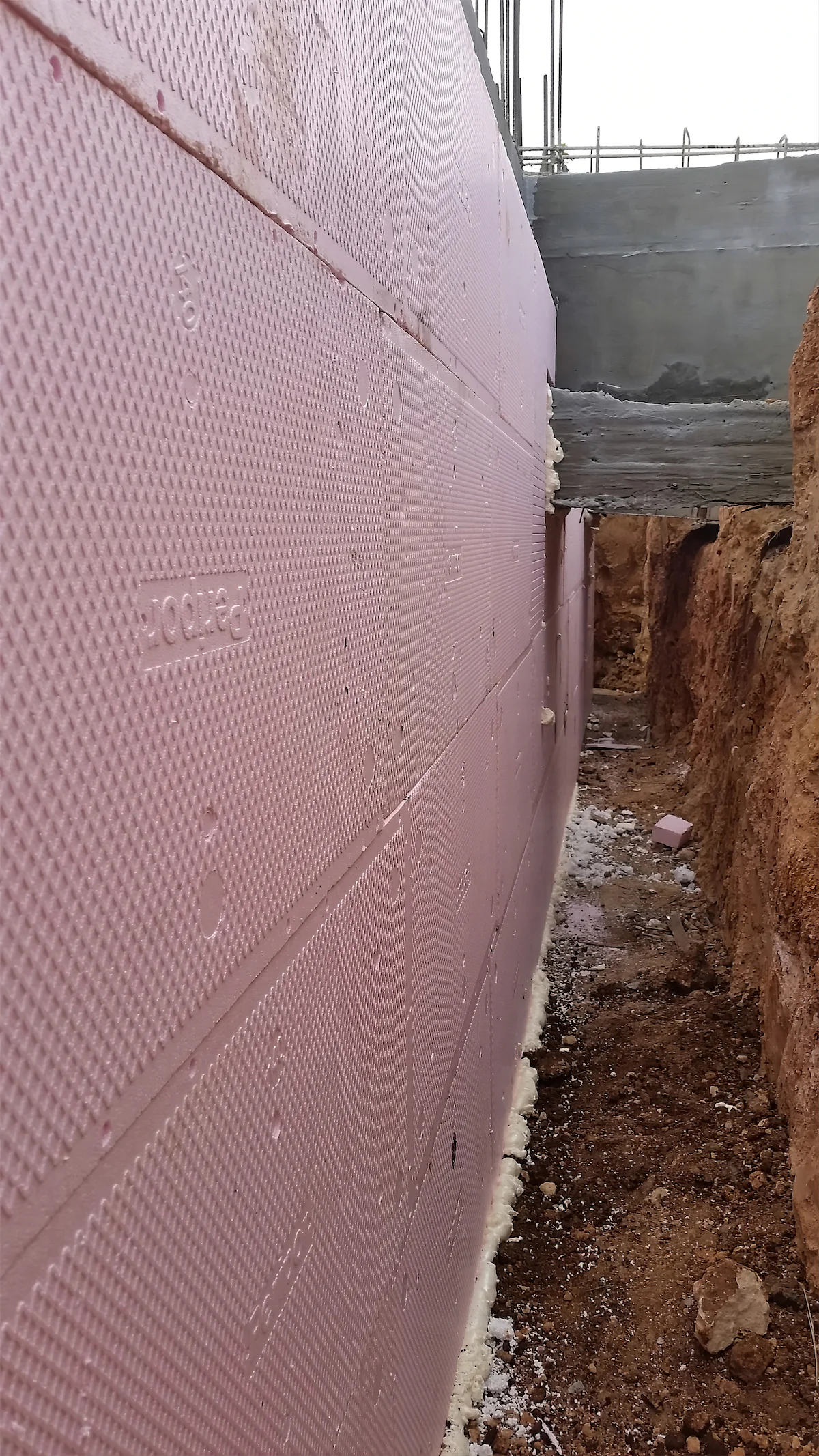

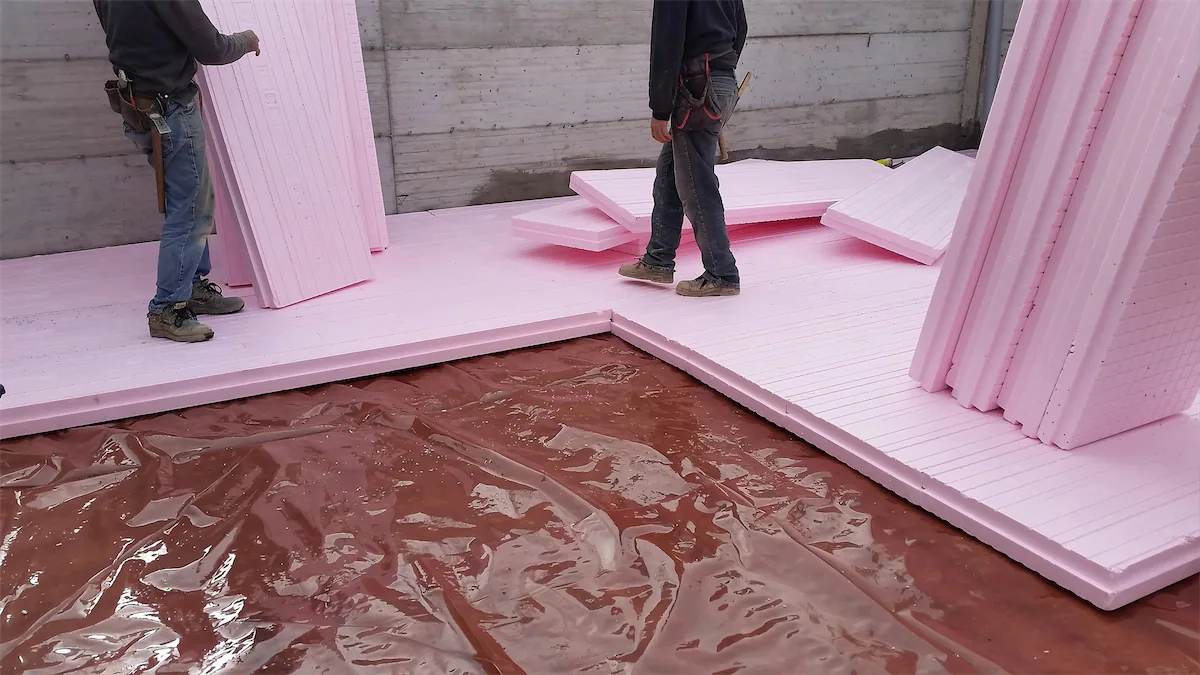

Thermal Insulation Boards for Rooms, Foundations and Peripheral Underground Cavities
Coefficient of Thermal Conductivity
λd = 0.033 W / m K
Thermal resistance for thickness d = 50 mm
Rd = 1,515 m2 K/W

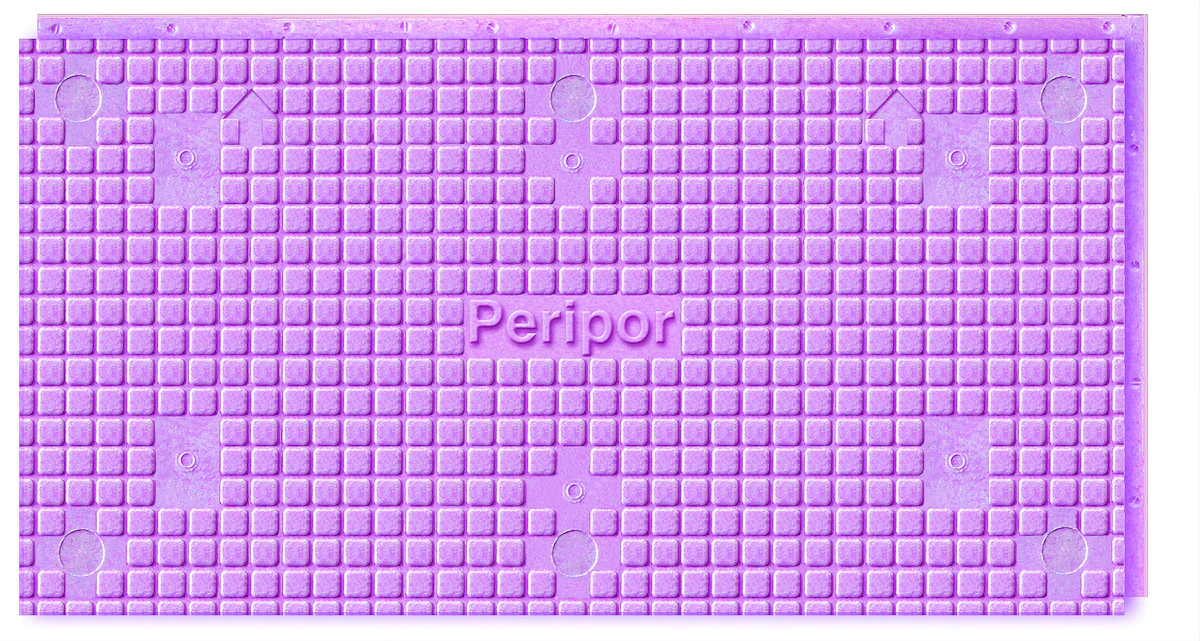

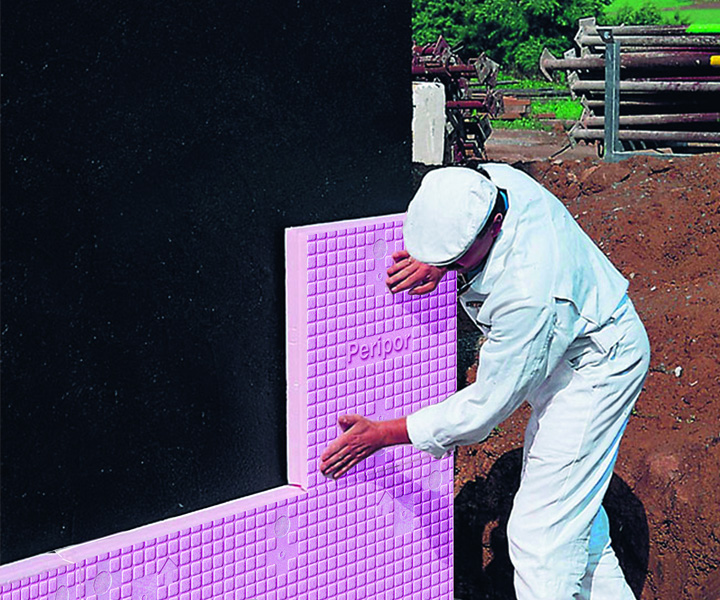

Peripor thermal insulation boards are the result of intensive research by BASF and are a new innovative material of Expanded Polystyrene (EPS). They are pink in colour and offer significantly reduced moisture absorption compared to conventional thermal insulation materials. Peripor is self-extinguishing Expanded Polystyrene of high density and low water absorption.
It is produced according to the specifications of EN 13163:2015 and has ISO 9001:2015 certificates for its production and CE marking. Due to its high compressive strength (250kpa at 10% of deformation) and its practically zero water absorption it can be used in thermal insulation and waterproofing applications up to 6 m depth.

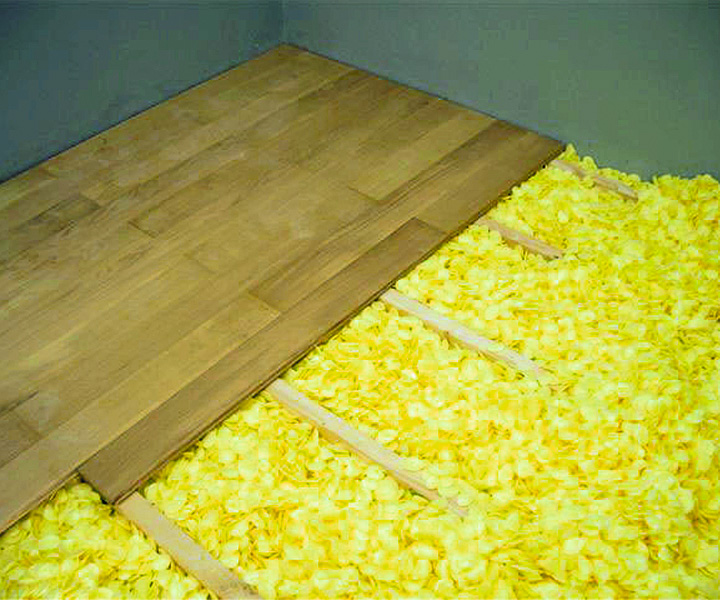

Sound Insulating Filling of Wooden Floors with Special Granules of Self-extinguishing Expanded Polystyrene (EPS)
Coefficient of Thermal Conductivity:
λ = 0,056 W / mK
Thermal resistance for thickness d=50mm
R = 0,893 m2K / W
According to the Building Regulations, buildings must be designed and constructed to protect occupants from all forms of noise within the boundaries of their dwelling, when the noise does not originate from them.
DIN 4109 distinguishes between two ways in which sound is transmitted. By airborne transport (airborne), usually external building noise, and by solid-borne transport (impact noise), usually internal building noise. Impact noise, which can be caused by walking, displacement of appliances and furniture, poorly seated appliances, etc., can be particularly annoying in modern buildings, since to date, horizontal and vertical structural elements have rarely been thoroughly soundproofed.
The necessary sound insulation from impact noise cannot be achieved simply by, for example, installing double glazing to reduce external airborne noise.
STYROFILL is the only easy and economical way to fill wooden floors without unpleasant surprises. Due to its special characteristics (it does not absorb moisture and odors, does not preserve fungi, does not mold, does not itch the craftsman who places it, allows the ventilation of wood and does not preserve the flame) is an ideal solution to the problem of sound insulation of floors from impact noise, while offering thermal insulation.
It is used in nailed wooden floors (by filling the gaps it eliminates the noise caused by the drumming created by the floor by stepping or falling objects) and after a relevant test, it has a certificate from the National Technical University of Athens - Technical Materials Laboratory - Laboratory of Sound Engineering, stating that it has a Sound Insulation Capacity Lnw = 53 dB. The results have shown that in order to obtain satisfactory performance in sound insulation of wooden floors, STYROFILL should be combined with elastic gaskets (details can be found in the technical characteristics brochure).

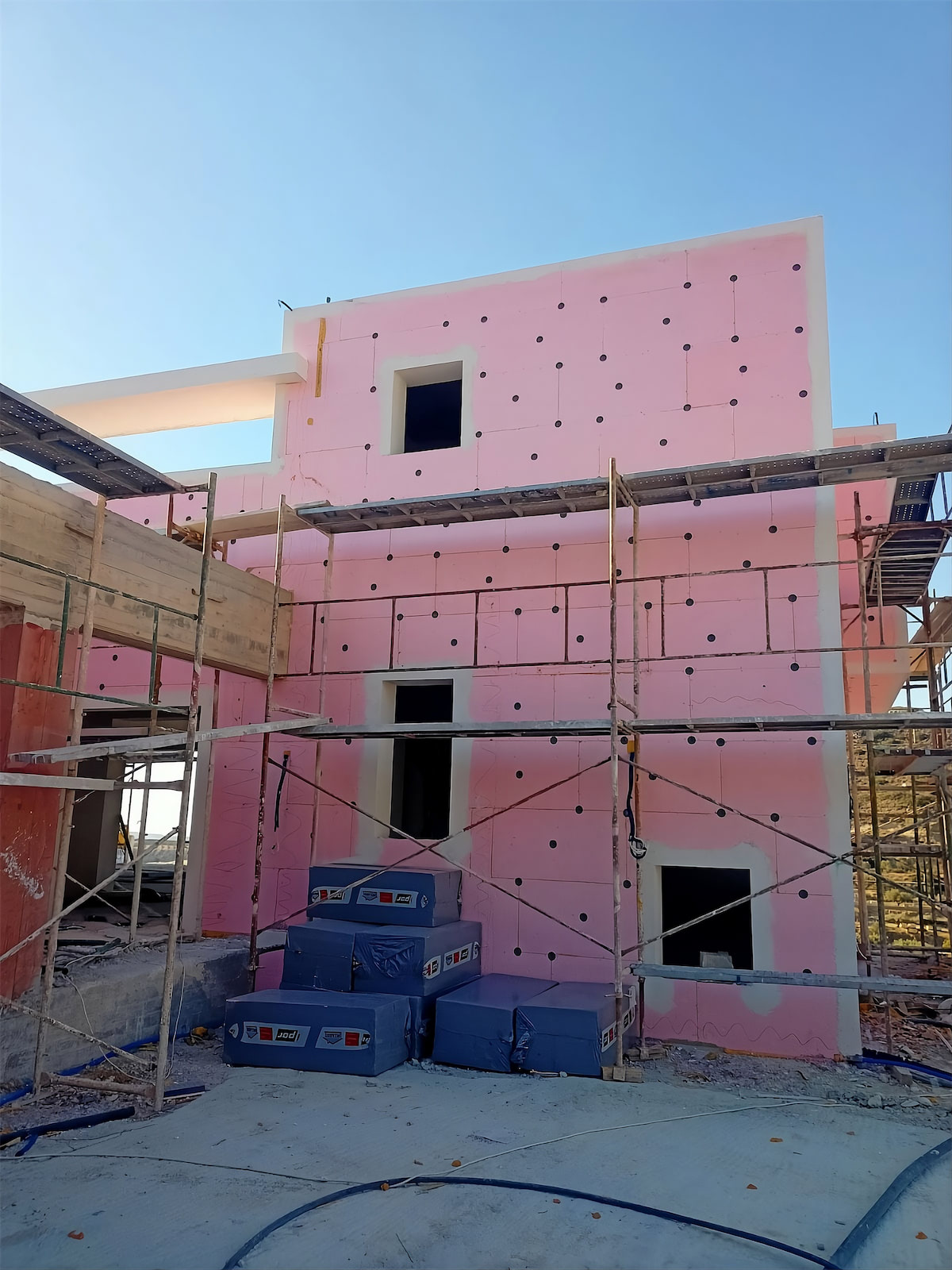

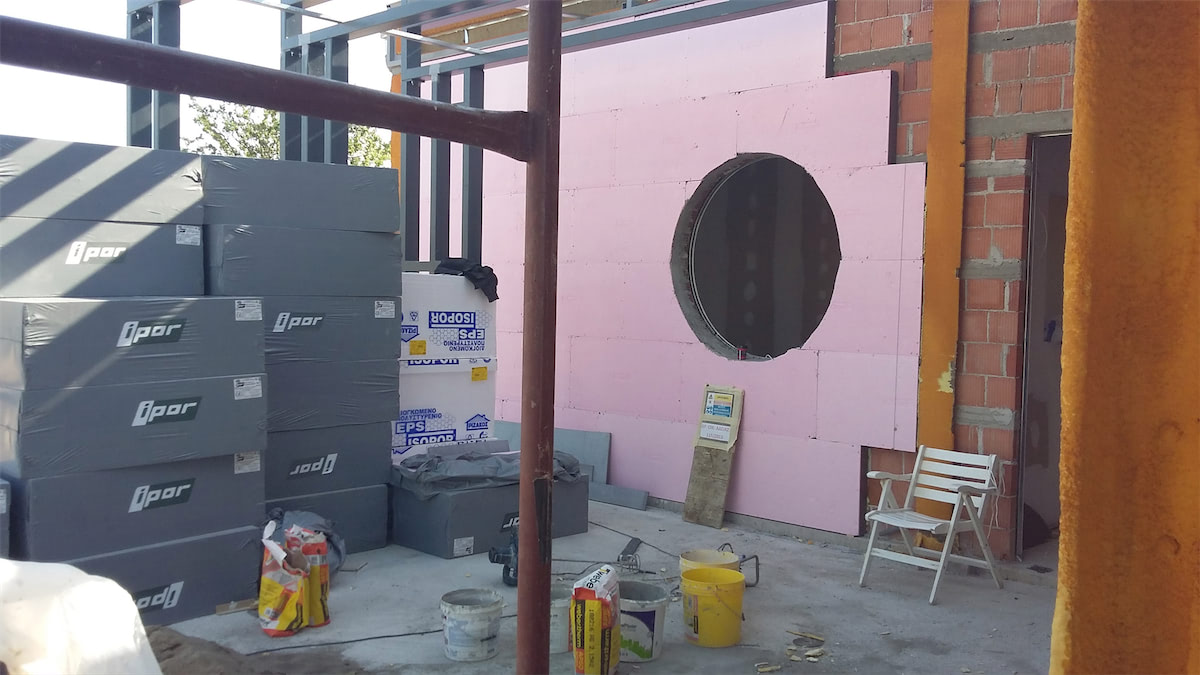

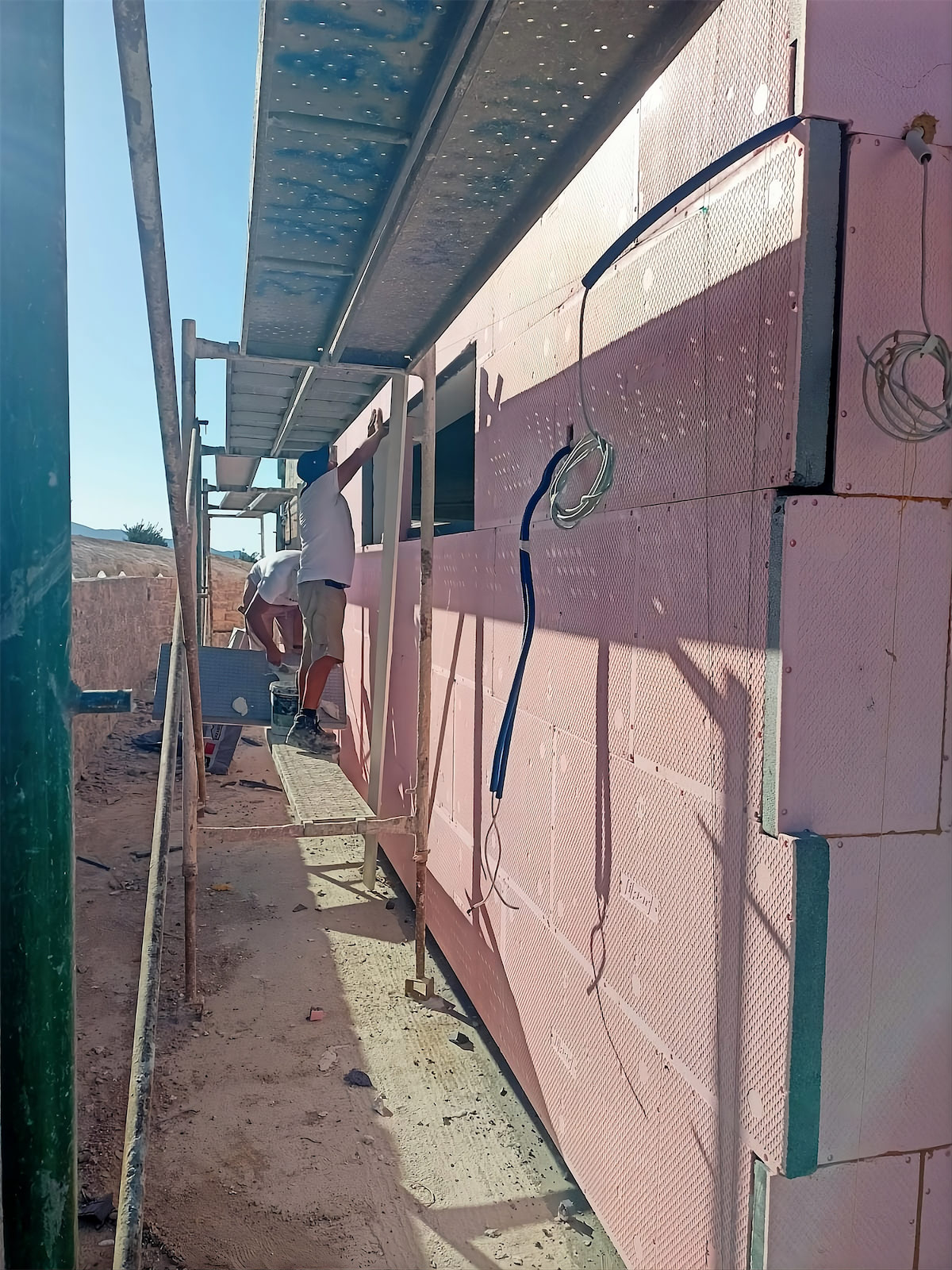

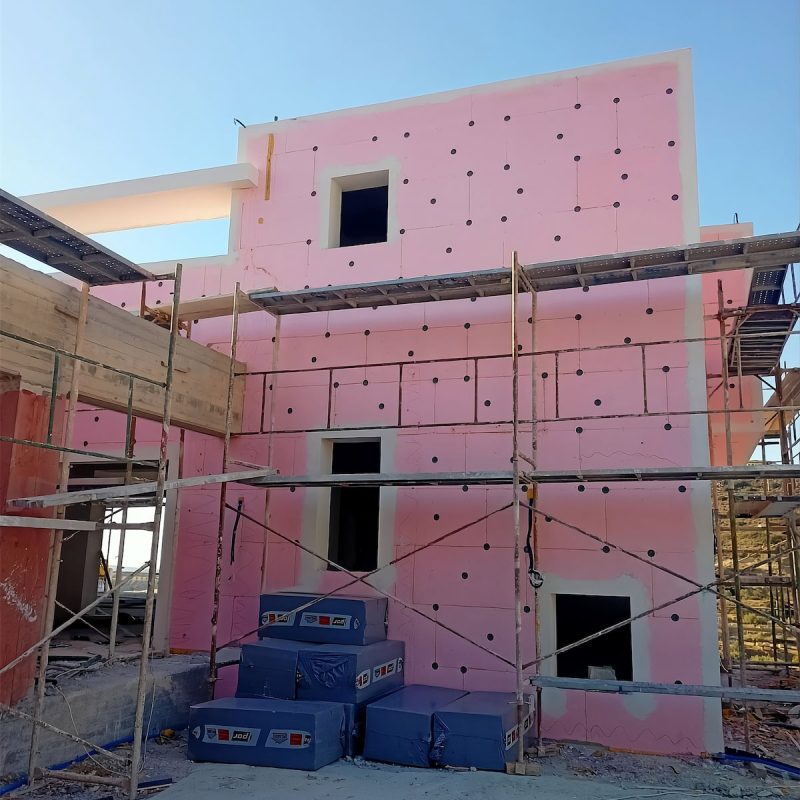

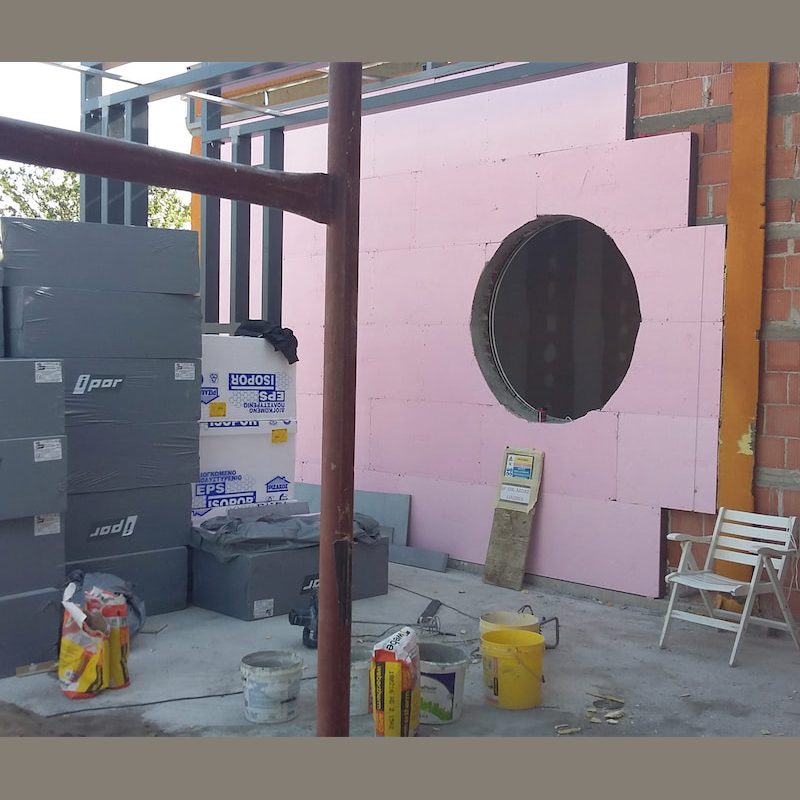

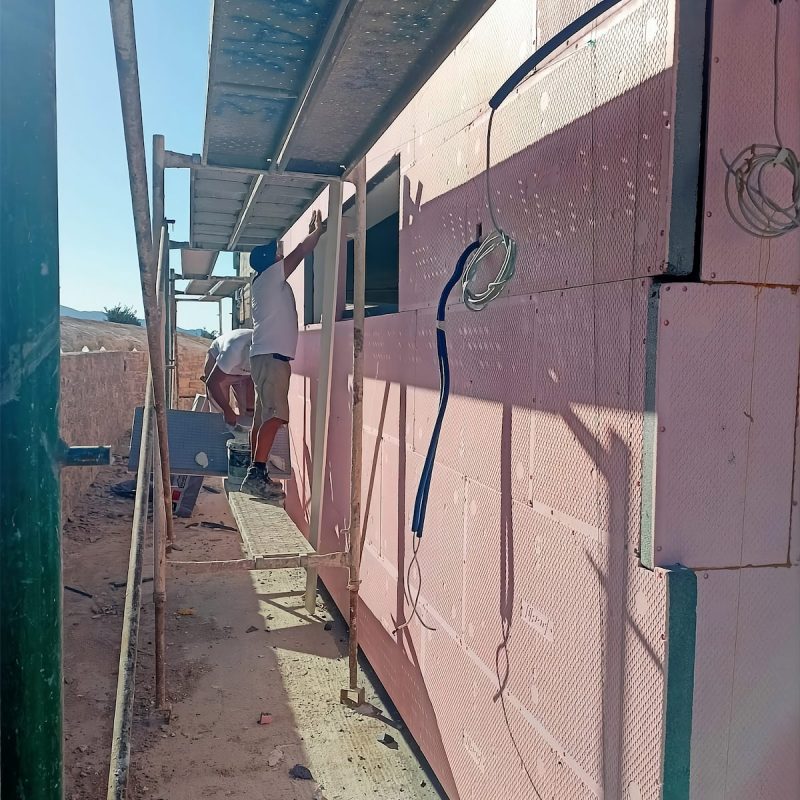

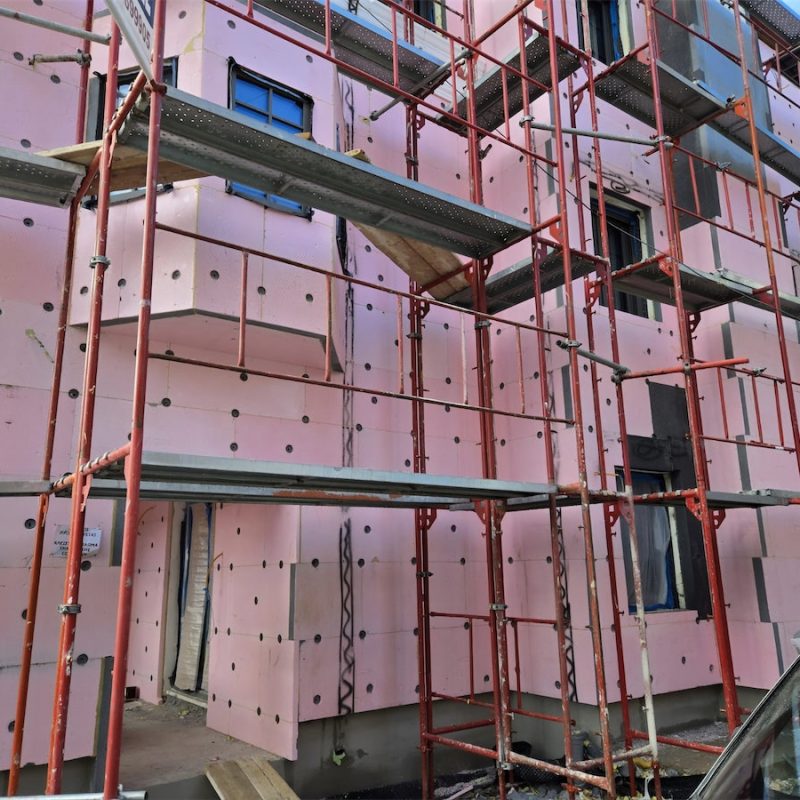

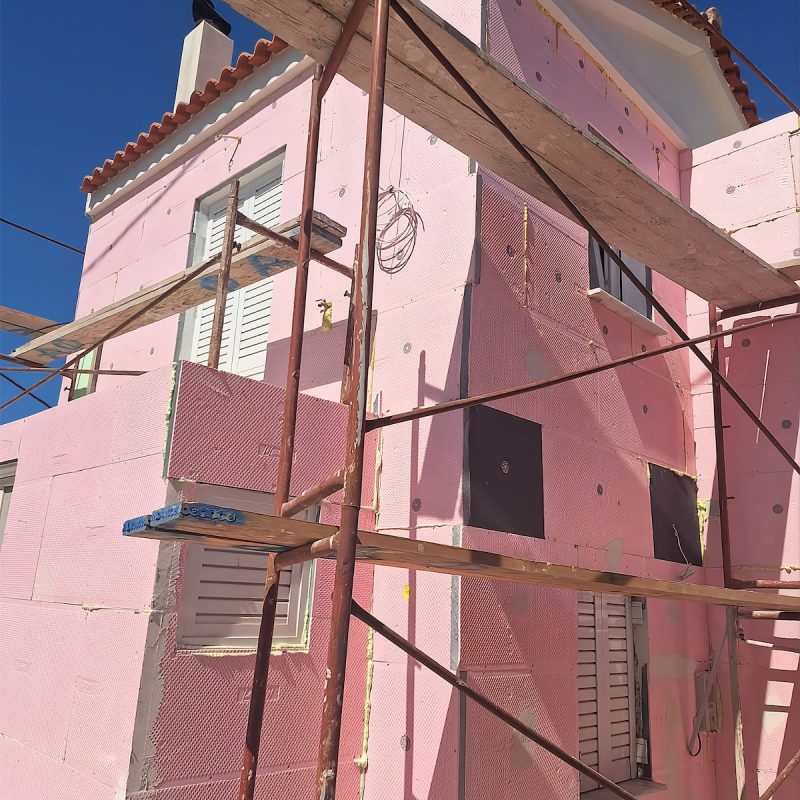

Certified Pressed Graphite and Pink Self-extruded Expanded Polystyrene (EPS) Composite Panel made from renewable raw materials

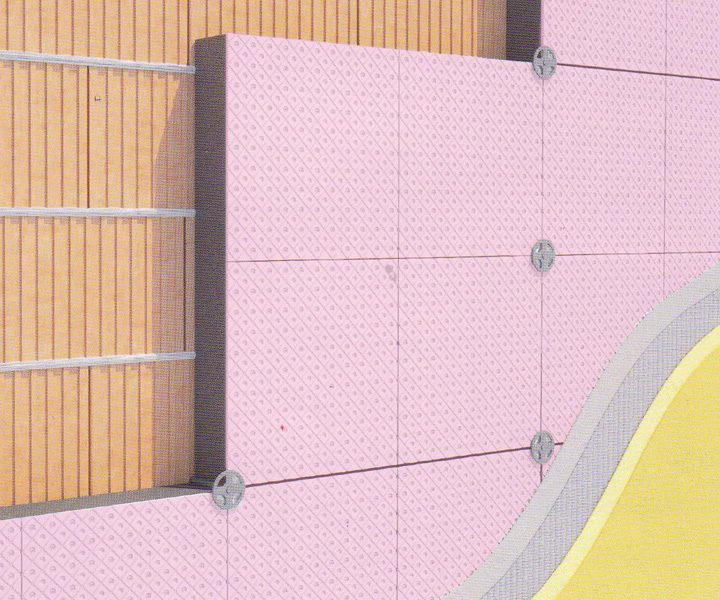

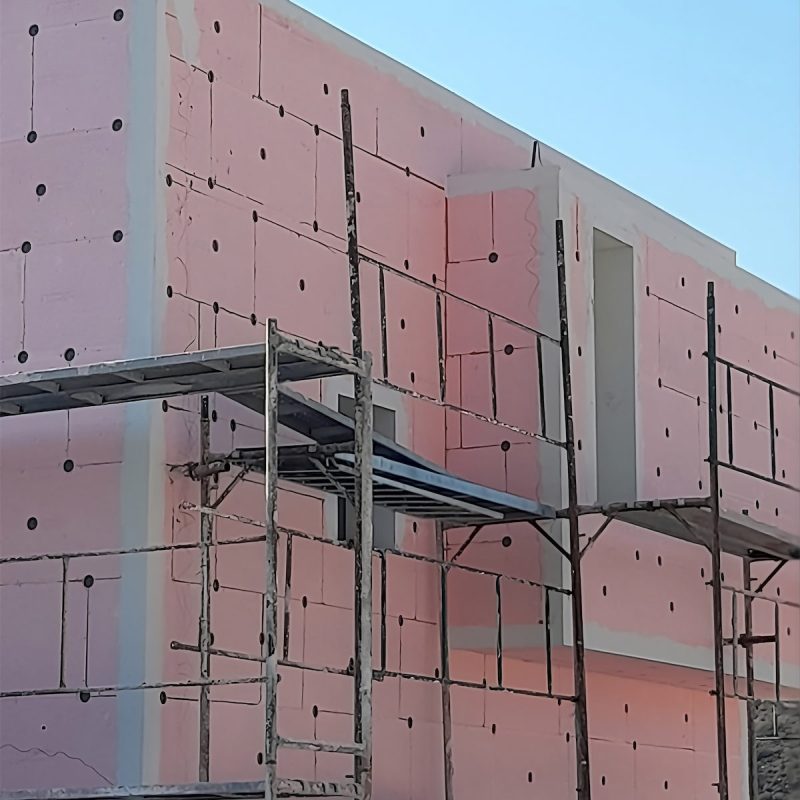

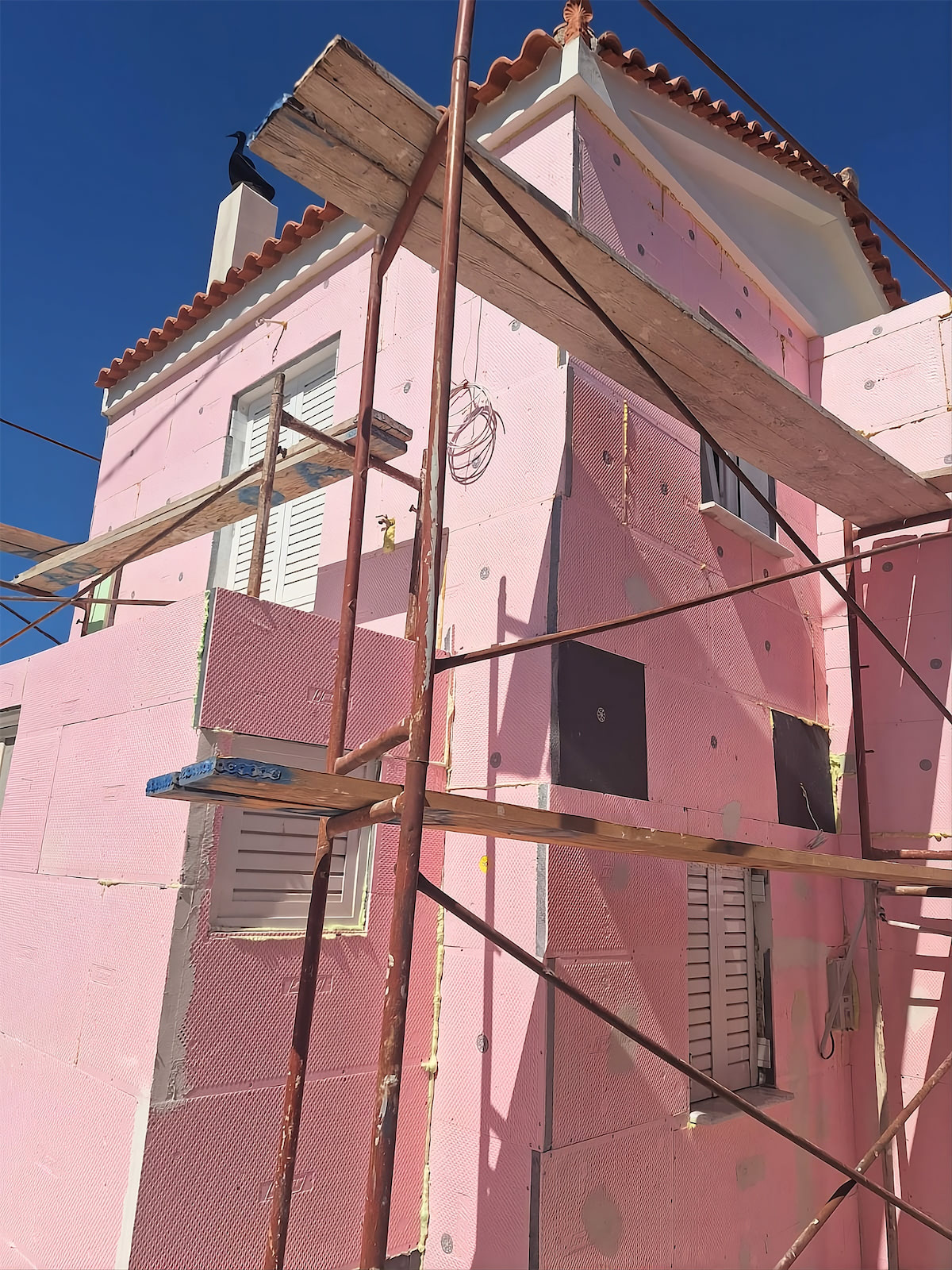

The ipor Low Carbon is a composite hybrid thermal insulation board with a hard skin of pink self-extinguishing expanded polystyrene EPS 200 from A material PERIPOR and a core of graphite self-extruded expanded polystyrene EPS 100 from A material NEOPOR and NEOPOR BMB and is the ideal solution for the application of external thermal insulation of buildings. ipor Low Carbon has a coefficient of thermal conductivity λd = 0,031 W / mK. Its production follows the principles of ISO 9001:2015 and meets the requirements of EN 13163:2015 and EAD 0404 for which it has the corresponding certificates and CE marking. Redcert2 like all materials produced from matter Neopor BMB.
Learn more about the construction of low energy buildings with EPS from the European Expanded Polystyrene Producers Association EUMEPS

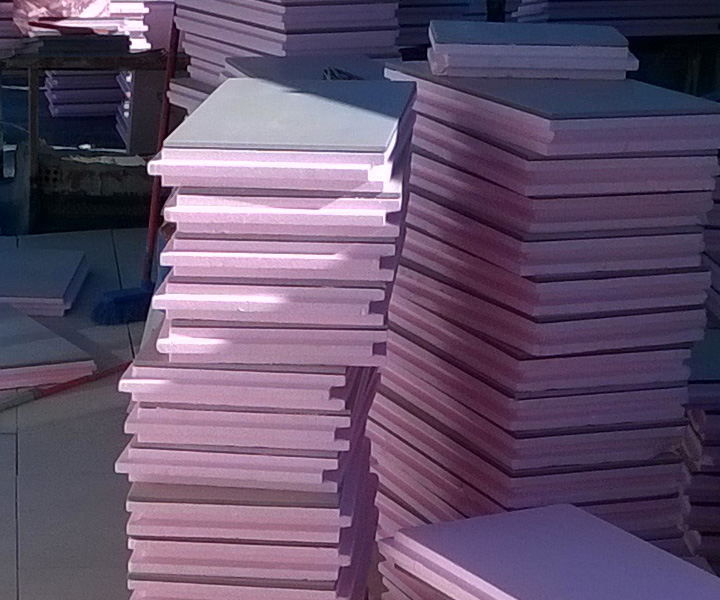

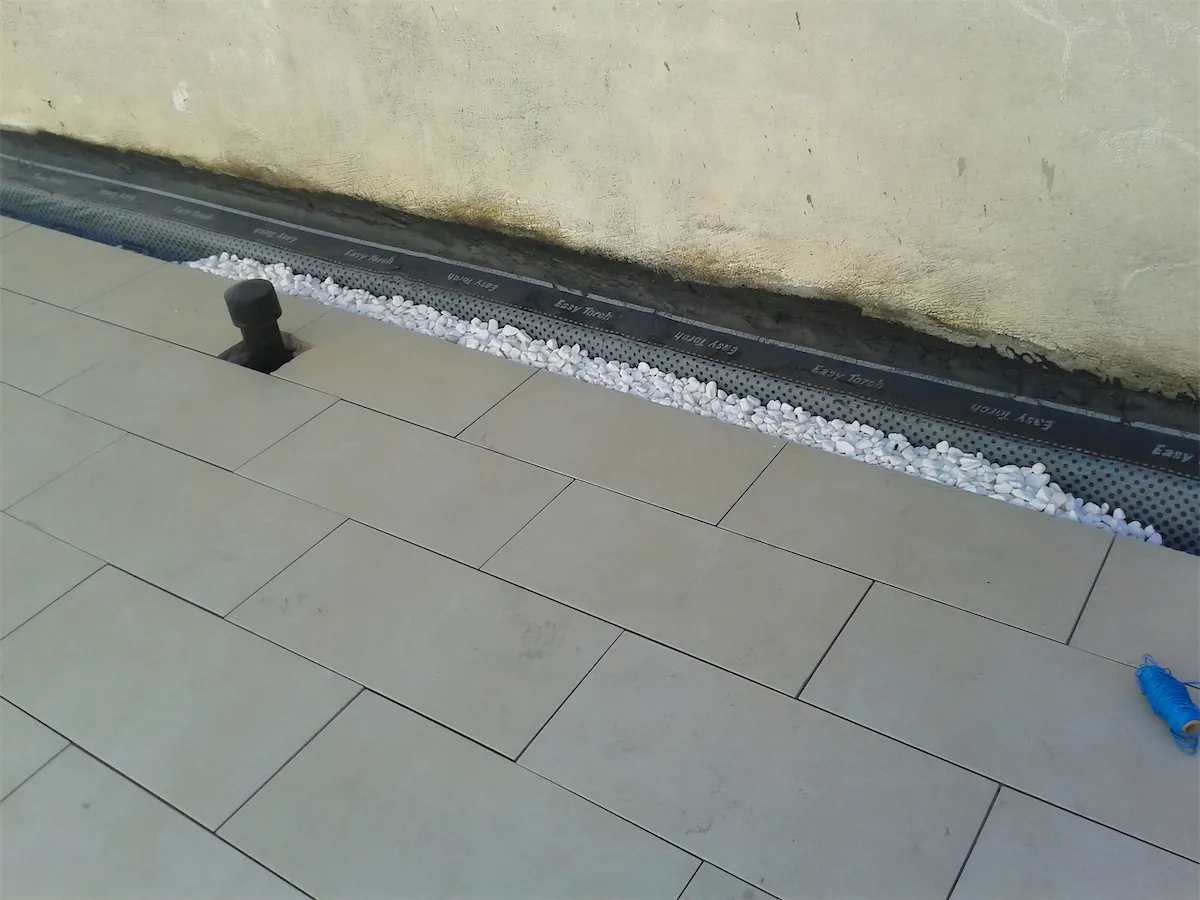

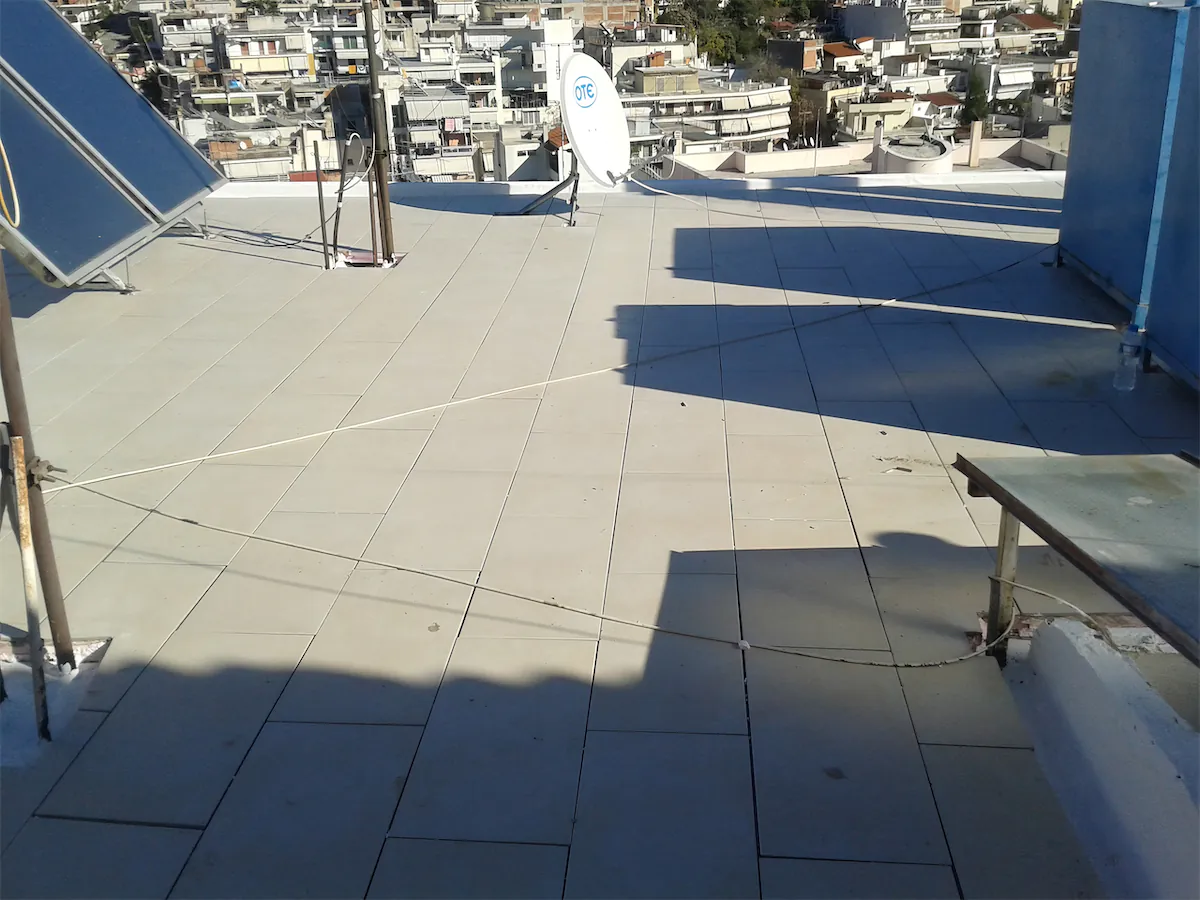

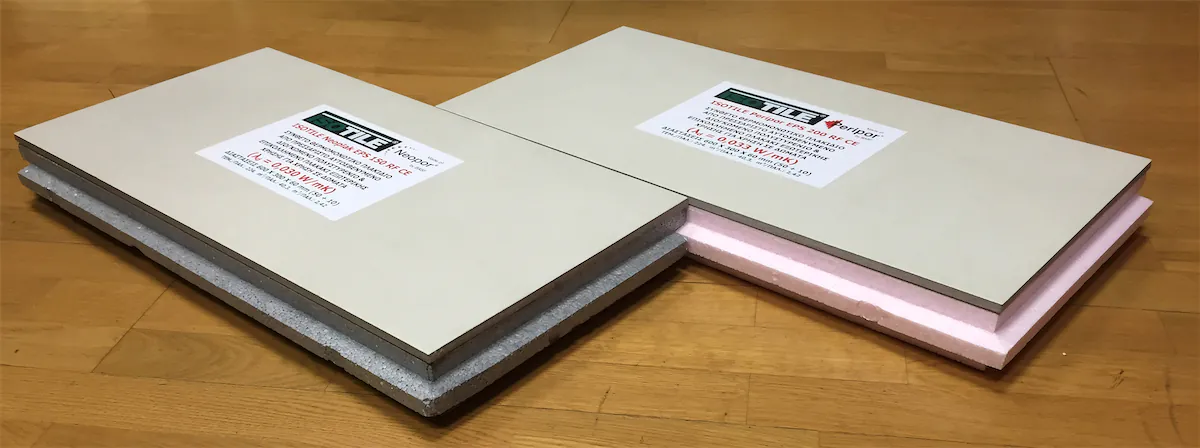

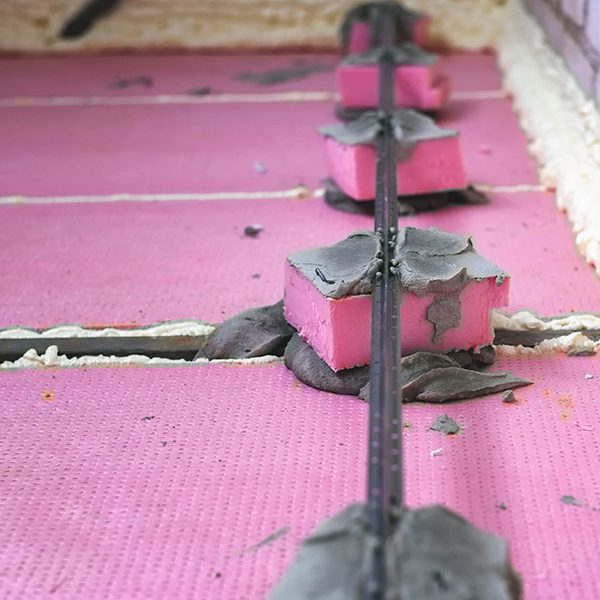

Special Composite Plates of Pink or Grey Pressed Self-extruded Expanded Polystyrene (EPS) for Thermal Insulation and Batted Room Surface
Composite thermal insulation boards with dimensions 30 X 60 X 6cm. They consist of a pressed slab of self-extruded expanded polystyrene EPS 250 5 cm thick and are coated with a special whitish granite slab 1 cm thick. The sides of the slab are ''ramped'' in order to achieve a very good fit, stability and depth of the roof. The slabs are easily and quickly installed and provide the possibility of dismantling and reuse as well as repair in case of failure.
Isotile is made of PERIPOR EPS 250 with thermal conductivity coefficient λd = 0,033 W/mK or NEOPOR PLUS EPS 250 with thermal conductivity coefficient λd = 0,030 W/mK
Coefficient of Thermal Conductivity λd = 0,034 W / mK
Thermal resistance for thickness d=25mm R = 0,735 m2 K/W

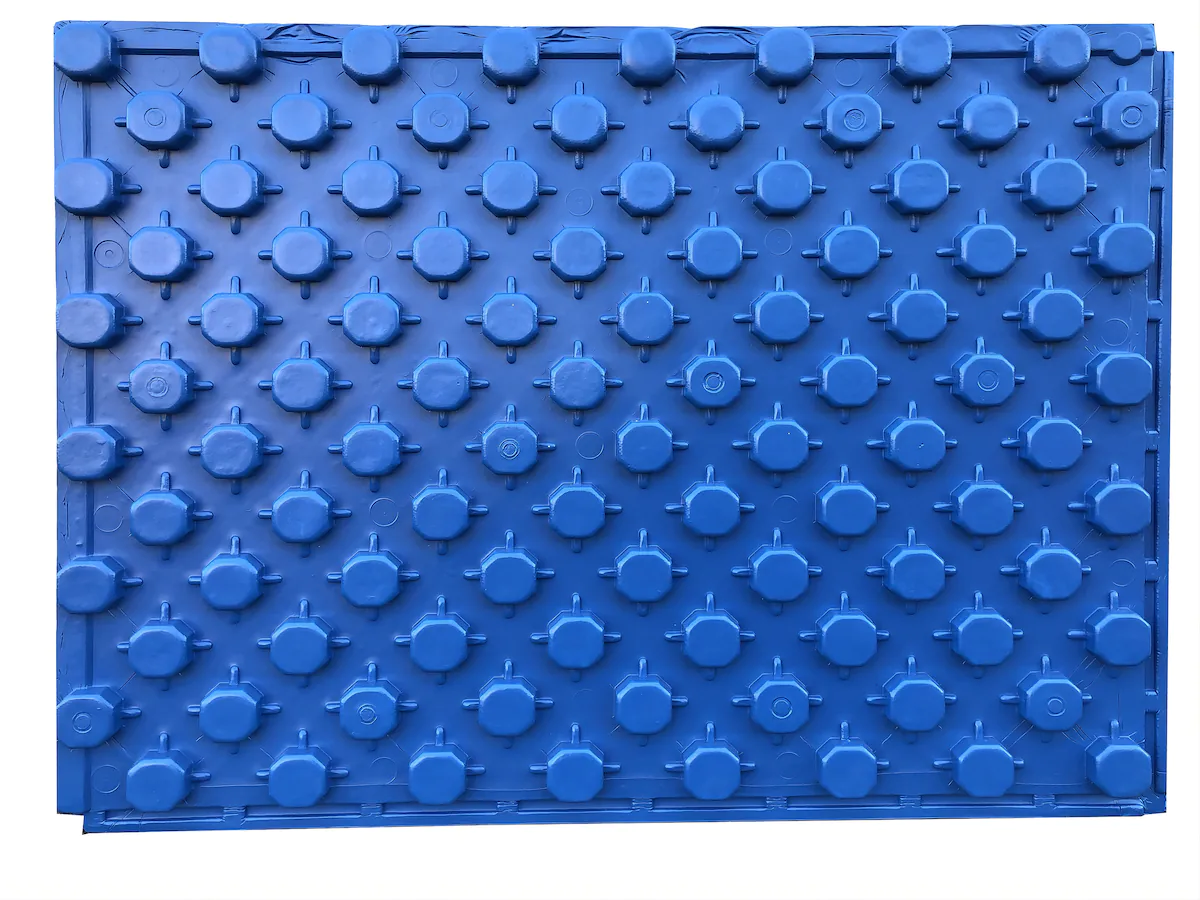

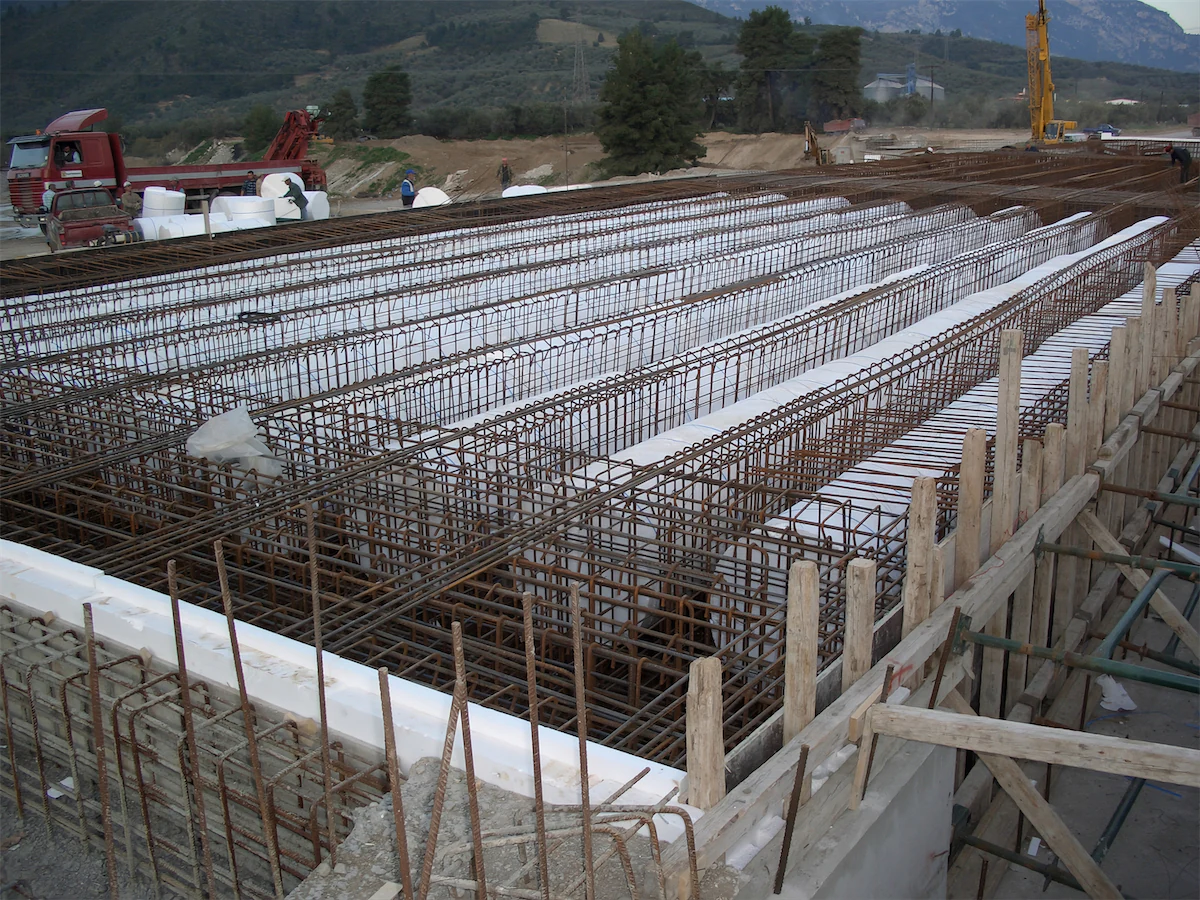

Special high density, moulded, high density, self-extruded expanded polystyrene hard pressed plates, with high compressive strength and very good thermal conductivity coefficient, suitable to be used for underfloor heating plastic pipe sleepers, commonly called floor heating. They are produced in two types with a compressive strength of 150 and 200 kpa for deformation 10%, available with or without vapour barrier, made of polystyrene (PS) film, which ensures zero water absorption. All types of Isofloor are accompanied by a perimeter tape and a polyethylene foam joint tape.

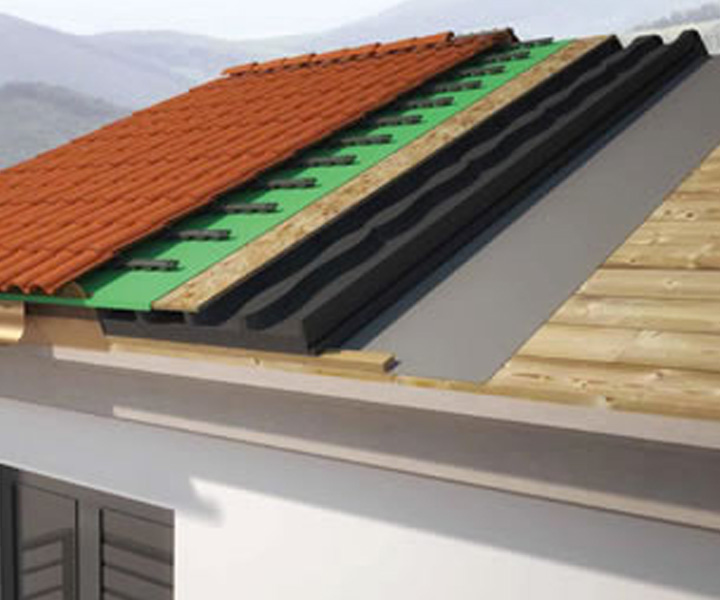

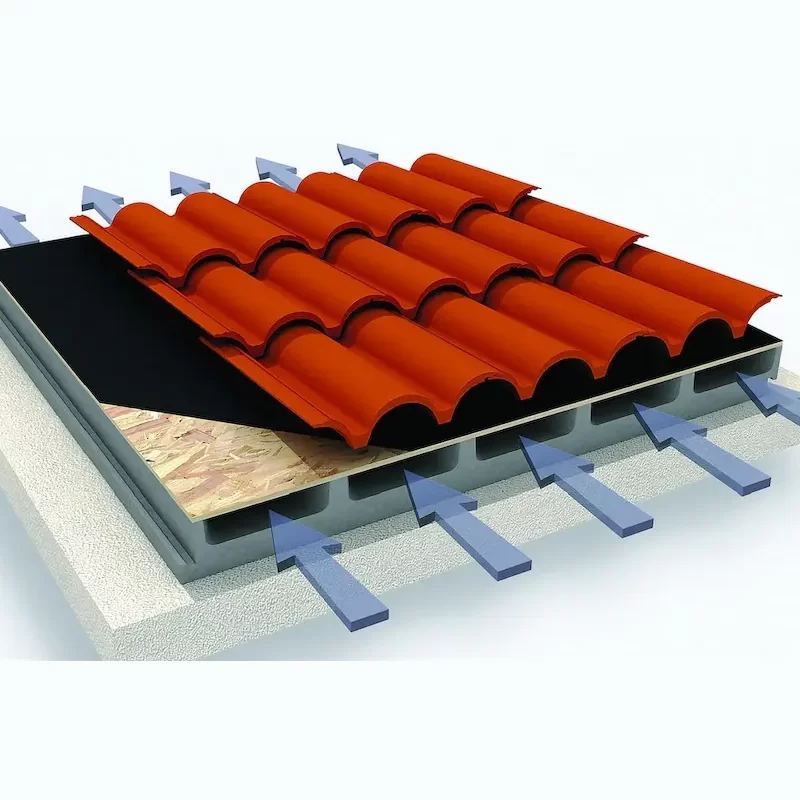

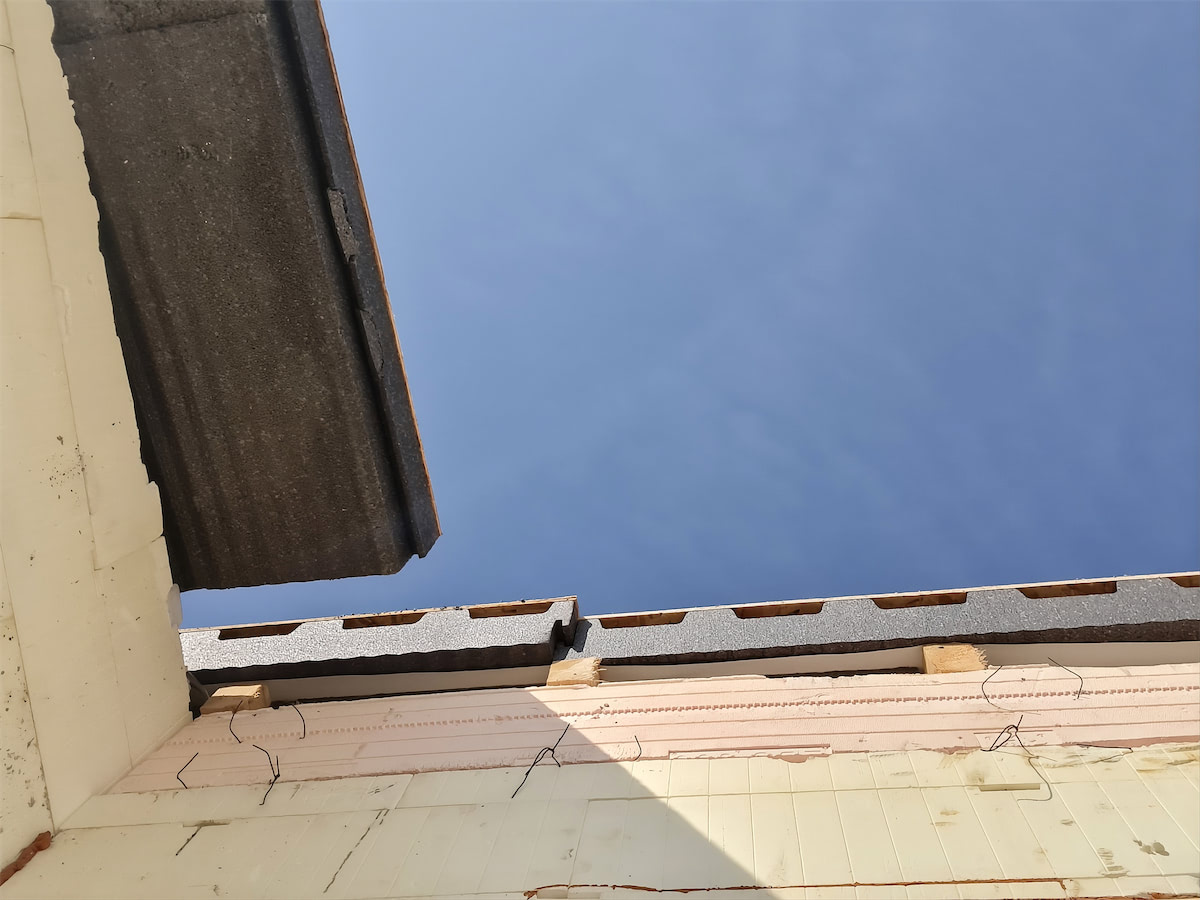

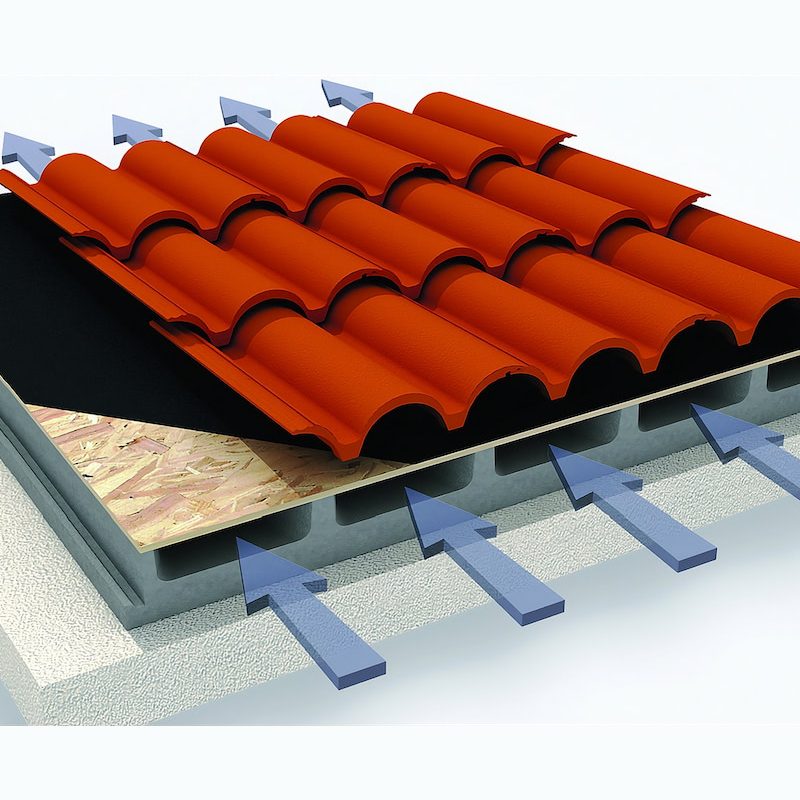

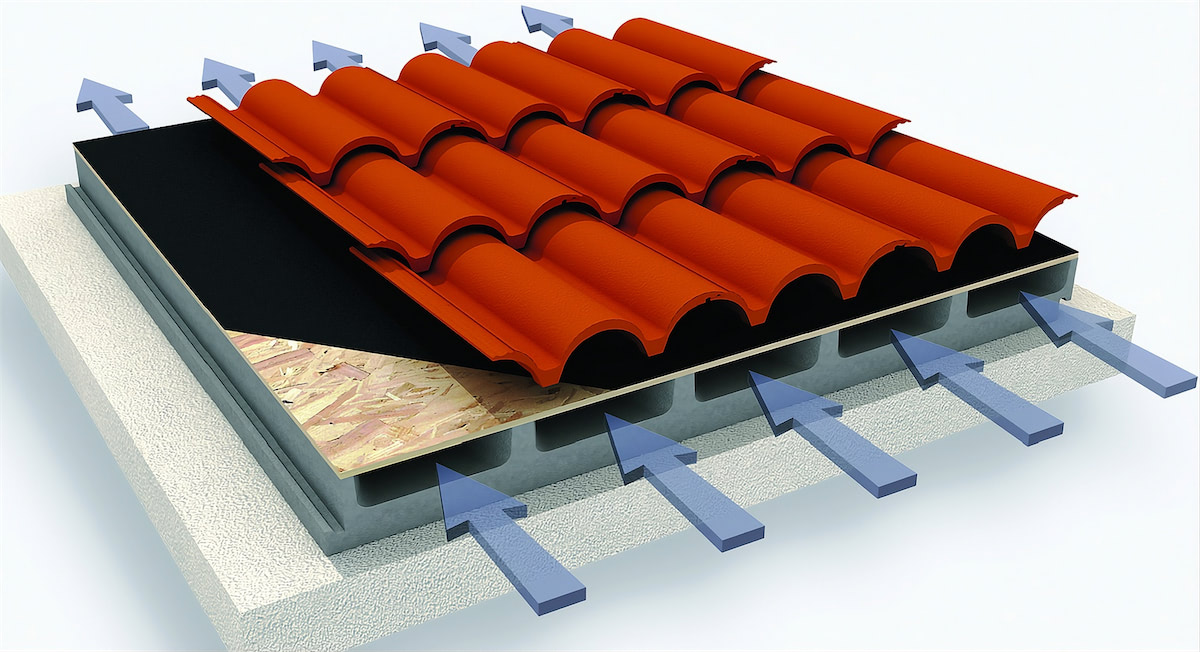

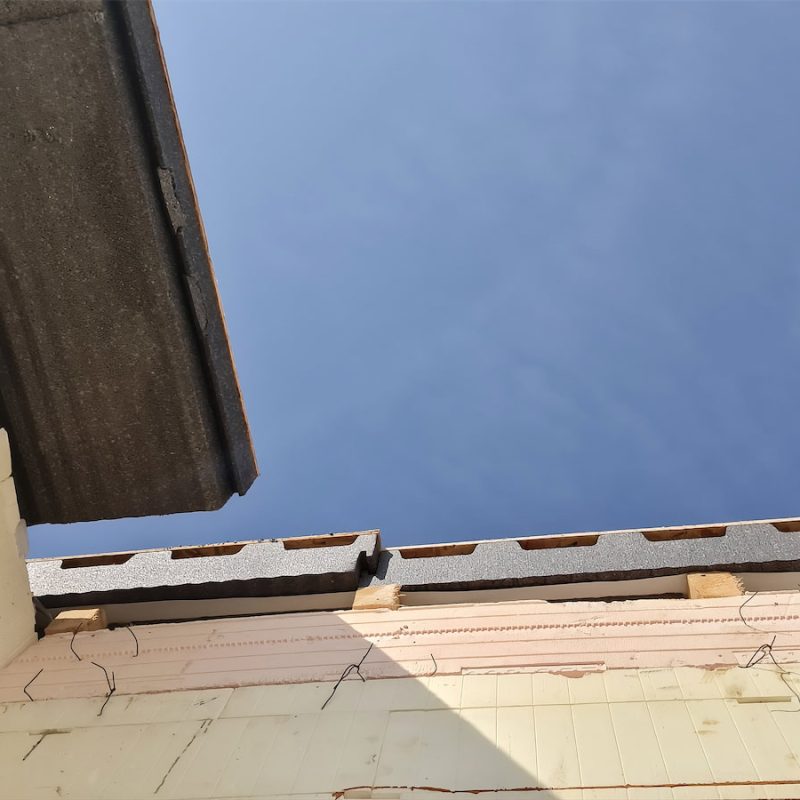

Ideal ventilated roof insulation system made of renewable materials
The Neotetto Air®low carbon is the only insulating roof panel with integrated ventilation channels designed to increase the ventilation efficiency of ventilated roofs and offers excellent roof insulation.
It consists of a specially shaped plate measuring 1,20m x 1,20m made of 50% from the material Neopor BMB and 50% from the conventional Neopor EPS 100 type material, combined with a 9mm thick OSB-3 panel for external use.
Advantages of Neotetto Air® Low Carbon
Large ventilation: the special shape of the ventilation channels improves the efficiency of ventilation, maximises the air intake section and heat extraction from the upper part of the roof which would otherwise be overheated by the summer sun. Even in winter ventilation is beneficial because at high altitudes where snowfall is frequent it allows for uniform snow melting preventing stagnant water that could infiltrate the roof interior.
Overall durability: the Neotetto Air® Low Carbon has excellent resistance to compression. The larger surface area of the EPS ribs, due to their special configuration, increases the load-bearing capacity of the panel, better supporting the OSB, thus reducing the risk of bending when walking when the roof is constructed.
Limits heat loss in winter and maintains a cool environment in summer, allowing for reduced energy consumption for heating and cooling, resulting in significant savings in money
It does not deteriorate over time, unaffected by microorganisms, mould and weather conditions, ensuring health and long-term energy savings
It helps to protect the environment, reduce consumption because it emits small amounts of CO2 (greenhouse effect) into the atmosphere and conserve energy sources
Compatible with any type, pitch and roof cladding
Sturdy, walkable, easy to handle and provides space saving
Easy to install, even by a single person, with simple equipment
It has treads to avoid thermal bridges
The foaming during application is minimal, thanks to the small size of the cloth
It is environmentally friendly, since it is made entirely of recyclable materials
Allows the use of all possible membrane combinations

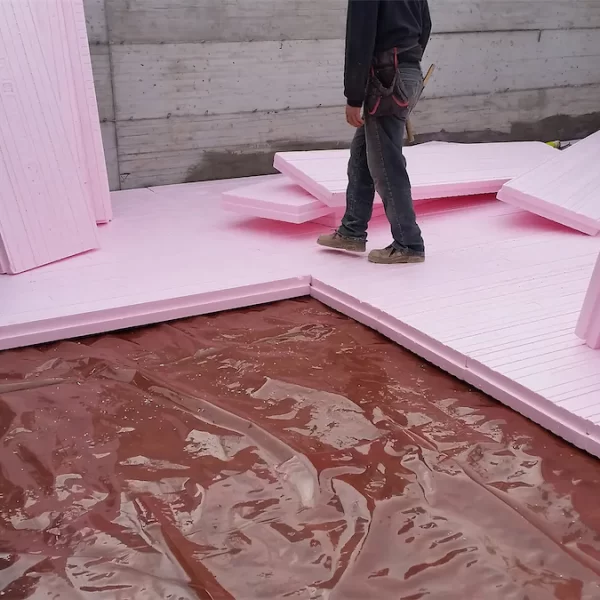

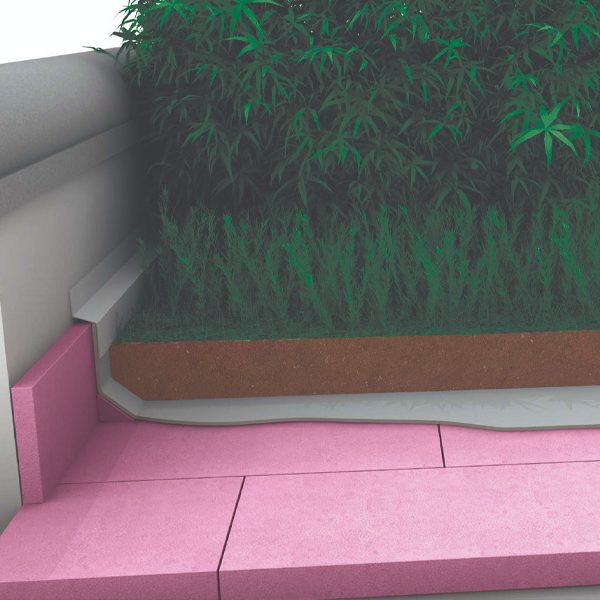

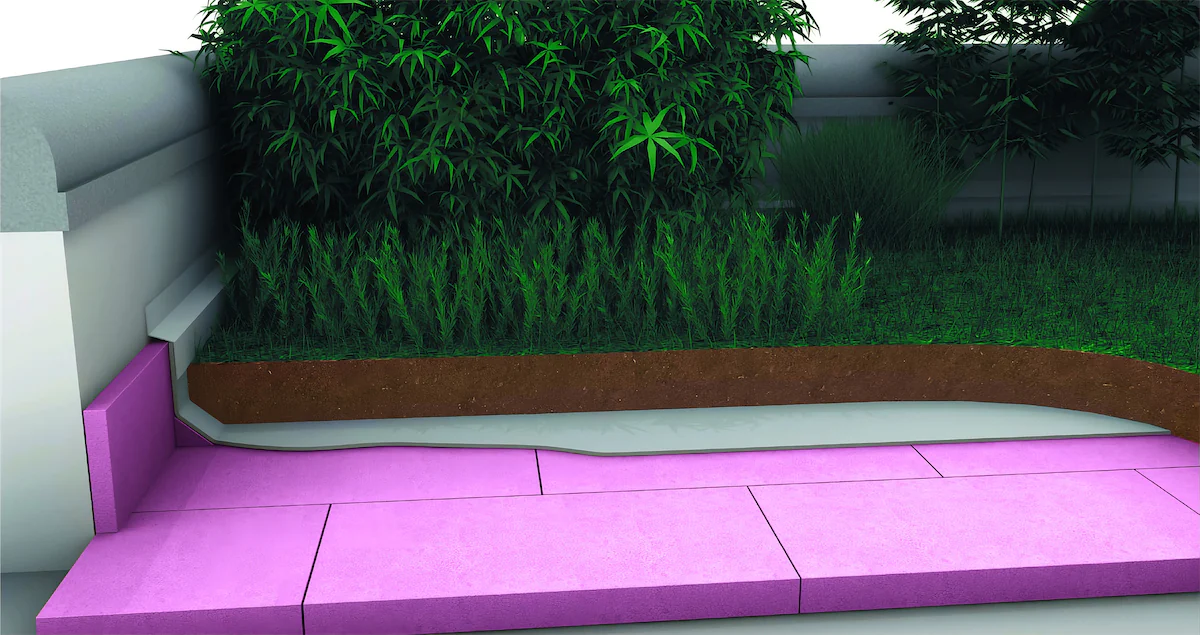

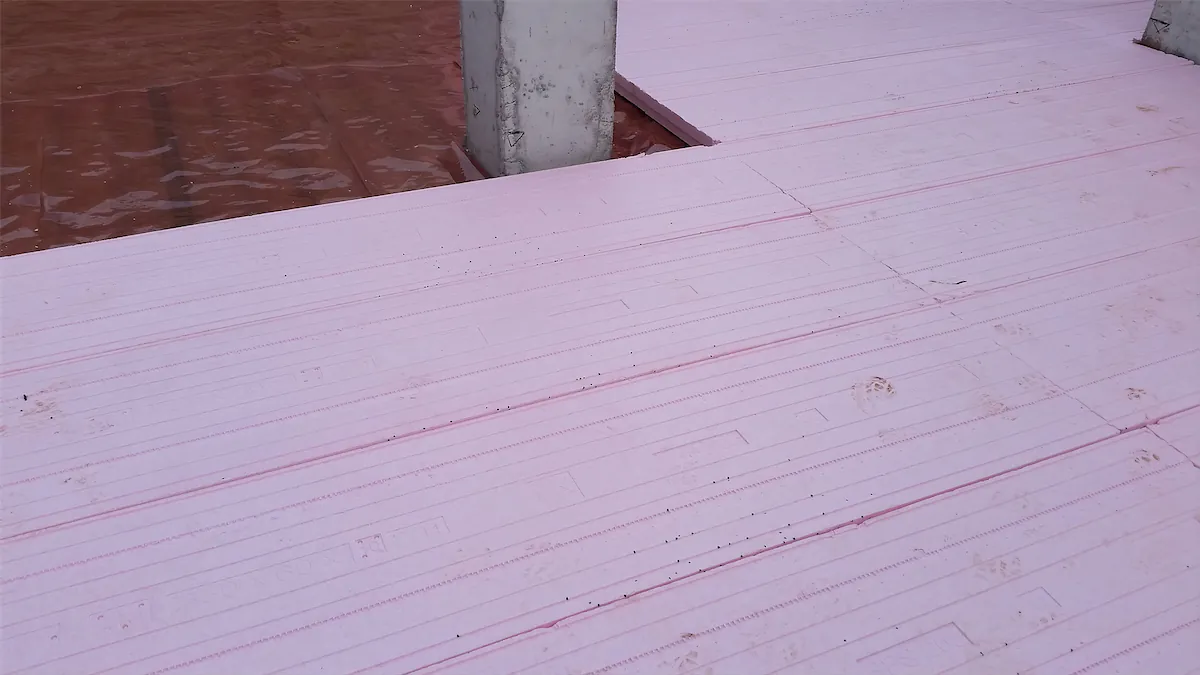

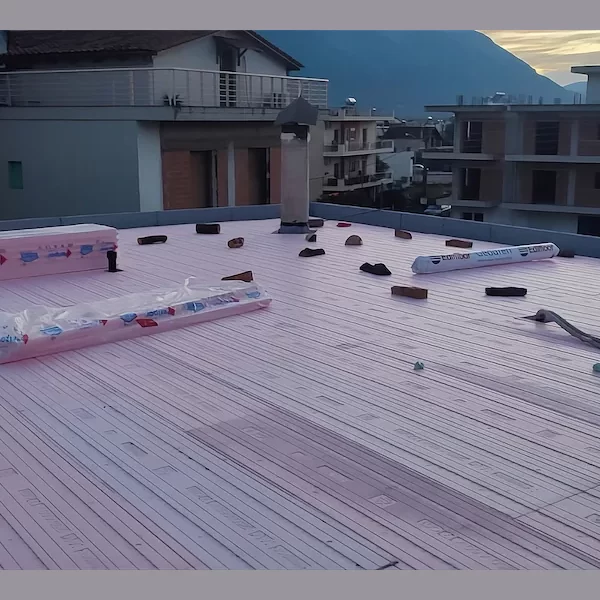

Certified Blue Self-extinguishing Extruded Polystyrene (XPS)
Our company in the context of compliance with the European Directives (CPD) concerning the production and marketing of Building Products decided to launch a new range of insulation products under the name EXPOR and marking CE. These products are produced according to the strictest European standards and are the most advantageous solution where there is a need for very high mechanical resistance of thermal insulation in modern construction.They are produced in dimensions of 2.5 x 0.6m and 1.25 x 0.6m for thermal insulation applications of masonry, formwork, tile roofs, floor insulation and cold rooms.
The thermal conductivity coefficient starts from λd = 0.032 W/mK for 3cm thick slabs and reaches λd = 0.034 W/mK for 10 cm thick slabs at Expor.
IMPLICATIONS:
C/P On Order
# 125 X 60, 200 X 100, 250 X 60, 250 X 100
- common use in EUMEPS Member States
=not possible from the operational requirements
-not required/applied normally unless the properties are explicitly required
1) Where there are load distribution beams 2) when cargo is carried
